14

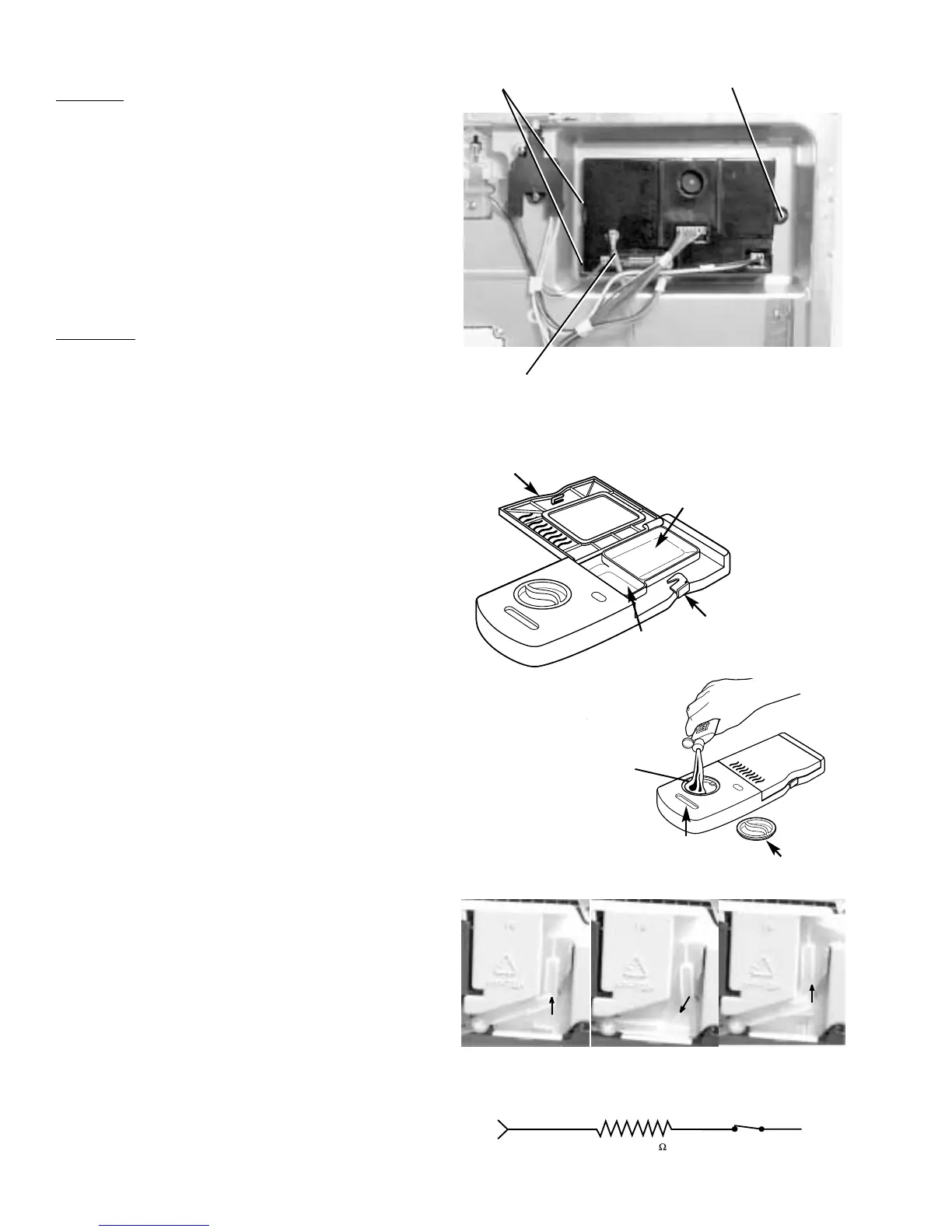

Control Module
Removal
1. Remove the outer door panel
(see
Door Compo-
nents
).
2. Open the door and remove the 3 screws from
the back on the right side of the escutcheon
keypad assembly.
3. Remove 1 screw from the right side of the
control module and slide the module out.
4. Unplug the connectors from the module.
Installation
Note: The gray cable is a factory test cable (see
photo) and may be removed when servicing
control module.
1. Plug connectors into control module.
2. Insert the tabs on the left side of the control
module into the slots on the inner door panel
and secure the module with 1 screw.
3. Install 3 screws on the right side of the escutch-
eon and replace the outer door panel
(see
Door
Components
).
Detergent/Rinse Module
The door panel must be removed to access the
detergent/rinse module. Refer to the
Door Compo-
nent
section.
The detergent/rinse module can be activated using
service mode. Refer to the
Service Mode
chapter.
The detergent/rinse module automatically dis-
penses both the detergent and the rinse agent at
the appropriate times. The module is activated 2
times during a wash cycle.
The first time the module is activated (1), the lever
slides up the right-hand path of the connecting rod.
This action releases the detergent cover. When
deactivated (2), the lever returns down the left-
hand path and comes to rest under the notch in
the center of the connecting rod. At the second
activation (3), the lever lifts the connecting rod by
the notch. This action lifts the rinse dispenser
plunger and releases the rinse agent. When
deactivated, the lever returns to its original starting
position.
Indicator
window
Dispenser cap
Rinse
agent
adjuster
P0003697
1 Screw
2 Tabs
Factory
Test Cable
1
23
L1 Voltage from J2-6
J2-6
RY
WR
1200-2800
DETERGENT MODULE
NO
N
COM
WX
DOOR
INTERLOCK
