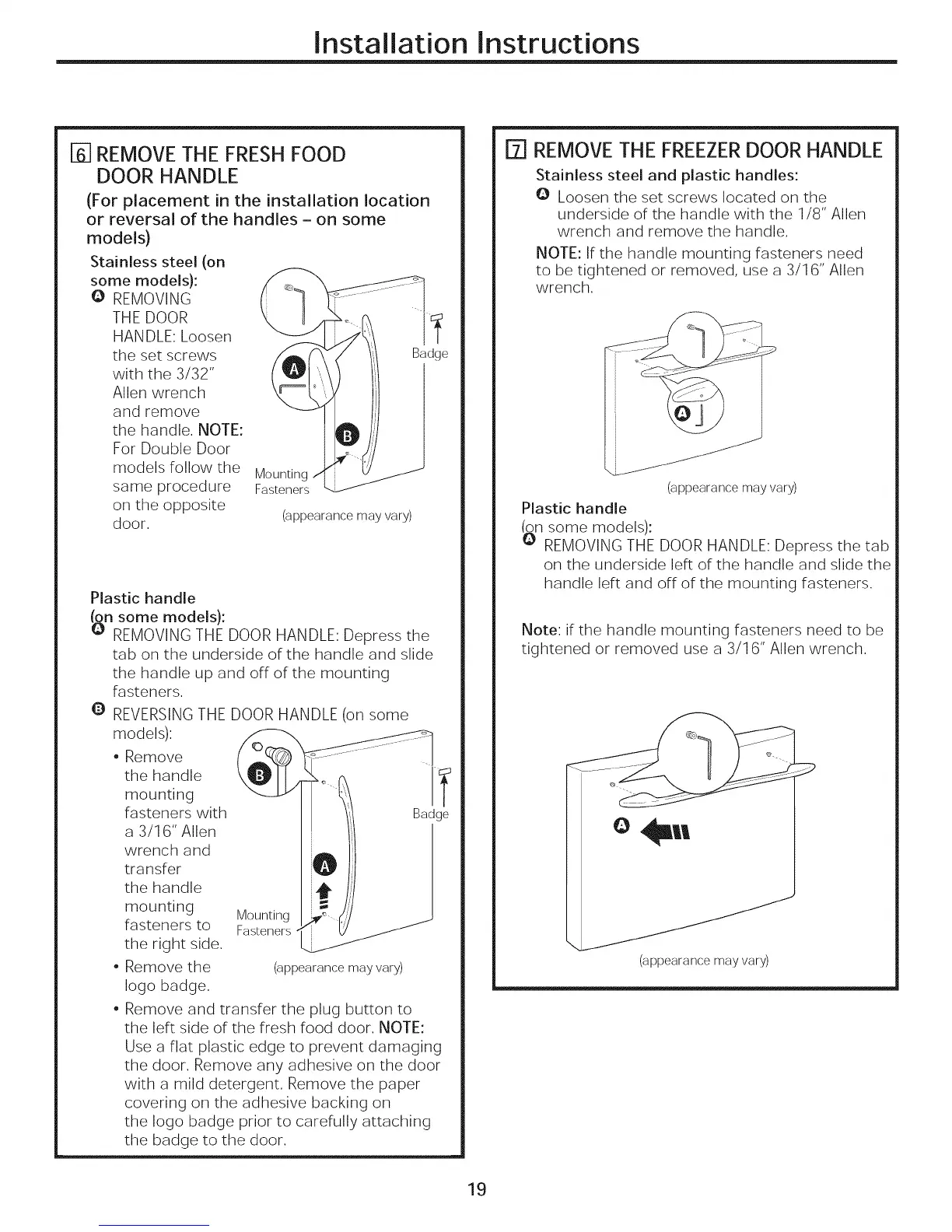

Installation Instructions
[] REMOVE THE FRESHFOOD
DOOR HANDLE
(For placement in the installation location
or reversal of the handles = on some
models}
Stainless steel (on
some models):
@ REMOVING
THE DOOR
HANDLE: Loosen
the set screws Badge
with the 3/32"
Allen wrench
and remove
the handle. NOTE:
For Double Door
models follow the Mounting /
same procedure Fasteners
on the opposite
door. (appearance may vary)
Plastic handle
_n some models):
REMOVING THE DOOR HANDLE: Depress the
tab on the underside of the handle and slide
the handle up and off of the mounting
fasteners.
@ REVERSINGTHE DOOR HANDLE (on some
models):
• Remove
the handle
mounting
fasteners with Badge
a 3/16" Allen
wrench and
transfer
the handle
mounting Mounting
fasteners to Fasteners
the right side.
• Remove the (appearance may vary)
logo badge.
• Remove and transfer the plug button to
the left side of the fresh food door. NOTE:
Use a flat plastic edge to prevent damaging
the door. Remove any adhesive on the door
with a mild detergent. Remove the paper
covering on the adhesive backing on
the logo badge prior to carefully attaching
the badge to the door.
1-71REMOVE THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
O Loosen the set screws located on the
underside of the handle with the 1/8" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 3/16" Allen
wrench.
(appearancemayvary)
Plastic handle
_n some models):
REMOVING THE DOOR HANDLE: Depress the tab
on the underside left of the handle and slide the
handle left and off of the mounting fasteners.
Note: if the handle mounting fasteners need to be
tightened or removed use a 3/16" Allen wrench.
@.
0 llu
/
/
(appearance may vary)
