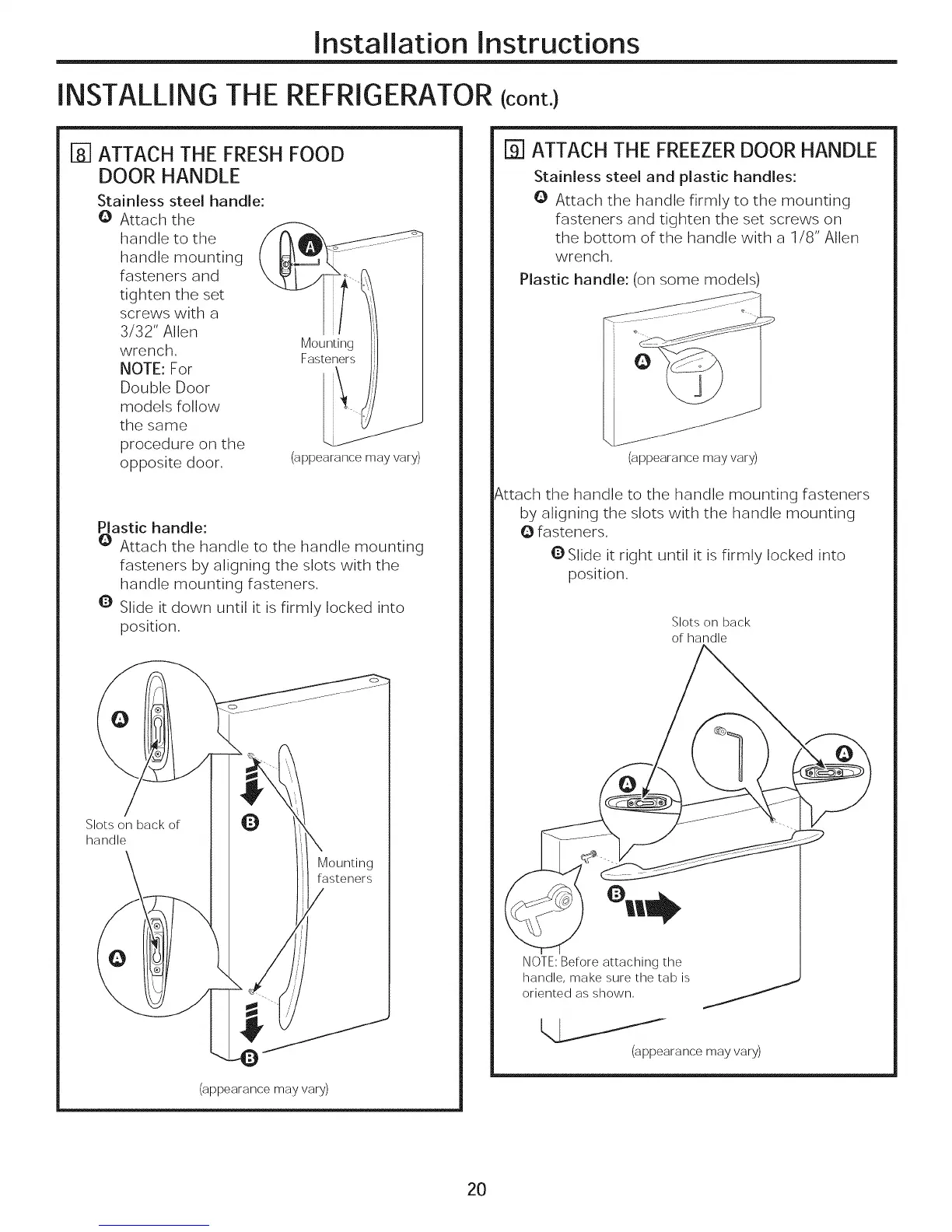

Installation Instructions
INSTALLING THE REFRIGERATOR(cont,)
rs] ATTACH THE FRESHFOOD
DOOR HANDLE
Stainless steel handle:
Q Attach the
handle to the
handle mounting
fasteners and
tighten the set
screws with a
3/32" Allen
wrench.
NOTE: For
Double Door
models follow
the same
procedure on the
opposite door.
Mounting
Fasteners
(appearance may vary)
Plastic handle:
O Attach the handle to the handle mounting
fasteners by aligning the slots with the
handle mounting fasteners.
O Slide it down until it is firmly locked into
position.
Slots on back of
handle
Mounting
fasteners
(appearance may vary)
[] ATTACH THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
@ Attach the handle firmly to the mounting
fasteners and tighten the set screws on
the bottom of the handle with a 1/8" Allen
wrench,
Plastic handle: (on some models
(appearance may vary)
_ttach the handle to the handle mounting fasteners
by aligning the slots with the handle mounting
Q fasteners,
_Slide it right until it is firmly locked into
position.
Slots on back
of handle
NOTE: Before attaching the
handle, make sure the tab is
oriented as shown,
(appearance may vary)
2O
