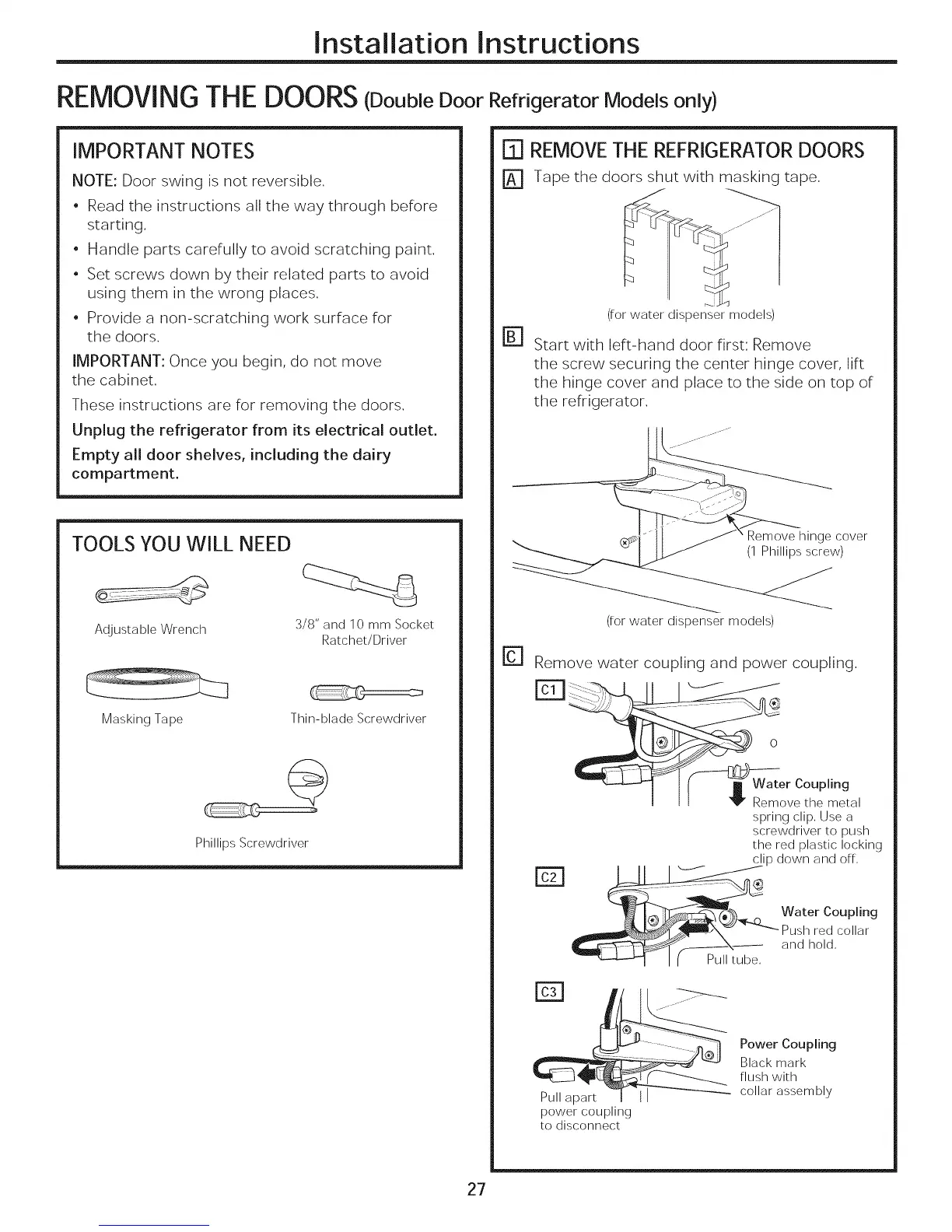

Installation Instructions
REMOVINGTHE DOORS(Double Door Refrigerator Models only)
IMPORTANT NOTES
NOTE: Door swing is not reversible.
• Read the instructions all the way through before
starting,
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid
using them in the wrong places.
• Provide a non-scratching work surface for
the doors,
IMPORTANT: Once you begin, do not move
the cabinet.
These instructions are for removing the doors.
Unplug the refrigerator from its electrical outlet.
Empty all door shelves, including the dairy
compartment.
TOOLS YOU WILL NEED
Adjustable Wrench
3/8" and 10 mm Socket
Ratchet/Driver
Masking Tape
Thin-blade Screwdriver
Phillips Screwdriver
[]] REMOVETHE REFRIGERATORDOORS
[2_] Tape the doors shut with masking tape.
(for water dispenser models)
Start with left-hand door first: Remove
the screw securing the center hinge cover, lift
the hinge cover and place to the side on top of
the refrigerator.
(for water dispenser models)
r61
Remove water coupling and power coupling.
I I I "v" Rernovethe metal
spring clip, Use a
screwdriver to push
the red plastic locking
r_ ,___ip_. down and off,
Water Coupling
____"_-<--Push red collar
___--\_ and hold,
I [ Pull tube,
Pull apart
power coupling
to disconnect
Power Coupling
Black mark
flush with
collar assembly
27
