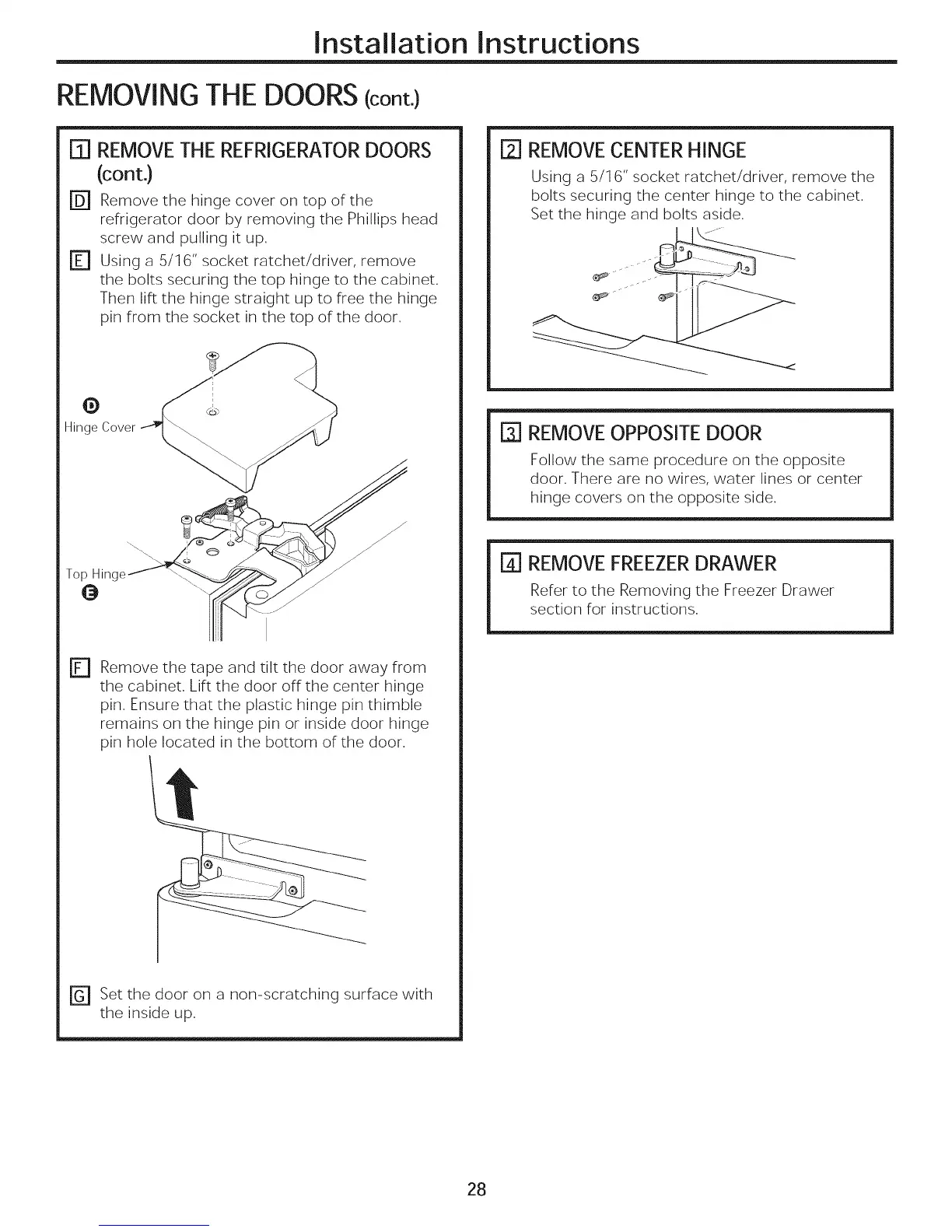

Installation Instructions
REMOVINGTHE DOORS(cont.)
[] REMOVE THE REFRIGERATOR DOORS
(cont.)
r_ Remove the hinge cover on top of the
refrigerator door by removing the Phillips head
screw and pulling it up.
r_ Using a 5/16" socket ratchet/driver, remove
the bolts securing the top hinge to the cabinet.
Then lift the hinge straight up to free the hinge
pin from the socket in the top of the door.
0
Hinge Cover
TopHing
0
FN Remove the tape and tilt the door away from
the cabinet. Lift the door off the center hinge
pin. Ensure that the plastic hinge pin thimble
remains on the hinge pin or inside door hinge
pin hole located in the bottom of the door.
['_ Set the door on a non-scratching surface with
the inside up.
[Z] REMOVECENTERHINGE
Using a 5/16" socket ratchet/driver, remove the
bolts securing the center hinge to the cabinet.
Set the hinge and bolts aside.
[_] REMOVEOPPOSITEDOOR
Follow the same procedure on the opposite
door. There are no wires, water lines or center
hinge covers on the opposite side.
I-Z1REMOVE FREEZER DRAWER
Refer to the Removing the Freezer Drawer
section for instructions.
28
