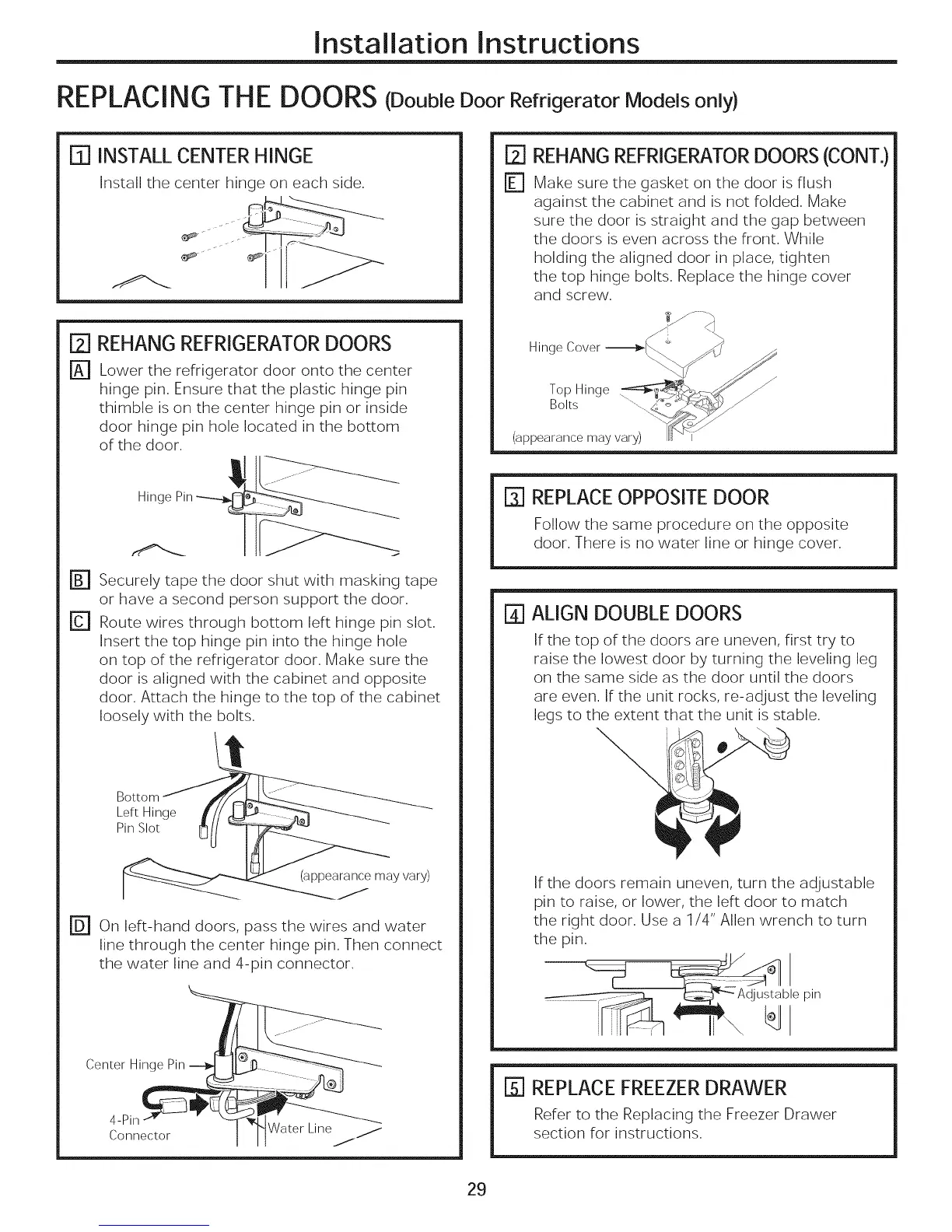

Installation Instructions
REPLACING THE DOORS (Double Door Refrigerator Models only)
FT1INSTALL CENTERHINGE
Install the center hinge on each side.
REHANG REFRIGERATOR DOORS
[A] Lower the refrigerator door onto the center
hinge pin. Ensure that the plastic hinge pin
thimble is on the center hinge pin or inside
door hinge pin hole located in the bottom
of the door.
[]
r61
Securely tape the door shut with masking tape
or have a second person support the door.
Route wires through bottom left hinge pin slot.
Insert the top hinge pin into the hinge hole
on top of the refrigerator door. Make sure the
door is aligned with the cabinet and opposite
door. Attach the hinge to the top of the cabinet
loosely with the bolts.
!
Bottom
Left Hinge
Pin Slot
(appearance may vary)
r_ On left-hand doors, pass the wires and water
line through the center hinge pin. Then connect
the water line and 4-pin connector.
Center Hinge Pin
4-Pin
Connector Water Line j
[]] REHANG REFRIGERATORDOORS (CONT.)
r_ Make sure the gasket on the door is flush
against the cabinet and is not folded. Make
sure the door is straight and the gap between
the doors is even across the front. While
holding the aligned door in place, tighten
the top hinge bolts. Replace the hinge cover
and screw.
TopHnge
FB1REPLACE OPPOSITE DOOR
Follow the same procedure on the opposite
door. There is no water line or hinge cover.
F41ALIGN DOUBLE DOORS
If the top of the doors are uneven, first try to
raise the lowest door by turning the leveling leg
on the same side as the door until the doors
are even. If the unit rocks, re-adjust the leveling
legs to the extent that the unit is stable.
If the doors remain uneven, turn the adjustable
pin to raise, or lower, the left door to match
the right door. Use a 1/4" Allen wrench to turn
the pin.
F51REPLACE FREEZER DRAWER
Refer to the Replacing the Freezer Drawer
section for instructions.
