Installation Instructions
STEP 11 – SECURE DISHWASHER TO
CABINET
The dishwasher must be secured to the countertop.
•Position the dishwasher so that the tub flange aligns
with the front face of the cabinet frame.
IMPORTANT -
Check to be sure the
dishwasher is centered in the opening and there is no
interference with adjacent cabinets when opening or
closing the door.
•Fasten the dishwasher to the underside of the
countertop with the 2 Phillips screws provided.
IMPORTANT -
Drive screws straight and
flush. Protruding screw heads will scratch the top of the
control panel and can interfere with door closing.

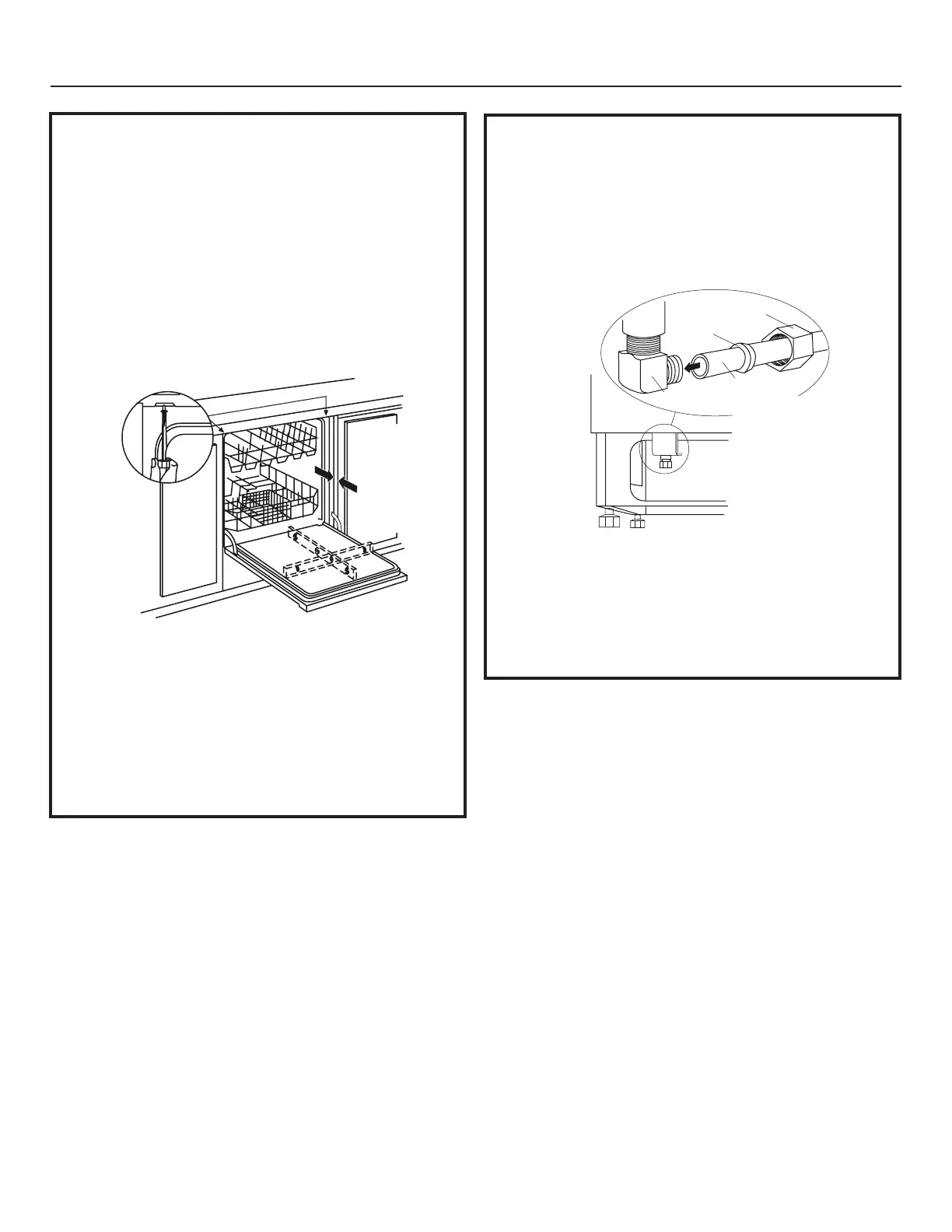

Figure 18
Align Tub
Flange
to Front
Face of
Cabinet
Frame
STEP 12 – CONNECT WATER SUPPLY
Connect water supply line to 90° elbow.
•Slide compression nut, then ferrule over end of water line.
•Insert water line Into 90 elbow .
•Slide ferrule against elbow and secure with compression
nut.
IMPORTANT -
Check to be sure
that door spring does not rub or contact the fill hose or
water supply line. Test by opening and closing the door.
Re-route the lines if a rubbing noise or interference
occurs.
Figure 19
Ferrule
90 Elbow
Compression Nut
Hot Water
Supply Line
90 Elbow
