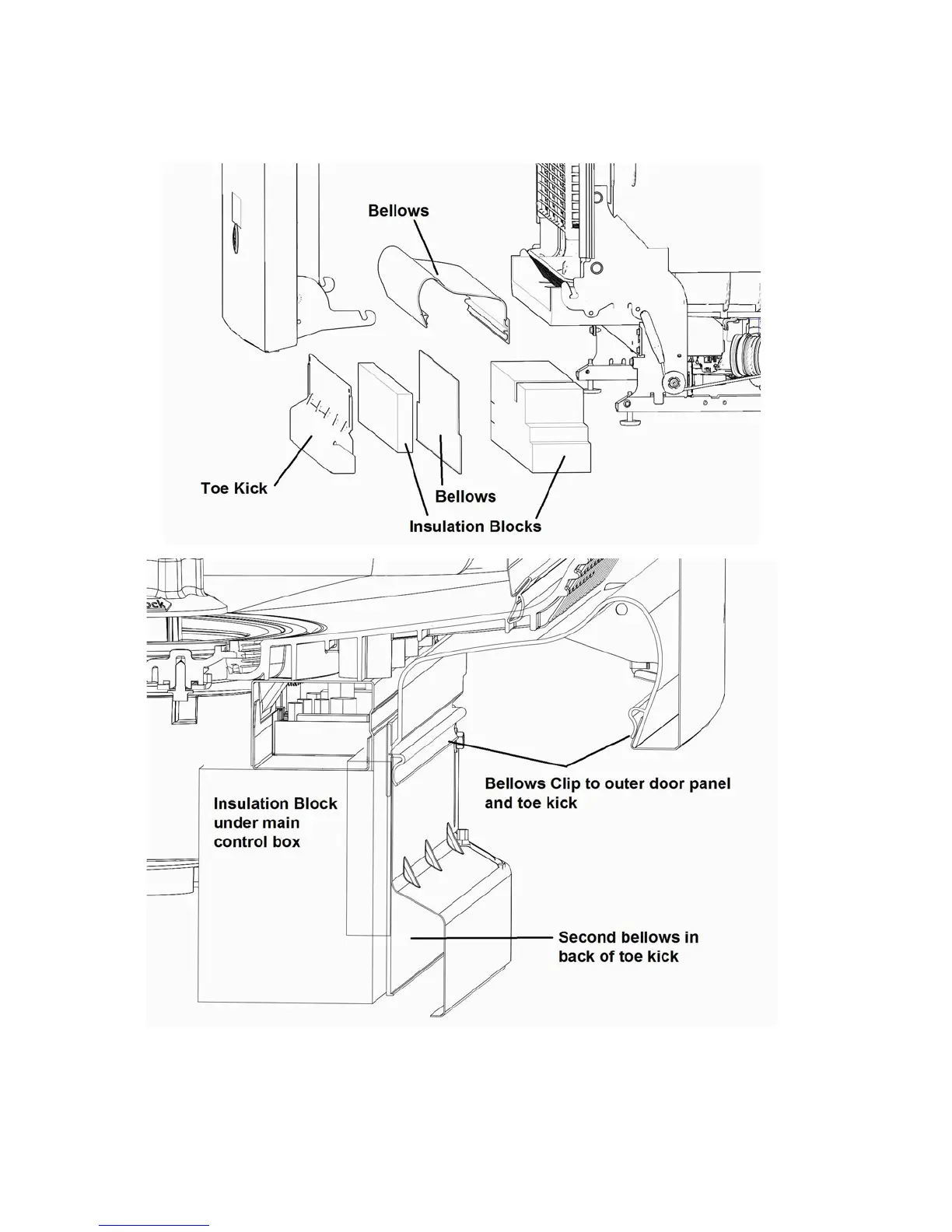

*'7+*'
6RXQG
LQVXODWLRQ
*'7+*'
KDV
DQ
XSJUDGHG
VRXQG
SDFNDJH
,W
LQFOXGHV
D
VRXQG
EDI
IOH
XQGHU
WKH
PDLQ
FRQWURO
ER[
DQG
D
EHOORZV
DW
WKH
ERWWRP
RI
WKH
GRRU
H[WHQGLQJ
WR
WKH
UHDU
RI
WKH
WRH
NLFN
%RWK
PXVW
EH
LQ
SODFH
IRU
WKH
XSJUDGH
WR
EH
HIIHFWLYH
9
11
Table of Contents
Safety Information
2
Table of Contents
3
Safety Requirements
5
Nomenclature
6
Serial Number
6
Features
7
Product Specifications
9
Installation
9
GDT550HGD Sound Insulation
10
Install Sound Insulation
11
AC Voltage
12
DC Voltage
12
Tools Needed
12
Operation
13
Control Features
13
Cycle Chart
16
Cycle Algorithm Comparisons
16
Auto Hot Start
17
Cycle Times
17
Maximum Cycle Times for Plastic Tub
17
Cycle Temperatures
18
Troubleshooting
19
Diagnostic Error Code Display Mode
19
Service Mode
19
Main Control Service LED
19
Displaying Diagnostic Error Codes
20
Flashing Lights
21
Exiting Service Mode
21
Poor Washability
22
Water on Floor
22
Noise
23
Dishwasher Does Not Start
23
Service LED
24
Component Locator Views
25
Front View
25
Side View
26
Bottom View
27
Sump Components, Top
28
Sump Components, Bottom
28
Tub and Structure
29
Toe Kick
29
Junction Box
29
Leveling Legs
30
Upper Rack
31
Lower Rack
32
Reversible and Fold down Tines
32
Door Springs and Hinges
33
Tub Gasket and Tub Trim
34
Door
34
To Remove Door
34
Door Gasket
37
Detergent Module
38
To Remove the Detergent Module
38
To Diagnose GDF510 Detergent Module
38
Front Control Door Console
38
Top Control Door Control Panel
39
Pocket Handle
39
Bar Handle
40
Latch Strike
40
UI Board
41
SS Door Attach Strips
41
Front Control
41
Main Control Board
42
Top Control
42
UI Control Replacement
42
To Access Main Control Board
43
To Diagnose Main Control Board
44
Sump Module
44
To Remove the Sump Module
44
Latch Assembly
47
Latch Switch Diagnosis
47
Door Alignment
47
Wire Routing
47
Fill System
48
Fill Operation
48
Fill Strip Circuits
48
Proper Water Level
48
Fill Diagnostics
49
Thermistor
49
Strip Circuit
49
Fill Flood/Float Switch Removal
50
Fill Funnel and Hose
51
Fill Water Valve
51
Circulation System
52
Circulation Operation
52
Circulation Specifications
52
Circulation Diagnostics
53
Circulation Strip Circuits
53
Circulation Motor Pump Assembly
53
Circulation Turbidity Sensor
55
Filters
55
Turbidity Sensor Calibration
55
Turbidity Sensor Diagnostics
55
Upper Spray Arm
56
Middle Spray Arm
57
Middle Conduit
57
Lower Spray Arm
57
Circulation Diverter
57
Circulation Conduit Assembly
59
To Remove the Diverter
59
Drain System
61
Drain Operation
61
Drain Cycle Algorithm
61
Drain Strip Circuits
62
Drain Pump
62
Drain Diagnostics
63
Dry System
64
Dry Cycle Operation
64
Dry Cycle Specifications
64
Dry Components
64
Dry Cycle Diagnostics
65
Heating Element
65
Heater Not Working
65
Dry Cycle Strip Circuits
66
Tub TCO
66
Service Control Replacement
67
Connectors and Pin Locations
69
Main Board (Top)
69
Main Board (Bottom)
69
Schematics
70
