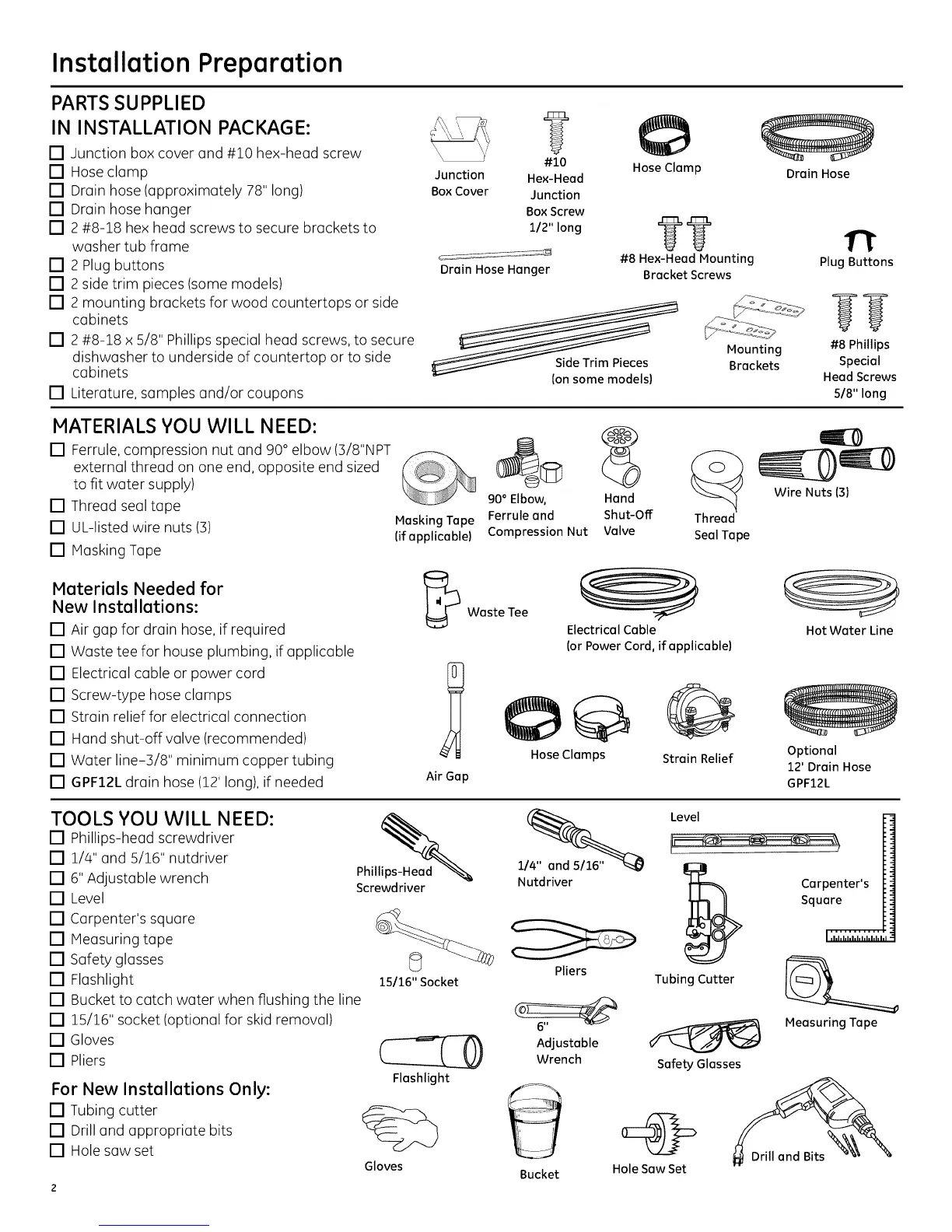

Installation Preparation
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
[] Junction box cover and #10 hex-head screw
[] Hose clamp
[] Drain hose (approximately 78" long)
[] Drain hose hanger
[] 2 #8-18 hex head screws to secure brackets to
washer tub frame
[] 2 Plug buttons
[] 2 side trim pieces (some models)
[] 2 mounting brackets for wood countertops or side
cabinets
[] 2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
[] Literature, samples and/or coupons
Junction
Box Cover
?
#10
Hex-Head
Junction
Box Screw
112" long
Drain Hose Hanger
Hose Clamp
#8 Hex-Head Mounting
Bracket Screws
Ion some models)
Mounting
Brackets
Drain Hose
n
Plug Buttons
#8 Phillips
Special
Head Screws
5/8" long
MATERIALS YOU WILL NEED:
[] Ferrule, compression nut and 90° elbow (3/8"NPT
external thread on one end, opposite end sized
to fit water supply)
[] Thread sealtape
[] UL-listed wire nuts (:3)
[] Masking Tape
Materials Needed for
New Installations:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord
[] Screw-type hose clamps
[] Strain relief for electrical connection
[] Hand shut-off valve (recommended)
[] Water line-3/8" minimum copper tubing
[] GPF12Ldrain hose (12' long), if needed
Masking Tape
(if applicable)
Air Gap
90 ° Elbow, Hand
Ferrule and Shut-Off Thread
Compression Nut Valve Seal Tape
Electrical Cable
(or Power Cord, if applicable)
Waste Tee
Hose Clamps Strain Relief
Wire Nuts (3)
Hot Water Line
Optional
12' Drain Hose
GPF12L
TOOLS YOU WILL NEED:
[] Phillips-head screwdriver
[] 1/4" and 5/16" nutdriver
[] 6" Adjustable wrench
[] Level
[] Carpenter's square
[] Measuring tape
[] Safety glasses
[] Flashlight
[] Bucket to catch water when flushing the line
[] 15/16" socket (optional for skid removal)
[] Gloves
[] Pliers
For New Installations Only:
[] Tubing cutter
[] Drill and appropriate bits
[] Hole saw set
Phill_
Screwdriver
15/16" Socket
Flashlight
Gloves
Nutdriver
Pliers
Adjustable
Wrench
Bucket
Level
Tubing Cutter
Safety Glasses
Hole Saw Set
Carpenter's
Square
Measuring Tape
To Next Page
