LOCK MOUNT RING
Turn the mount ring slowly to the right until it
locks up tight. Hopper projections must be to the
extreme left of the mounting slots. If the mount
ring is hard to turn, you may add a small amount
of petroleum jelly or liquid soap to the hopper
projection. Run water and check for leaks.
3
Installation Instructions
Hopper Projection in
“Supported” Position
Hopper Projection
in “Locked” Position
Mount
Ring
Locking Detail
Check the unit for leaks 24 hours after installation
and first operation.
CHECK FOR LEAKS
4

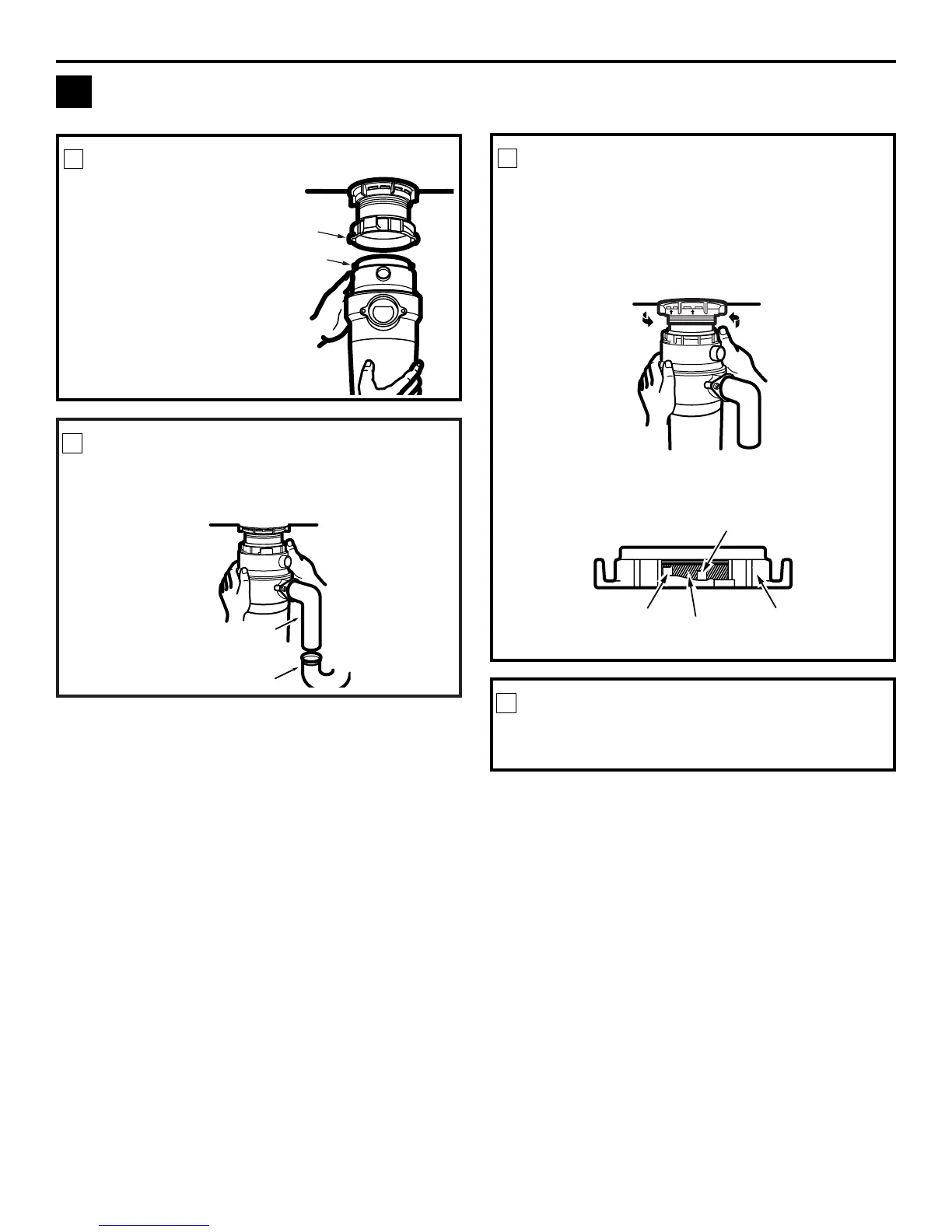

CONNECTING DISPOSER TO SINK FLANGE
4
Line up the disposer
under the sink flange.
Guide the hopper
projections into the
mount ring slots. Turn
the mount ring about
1/4″ to the right so
that the disposer is
temporarily supported.
1
Turn the mount ring and the disposer until the
disposer discharge elbow lines up with the outlet
pipe (see page 8).
LINE UP WITH OUTLET PIPE
2
Mount
Ring Slot
Hopper
Projection
Discharge
Elbow
Outlet Pipe
ATTACH TO SINK FLANGE
Mounting Slot
To Next Page
