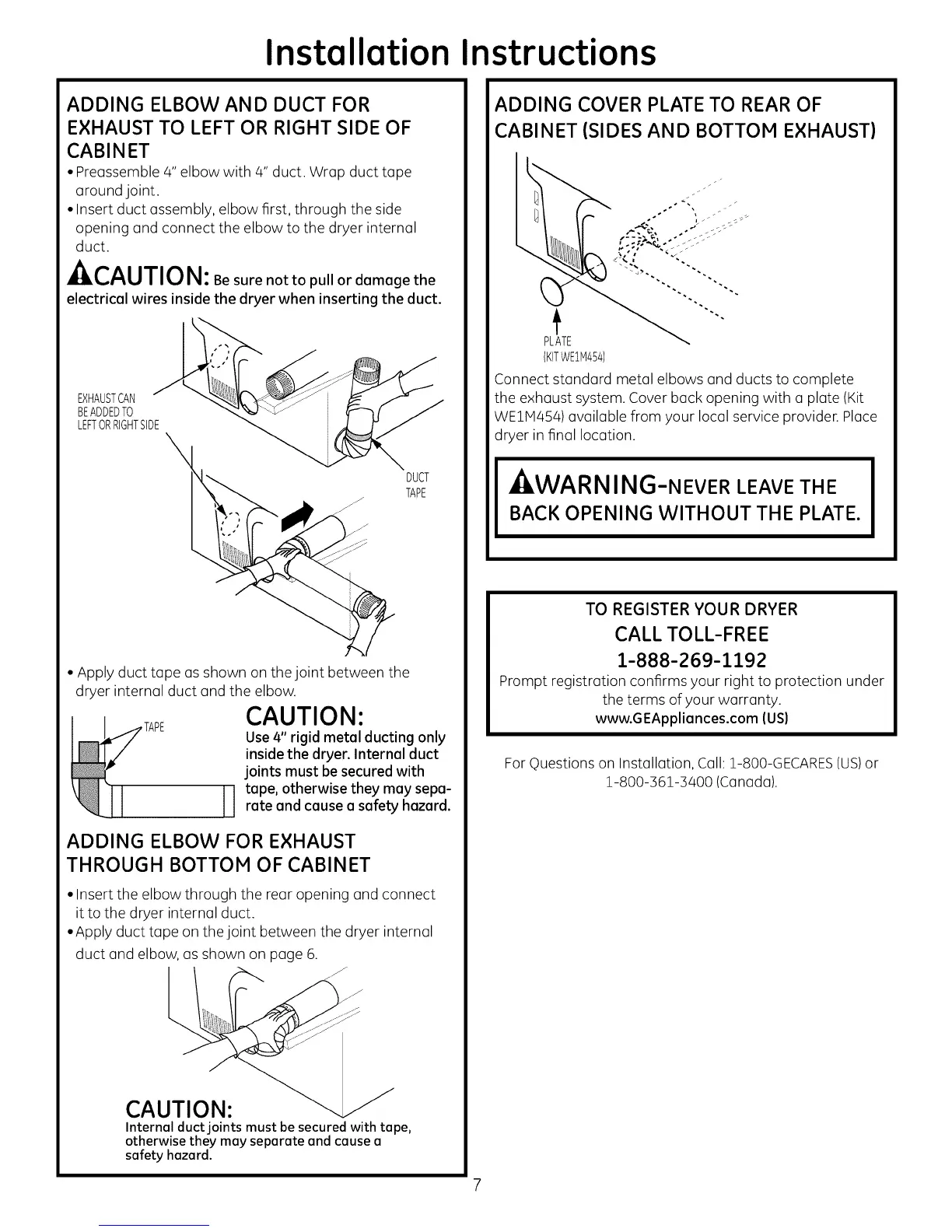

Installation Instructions
ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABINET
• Preossemble 4" elbow with 4" duct. Wrop duct tope
around joint.
• Insert duct ossembly, elbow first, through the side
opening ond connect the elbow to the dryer internol
duct.
-ZkCAUTION:Be sure not to pullor damage the
electrical wires inside the dryer when inserting the duct.
EXHAUSTCAN
BEADDEDTO
LEFTORRIGHTSIDE
• Apply duct tope os shown on the joint between the
dryer internol duct ond the elbow.
CAUTION:
DUCT
TAPE
Use4" rigid metal ducting only
inside the dryer. Internal duct
joints must be secured with
tape, otherwise they may sepa-
rate and cause a safety hazard.
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
• Insert the elbow through the reor opening ond connect
it to the dryer internol duct.
• Apply duct tope on the joint between the dryer internol
duct ond elbow, os shown on poge 6.
J
CAUTION:
Internal ductjoints must besecured with tape,
otherwise they may separate and causea
safety hazard.
ADDING COVER PLATE TO REAR OF
CABINET (SIDES AND BOTTOM EXHAUST)
PLATE
{KITWE1M454)
Connect stondord metol elbows ond ducts to complete
the exhaust system. Cover bock opening with o plote (Kit
WEIM454) ovoiloble from your Iocol service provider. Ploce
dryer in finol Iocotion.
-_WARNING-NEVER LEAVE THE
BACK OPENING WITHOUT THE PLATE.
TO REGISTER YOUR DRYER
CALL TOLL-FREE
1-888-269-1192
Prompt registrotion confirms your right to protection under
the terms of your worronty.
www.GEAppliances.com (US)
For Questions on Instollotion, Coil: 1-800-GECARES(US)or
1-800-:361-:3400 (Conodo).
