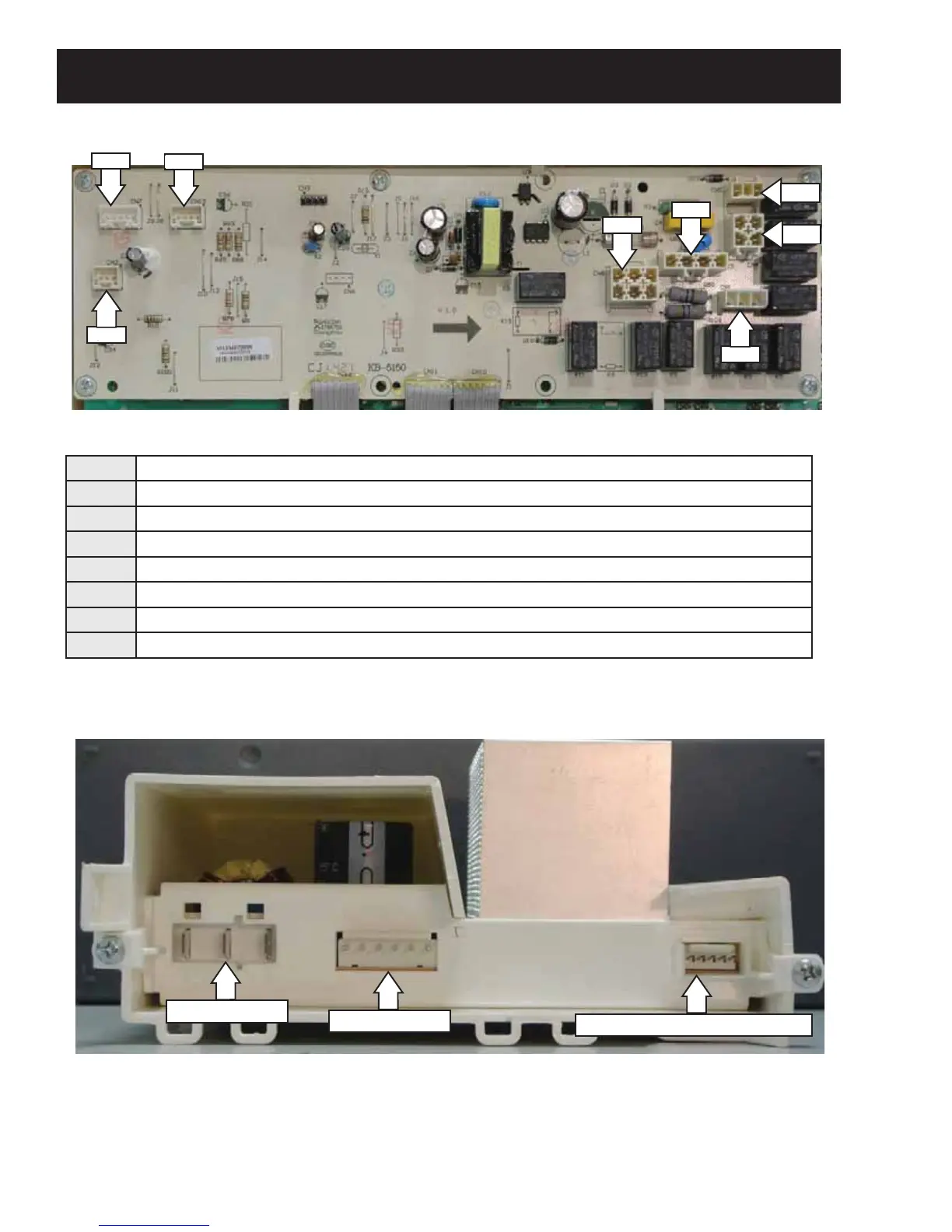

Control and Inverter Board Connections
Control Board
CN1 Hot and cold water valves and dispenser motor
CN2 Water level sensor
CN3 'RRUORFNFRQWURODQGOLQH¿OWHU
CN4 Neutral output to inverter and water valves
CN5 Door lock output and line output to heater
CN7 Inverter communication
CN8 Line output to inverter and pump, and cold water valve 2, and neutral output to heater
CN13 Dispenser switch and thermistor
Inverter Board
CN13
CN7
CN8
CN3
CN1
CN5
CN4
CN2
CN7
CN13
CN2
CN8
CN3
CN5
CN4
CN1
Communication To Control Board
Output To Motor
120VAC Iutput
120 VAC Input
Output to Motor
Communication to Control Board
