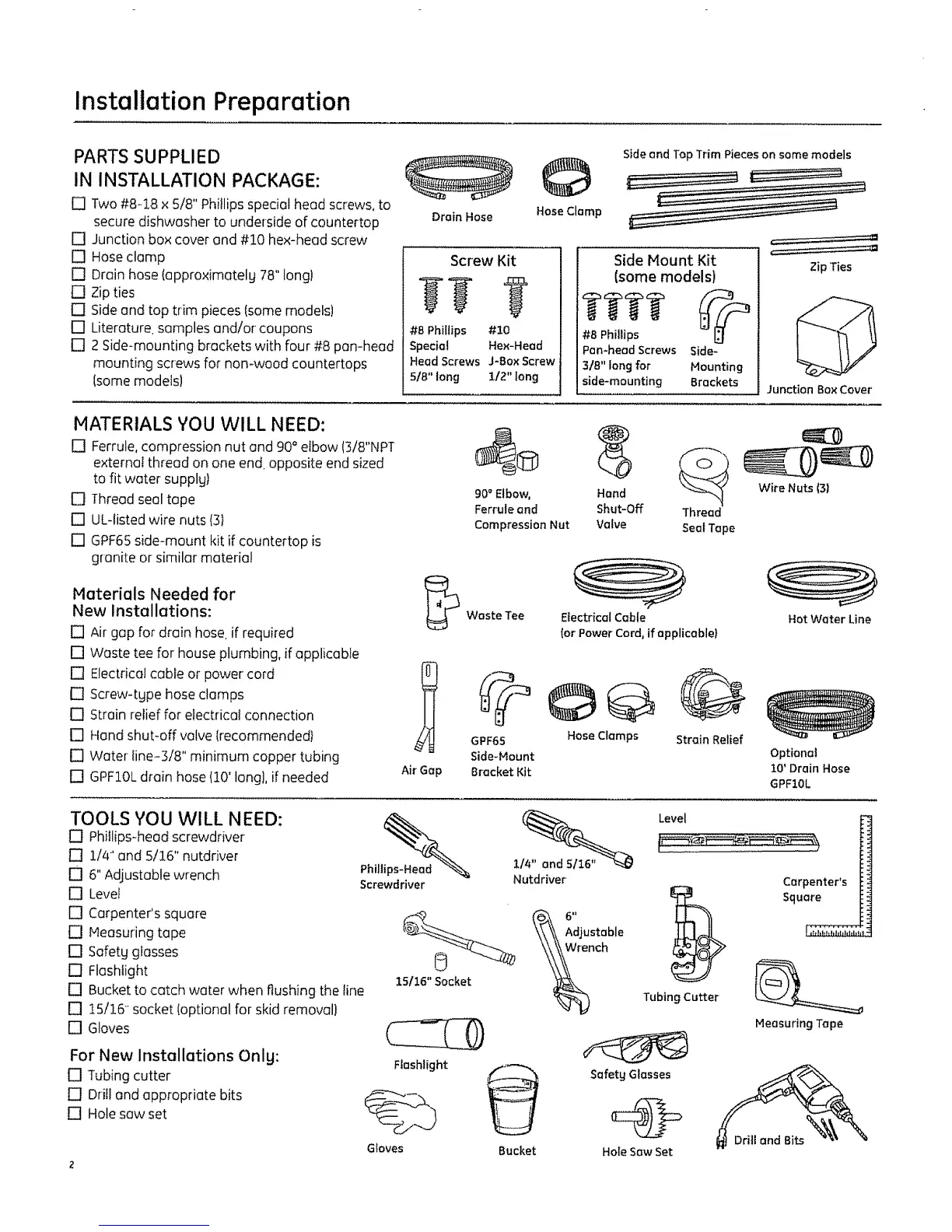

Installation Preparation
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
rq Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop
[] Junction box cover and #10 hex-head screw
[] Hoseclamp
[] Drain hose (approximately 78" long)
[] Zip ties
[] Side and top trim pieces (some models}
[] Literature samples and/or coupons
[] 2 Side-mounting brackets with four #8 pan-head
mounting screws for non-wood countertops
Isomemodels}
Drain Hose
©
HoseClamp
Side and Top Trim Pieces on some models
Screw Kit
gg ?
#8 Phillips #!0
Special Hex-Head
HeadScrews J-BOXScrew
518"long 112"long
Side Mount Kit
(some models)
#B Phillips
Pan-head Screws
3/8" long for
side-mounting
Side-
Mounting
Brackets
,===:=:======_
_==:==:=======
Zip Ties
Junction BoxCover'
MATERIALS YOU WILL NEED:
[] Ferrule, compression nut and 90 ° elbow (3/8"NPT
external thread on one end. opposite end sized
to fit water supplgt
[] Thread seal tape
[] UL-listed wire nuts (3}
[] GPF65 side-mount kit if countertop is
granite or similar materiel
Materials Needed for
New Installations:
[] Air gap for drain hose if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord
[] Screw-tgpe hose clamps
[] Strain relief for electrical connection
[] Hand shut-off valve (recommended}
[] Water line-3/8" minimum copper tubing
[] GPFIOL drain hose (10' Iongl, if needed
Air'Gap
90° Elbow, Hand
Ferrule and Shut-Off Thread
Compression Nut Valve SealTape
Waste Tee
Electrical Cable
(or Power Cord, if applicable}
GPF65 HoseClamps StrainRelief
Side-Mount
B{_cket Kit
Wire Nuts (3)
Hot Water Line
Optional
10' Drain Hose
GPF10L
TOOLS YOU WILL NEED:
[] Phillips-head screwdriver
[] 1/4" and 5/16" nutddver
[] 6" Adjustable wrench
[] Level
[] Carpenter's square
[] Heasuring tape
[] Safetg glasses
[] Flashlight
[] Bucket to catch water when flushing the line
[] !5/!6 socket (optional for skid removal)
[] Gloves
Phill_
Screwdriver
Nutdriver
15116"Socket \_nch
Level
Tubing Cutter
Carpenter's
Square
Measuring Tape
For New Installations Onlg:
[] Tubing cutter
[] Drill and appropriate bits
[] Hole saw set
Flashlight
Gloves
Bucket
Safetg Glasses
Hole Saw Set
