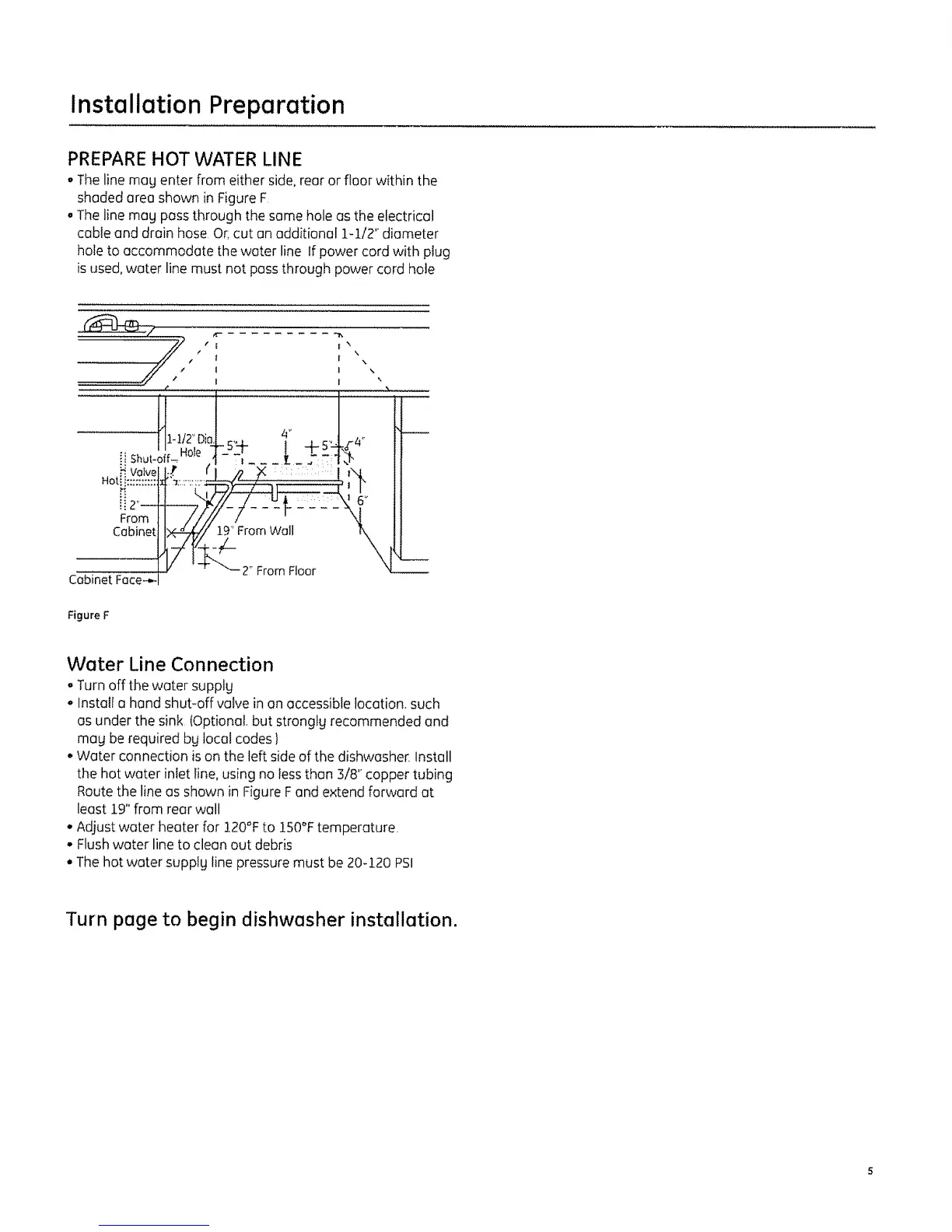

Installation Preparation
PREPARE HOT WATER LINE
° The line mag enter from either side, rear or floor within the
shaded area shown in Figure F
The line mag pass through the some hole as the electrical
cable and drain hose OF.cut on additional 1-1/2" diameter
hole to accommodate the water line If power cord with plug
is used, water line must not pass through power cord hole
........... #'
H1-I/2" Dic
ii Shutooff-Hole
," _ [\
| I .
I I '
Valve
Hot_i::::::::::
iiZ'--
From
Cabinet
Cabinet Face--..
\,,,\
Figure F
Water Line Connection
° Turn off the water supply
* Install a hand shut-off valve in an accessible location, such
as under the sink (Optional. but strongkj recommended and
mag be required bg local codes 1
, Water connection is on the left side of the dishwasher. Install
the hot water inlet line, using no less than 3/8" copper tubing
Route the line as shown in Figure Fand extend forward at
least 19" from rear wall
, Adjust water heater for 120°F to 150°F temperature.
- Flush water line to clean out debris
° The hot water supplg line pressure must be 20-120 PSI
Turn page to begin dishwasher installation.
