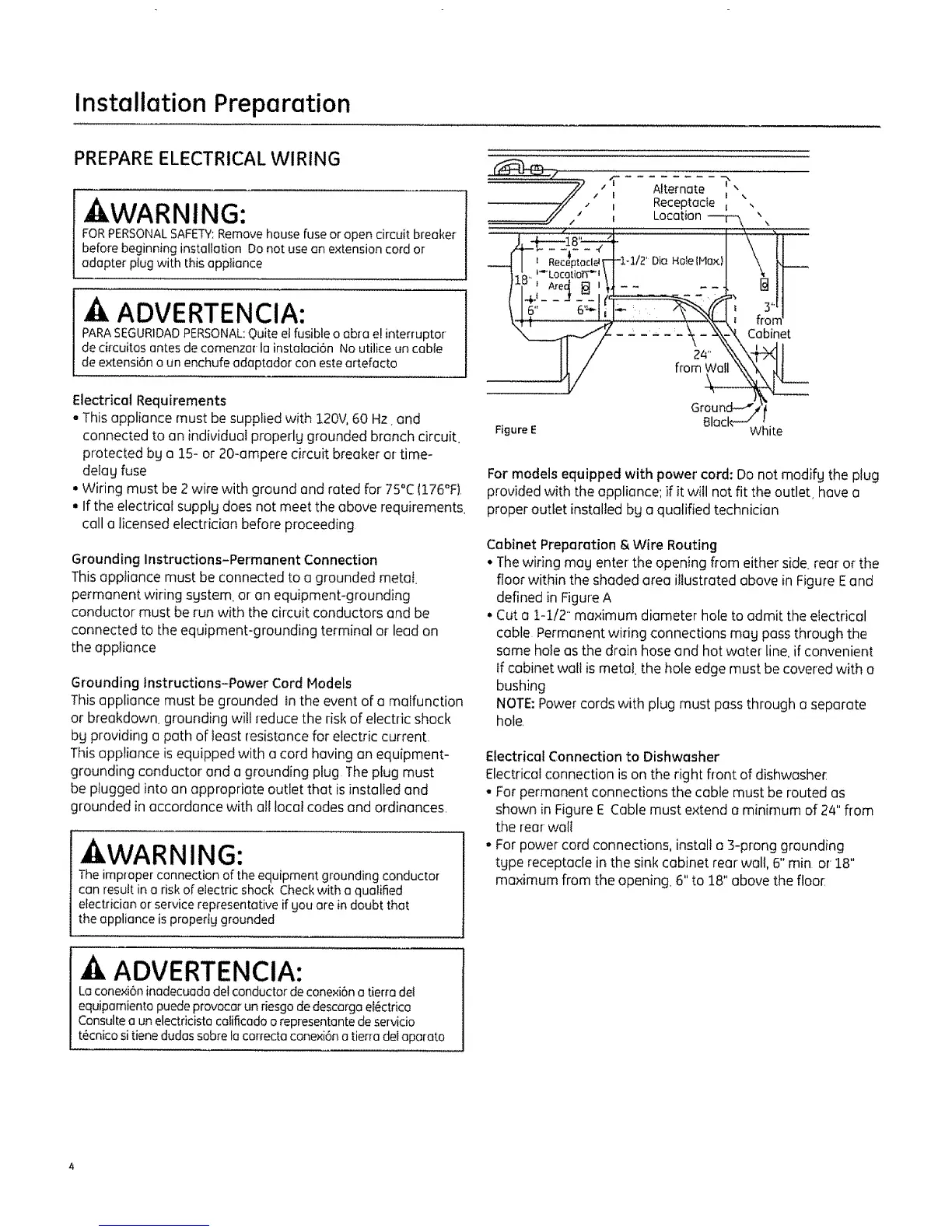

installation Preparation
PREPARE ELECTRICAL WIRING
AWARNING:
FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker
beforebeginninginstallationDonot useonextensioncordor
adapterplugwith thisappIiance
-A ADVERTENCIA:
PARASEGUR1DAD PERSONAL: Quite e_ fusible o abra e! interruptor
decircuitosantesdecomenzarlainsta_aci6nNoutiliceuncable
deextensi6noun enchufeadaptadorconesteartefacto
Electrical Requirements
• Thisappliance must be supplied with 120V,60 Hz and
connected to an individual properlg grounded branch circuit.
protected bg a 15- or 20-ampere circuit breaker or-time-
detag fuse
• Wiring must be 2 wire with ground and rated for 75°C(176°F)
• If the electrical supplg does not meet the above requirements.
call a licensed electrician before proceeding
Grounding Instructions-Permanent Connection
This appliance must be connected to a grounded metal.
permanent wiring sgstem, or an equipment-grounding
conductor must be run with the circuit conductors and be
connected to the equipment-grounding terminal or-lead on
the appliance
Grounding Instructions-Power Cord Models
Thisappliance must be grounded in the event of a malfunction
or breakdown, grounding will reduce the riskof electric shock
bg providing a path of least resistance for electric current,
Thisappliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug Theplug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
kWARNING:
The improper connection of the equipment grounding conductor
can resuR in a risk of electric shock Check with a qualified
electrician or service representative if gou ore in doubt that
the appliance is propertg grounded
ADVERTENCIA:
Laconexi6n inadecuada del conductor de conexi6n atierra del
equipamiento puede provocar un riesgode descarga eI6ctrica
Consultea un electddsta calificado o representante deservicio
t6cnico sitiene dudassabre la correcto conexi6n a tier_adel aparato
1
I Receptacle _
" II Location\ ! ',
--41 ' Receptac!#_-l-1/2'DiaHolelMax _\\
, Am04a ' .... all
-\_-N _, Cabinet
24" i
fro
Figure E white
For models equipped with power cord: Do not modifg the plug
provided with the appliance; if it will not fit the outlet have a
proper outlet installedbg a qualified technician
Cabinet Preparation & Wire Routing
• The wiring mag enter the opening from either side. rear or the
floor within the shaded area illustrated above in Figure Eand
defined in Figure A
° Cut a 1-1/2' maximum diameter hole to admit the electrical
cable Permanent wiring connections mag pass through the
same hole as the drain hoseand hot water line.if convenient
If cabinet wall is metal, the hole edge must be covered with a
bushing
NOTE:Power cords with plug must pass through a separate
hole
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwashe[
• For permanent connections the cable must be routed as
shown in Figure E Cablemust extend a minimum of 24" from
the rear wall
• For power cord connections, install a ]-prong grounding
tape receptacle in the sink cabinet rear wall, 6" rain or 18"
maximum from the opening. 6" to 18" above the floor
To Next Page
