GE GNE25J

30 49-60805-1
Installation Instructions
2

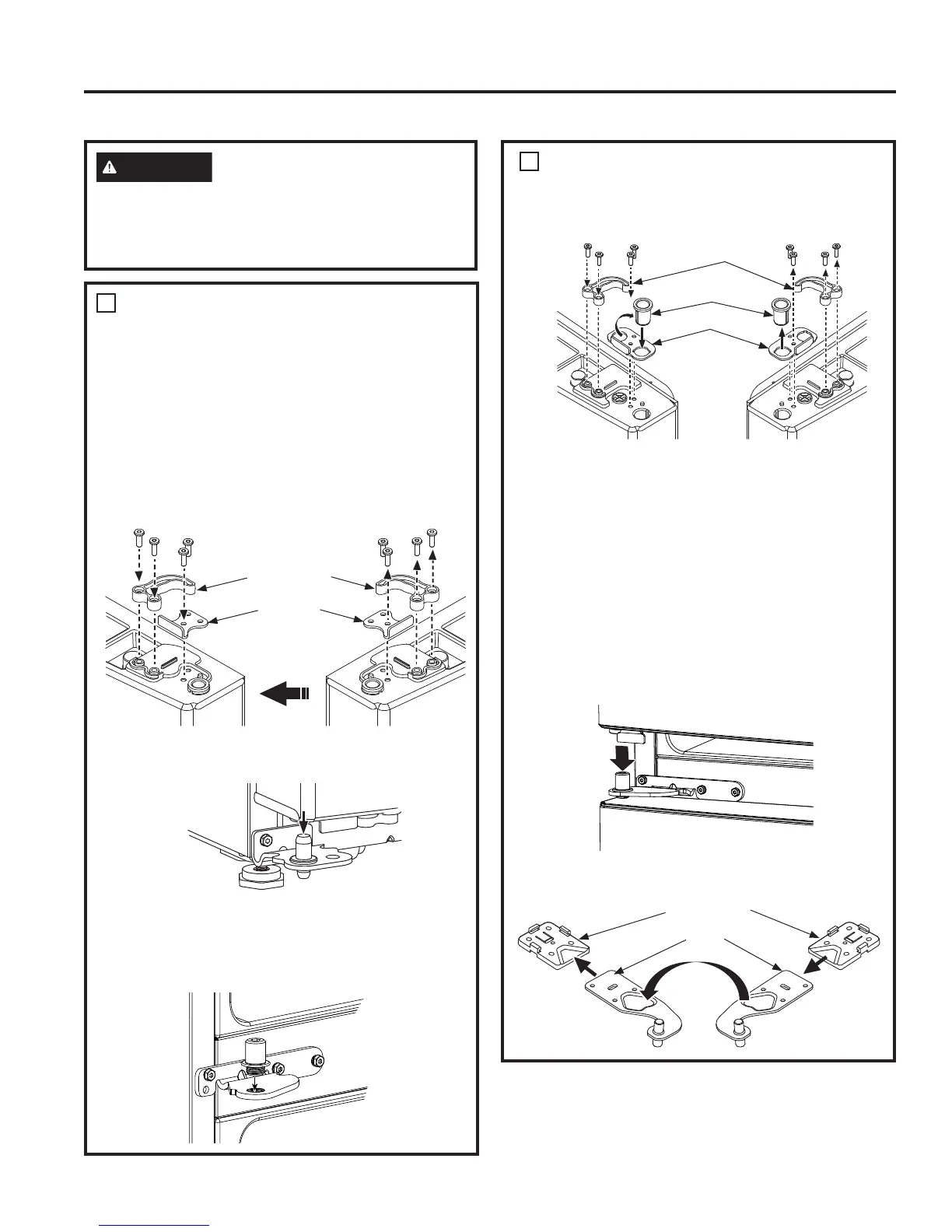

REINSTALL FREEZER DOOR
A. Using a Torx T-20 screwdriver, remove the
bolts securing the door stop on the bottom
right of the door.
B. Using a Trox T-20 screwdriver, remove the
plastic force closure on the bottom right of the
door.
C.)OLSWKHSODVWLFIRUFHFORVXUHDQGPRXQWLWWR
the bottom left of the door.
D.,QVWDOOWKHGRRUVWRSWRWKHERWWRPOHIWRIWKH
door.
E. /RZHUWKHIUHH]HUGRRUDQGPDNHVXUHWRLQVHUW
the hinge pin in the bottom hole of the door.
F. Straighten the door and line it up with the
FHQWHUKLQJHEUDFNHW8VLQJD´$OOHQ
wrench, turn the hinge pin until it extends
through the hinge bracket and into the door.
3
REINSTALL FRESH FOOD DOOR
A. Using a Torx T-20 screwdriver, remove the
bolts securing the door stop on the bottom
right of the door.
B. Transfer the plastic thimble to the opposite
KROH,QVWDOOWKHGRRUVWRSZLWKWKHSODVWLF
thimble on the opposite side.
C. Using a Trox T-20 screwdriver, remove the
plastic force closure on the bottom right of the
door.
D.)OLSWKHSODVWLFIRUFHFORVXUHDQGPRXQWLWWR
the bottom left of the door.
E.,QVWDOOWKHGRRUVWRSWRWKHERWWRPOHIWRIWKH
door.
F. Lower the fresh food door and make sure to
insert the hinge pin in the bottom hole of the
door.
G.5HPRYHWKHKLQJHEDVHIURPWKHKLQJH)OLS
the hinge over and remount to hinge base.
)RUFHFORVXUH
'RRUVWRS
)RUFHFORVXUH
Plastic Thimble
'RRUVWRS
Hinge base
Hinge
WARNING
)ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
INSTALLING THE REFRIGERATOR (Cont.)
INSTALLATION INSTRUCTIONS
