INSTALLING THE REFRIGERATOR (Cont.)
1
CONNECT THE TUBING TO THE REFRIGERATOR
(icemaker and dispenser models)
NOTES:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• Before connecting the water line to the house, purge
the house line for at least 2 minutes.
• Some models have the refrigerator connection at
the water valve (Configuration 1). Other models
have the refrigerator connection at the end of tubing
located outside the compressor compartment access
cover (Configuration 2 & 3).
• On Configuration 1 Models, the
refrigeration connection is at the
water valve, remove the plastic
flexible cap, as shown here.
Water supply connection.
If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto the end of
the tubing coming from the house cold water supply.
If you are using Universal water line tubing, the
nuts are already assembled to the tubing.
Refrigerator Connection.
If you are using copper tubing, insert the end of
the tubing into the refrigerator connection, at the
back of the refrigerator, as far as possible. While
holding the tubing, tighten the fitting.
If you are using Universal water line tubing,
insert the molded end of the tubing into the
refrigerator connection, at the back of the
refrigerator, and tighten the compression nut until it
is hand tight. Then tighten one additional turn with a
wrench. Overtightening may cause leaks.
Refrigerator Connection Using the Tubing Clamp
)DVWHQWKHWXELQJLQWRWKHFODPSSURYLGHGWRKROGLW
in position. You may need to pry open the clamp.

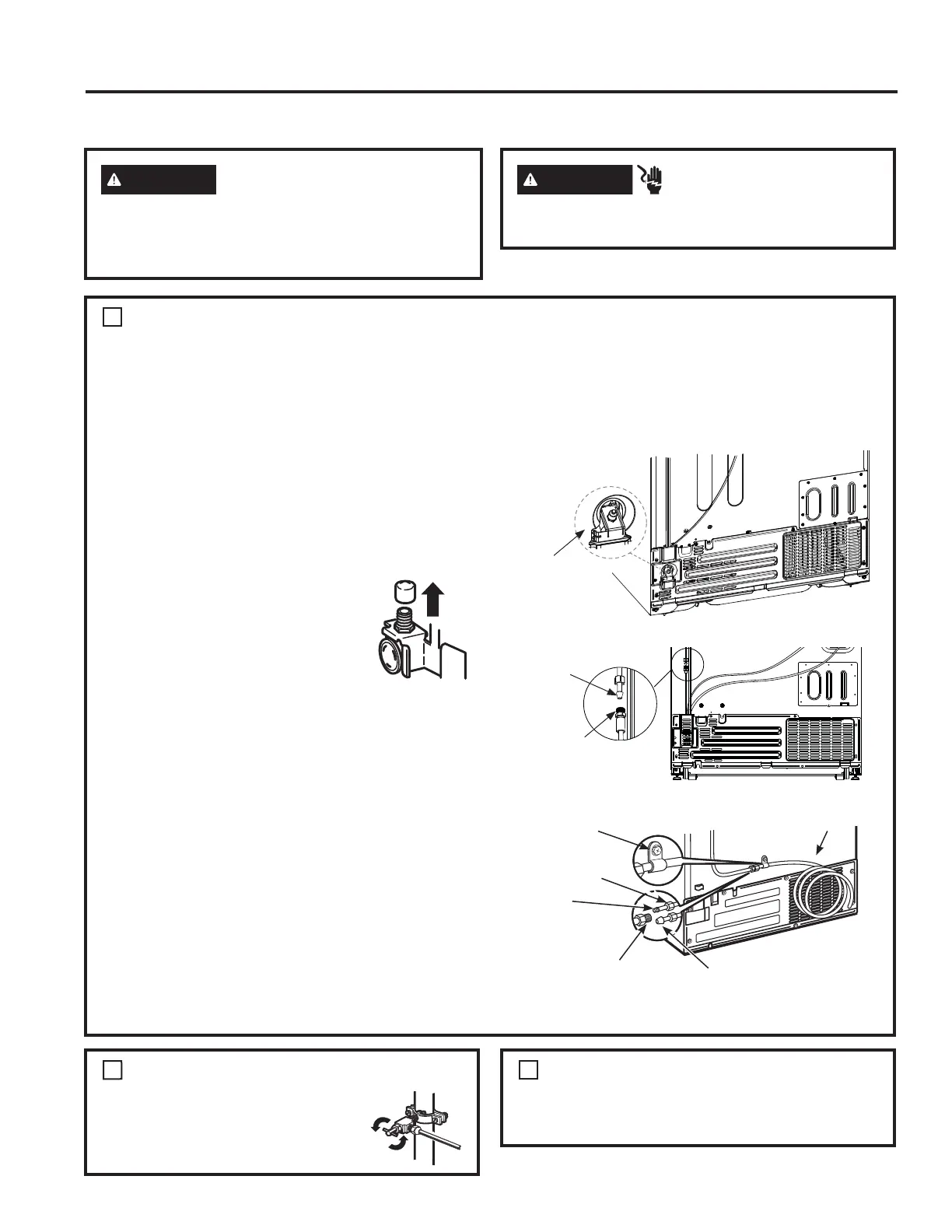

One of the Configurations below will look like the
connection on your refrigerator.
2
TURN ON THE WATER SUPPLY
Turn the water on at the shutoff
valve (house water supply) and
check for any leaks.
3
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the
wall. Push the refrigerator back to the wall.
Installation Instructions
Universal
Water Line
Tubing
Refrigerator
Connection
&RQ¿JXUDWLRQ
´7XELQJ
Tubing Clamp
´
Compression Nut
)HUUXOH
(sleeve)
Universal Water Line Tubing
Refrigerator
Connection
&RQ¿JXUDWLRQ
&RQ¿JXUDWLRQ
Refrigerator
Connection
INSTALLATION INSTRUCTIONS
WARNING
Connect to potable water supply only.
A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 psi (275-827 kilopascals).
WARNING
ELECTRIC SHOCK HAZARD
$WWDFKWXELQJFODPSXVLQJH[LVWLQJKROHRQO\'2
NOT drill into the refrigerator.

GE GSS25GYPFS Specifications

General

Type	freestanding
Style	contour; side-by-side
Color	dark grey; stainless steel
Total Capacity	25.3 cu. ft.
Refrigerator Capacity	16.07 cu. ft.
Freezer Capacity	yes; 9.25 cu. ft.
Humidity Controlled Crispers	2
Defrost System	frost guard
Number of Refrigerator Shelves	4; 1 spill proof, 3 adjustable, 3 slide-out, 4 total, glass
Number of Refrigerator Door Bins	4; 2 adjustable with gallon storage, 2 fixed, 4 total
Number of Refrigerator Adjustable Shelves	3
Number of Refrigerator Drawers	2-stack drawer system, multi-level drawers
Number of Freezer Shelves	1 sweet spot shelf, 3 wire
Number of Freezer Door Bins	2 adjustable, 2 fixed, 4 total
Number of Freezer Baskets	1 wire
Wine Rack	no
Dispenser	integrated with cubes, crushed ice & chilled water; external
Ice Maker	factory-installed; yes
Water Filter	ge water filtration (xwfe filter); yes
Control Type	actual temperature display, upfront electronic touch temperature controls
Remote Control	no
Wi-Fi	no
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	34 3/4 inch
Height	69 5/8 inch
Width	36 inch
Net Weight	320 lbs.
