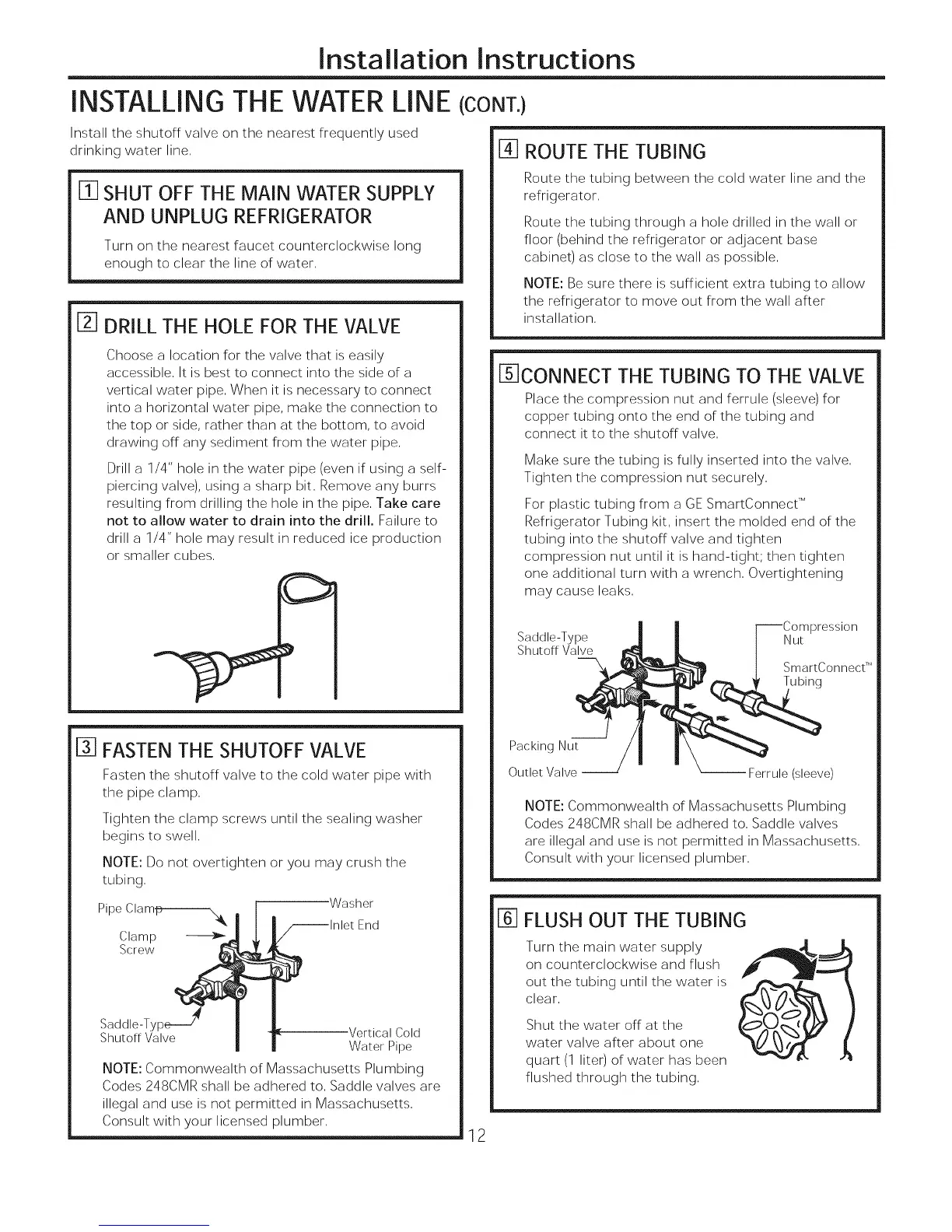

Installation Instructions
INSTALLING
Install the shutoff valve on the nearest frequently used
drinking water line,
rl] SHUT OFF THE MAIN WATER SUPPLY
AND UNPLUG REFRIGERATOR
Turn on the nearest faucet counterclockwise long
enough to clear the line of water,
THE WATER LINE (CONT,)
F4] ROUTE THE TUBING
D DRILL THE HOLE FOR THE VALVE
Choose a location for the valve that is easily
accessible, It is best to connect into the side of a
vertical water pipe, When it is necessary to connect
into a horizontal water pipe, make the connection to
the top or side, rather than at the bottom, to avoid
drawing off any sediment from the water pipe,
Drill a 1/4" hole in the water pipe (even if using a self-
piercing valve), using a sharp bit, Remove any burrs
resulting from drilling the hole in the pipe, Take care
not to allow water to drain into the drill, Failure to
drill a 1/4" hole may result in reduced ice production
or smaller cubes,
[] FASTENTHE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp,
Tighten the clamp screws until the sealing washer
begins to swell,
NOTE: Do not overtighten or you may crush the
tubing,
Pipe Cla ml_-------_ Washer
End
Clamp
Screw
Saddle-Ty t
Shutoff Valve Vertical Cold
Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to, Saddle valves are
illegal and use is not permitted in Massachusetts,
Consult with your licensed plumber,
Route the tubing between the cold water line and the
refrigerator,
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible,
NOTE: Be sure there is sufficient extra tubing to allow
the refrigerator to move out from the wall after
installation,
I-5]CONNECTTHE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for
copper tubing onto the end of the tubing and
connect it to the shutoff valve,
Make sure the tubing is fully inserted into the valve,
Tighten the compression nut securely,
For plastic tubing from a GE SmartConnect TM
Refrigerator Tubing kit, insert the molded end of the
tubing into the shutoff valve and tighten
compression nut until it is hand-tight; then tighten
one additional turn with a wrench, Overtightening
may cause leaks,
Saddle-Type
Shutoff Va_
Packing Nut/
Outlet Valve
[------Compression
Nut
lSmartConnect 'M
_ (__l)ing
Ferrule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to, Saddle valves
are illegal and use is not permitted in Massachusetts,
Consult with your licensed plumber,
[] FLUSH OUT THE TUBING
Turn the main water supply
on counterclockwise and flush
out the tubing until the water is
clear,
Shut the water off at the
water valve after about one
quart (1 liter) of water has been
flushed through the tubing,
12
