Installation Instructions.

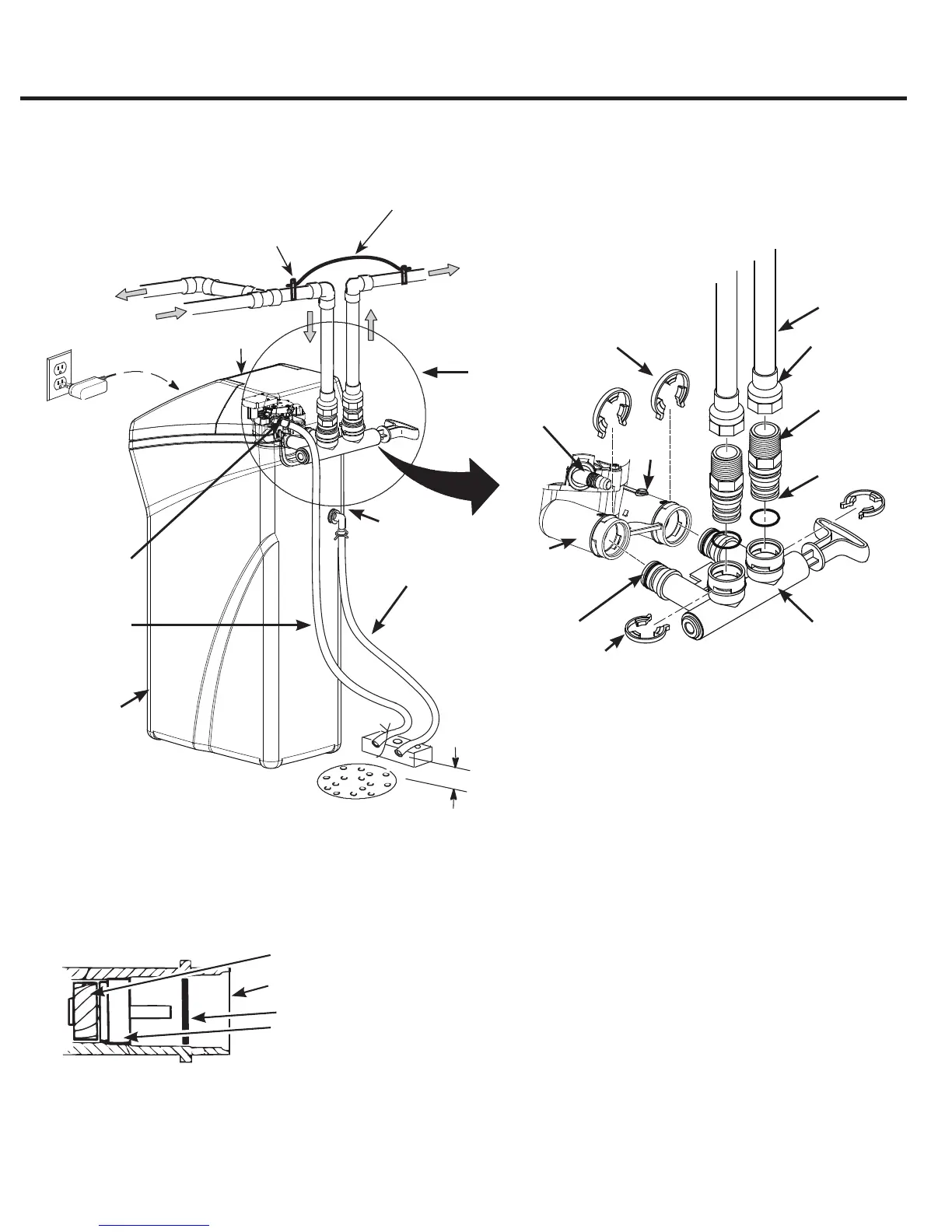

TYPICAL INSTALLATION
Clips
Inlet
Outlet
Lubricated
O-ring
Single Bypass
Valve
O-ring
1” NPTM
Threaded
Adaptor
1” NPTF Sweat
Adaptor (not
included)
Pipe
1-1/2”
air gap
Floor Drain
Secure Valve Drain Hose
in place over Floor Drain
BrineTank
Overflow Hose*
Overflow
Adapter
Conditioned
Water
Main Water Pipe
Incoming-
Hard Water
Hard Water
to Outside
Faucets
Bypass Valve
Assembly
Plug-in
Transformer
To
Controller
Drain Hose
Adapter
Valve Drain
Hose*
*Do not connect the water
softener valve drain hose
to the brine tank overflow
NOTE: See “Air Gap Requirements” section.
Figure 6
Figure 7
Top
Cover
Brine Tank
(Salt Storage)
Drain Hose
Adapter
Clips
5HPRYHSODVWLFVKLSSLQJSOXJDQGZLUHIURPYDOYHRXWOHW
Figure 8
Turbine
Valve outlet
Turbine shaft and support
Plastic shipping plug
NOTE: Be sure the turbine and support are firmly in place in the
valve outlet. Blow into the valve port and observe the turbine
for free rotation.
Ground Wire
(not included)
Clamp
(not included)
