12
Installation Instructions.

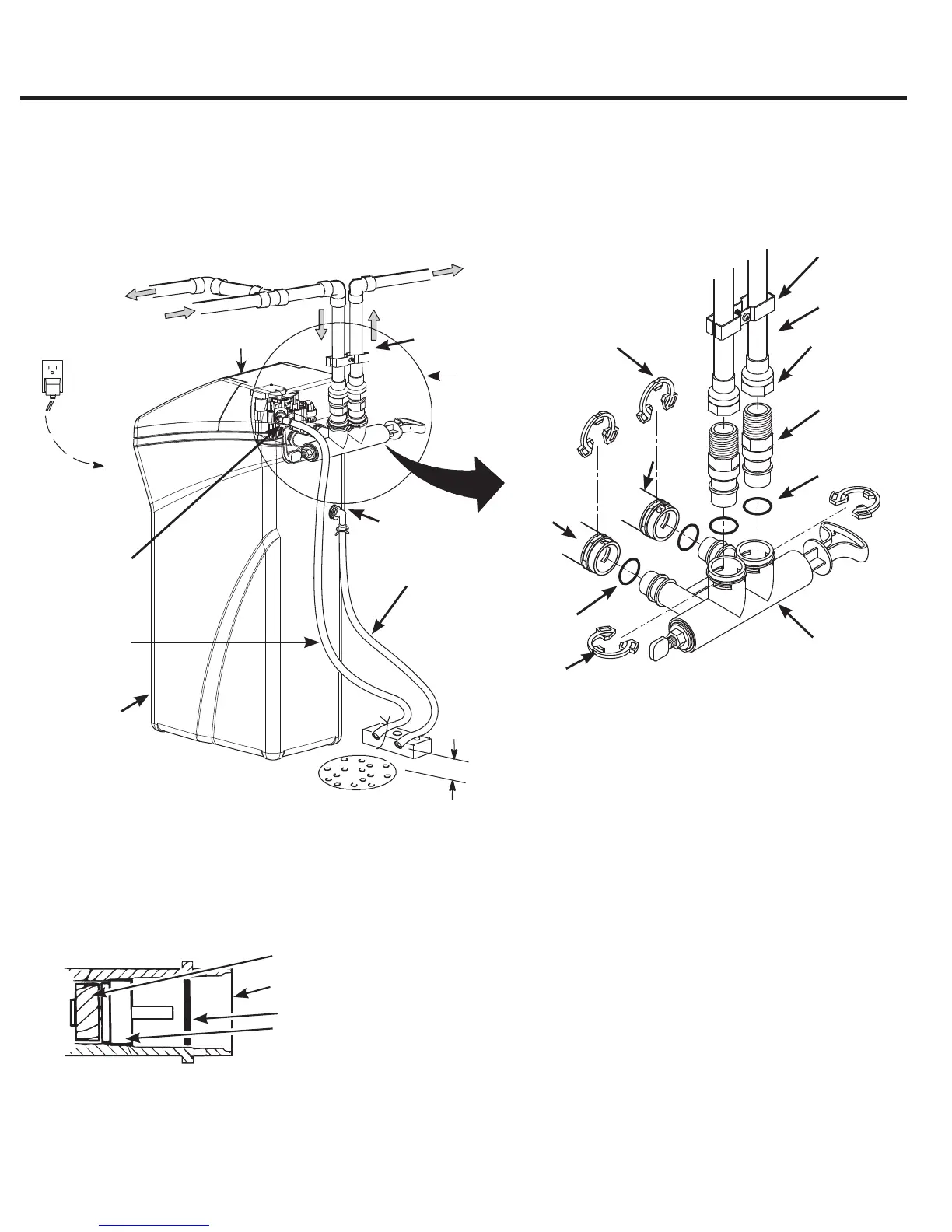

TYPICAL INSTALLATION
Clips
Inlet
Outlet
Lubricated
O-ring
Single Bypass
Valve
O-ring
1” NPT
Threaded
Adaptor
1” NPT Sweat
Adaptor (not
included)
Pipe
Ground
Clamp
1-1/2”
air gap
Floor Drain
Secure Valve Drain Hose
in place over Floor Drain
Brine Tank
Overflow Hose*
Overflow
Adapter
Ground Clamp
Conditioned
Water
Main Water Pipe
Bypass Valve
Assembly
Plug-in
Transformer
To
Controller
Drain Hose
Adapter
Valve Drain
Hose*
*Do not connect the water
softener valve drain hose to the
brine tank overflow
NOTE: See “Air Gap Requirements” section.
Figure 8
NOTE: Be sure the turbine and support are firmly in place in the
valve outlet. Blow into the valve port and observe the turbine
for free rotation.
5HPRYHSODVWLFVKLSSLQJSOXJDQGZLUHIURPYDOYHRXWOHW
Figure 6
Figure 7
Incoming-
Hard Water
Hard Water
to Outside
Faucets
Top
Cover
Brine Tank
(Salt Storage)
Clips
Turbine
Valve outlet
Turbine shaft and support
Plastic shipping plug
