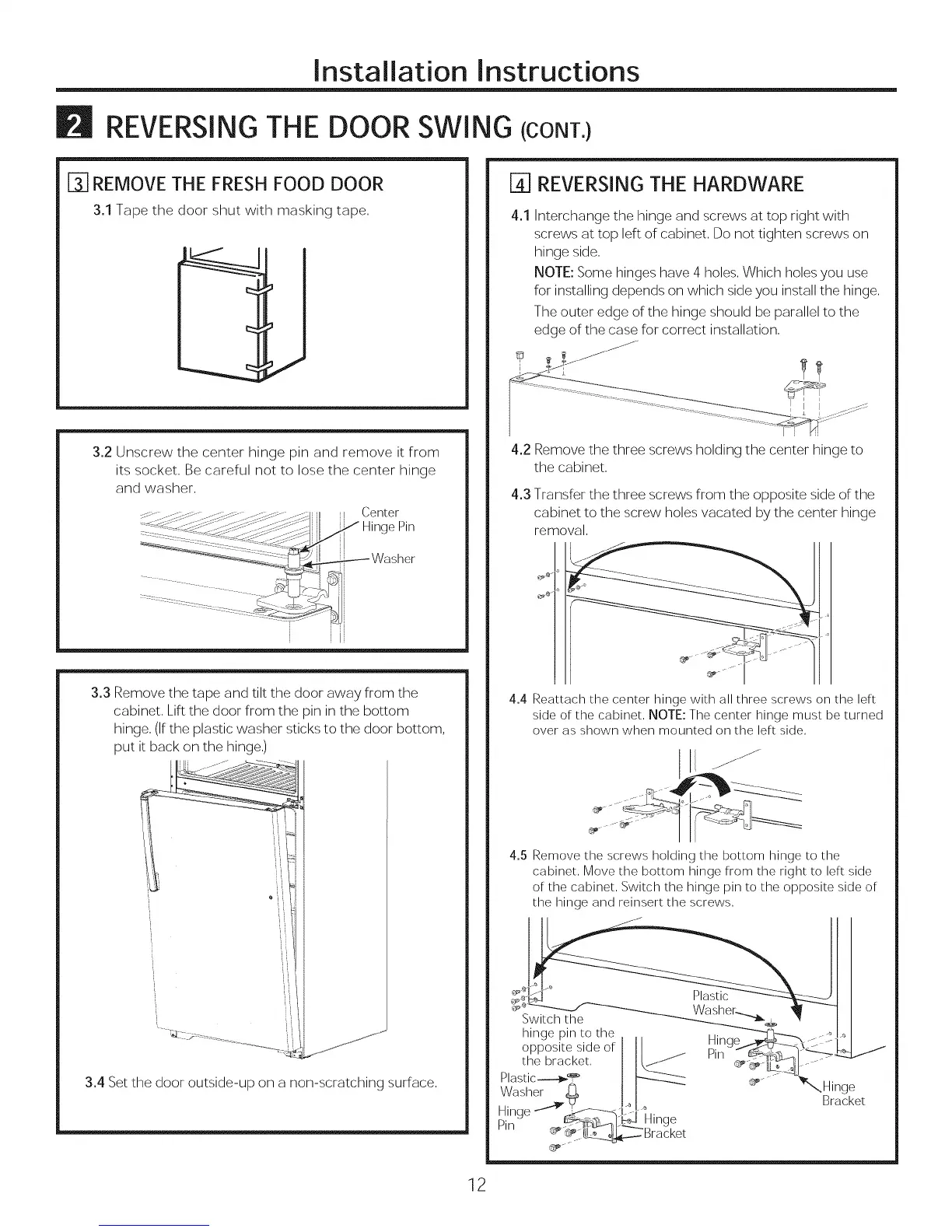

Installation Instructions
REVERSINGTHE DOOR SWING (CONT.)
[_] REMOVE THE FRESHFOOD DOOR
3.1 Tape the door shut with masking tape,
3.2 Unscrew the center hinge pin and remove it from
its socket, Be careful not to lose the center hinge
and washer,
Center
Hinge Pin
3.3 Remove the tape and tilt the door away from the
cabinet, Lift the door from the pin in the bottom
hinge, (If the plastic washer sticks to the door bottom,
put it back on the hinge,)
3.4 Set the door outside-up on a non-scratching surface,
[] REVERSINGTHE HARDWARE
4.1 Interchange the hinge and screws at top right with
screws at top left of cabinet, Do not tighten screws on
hinge side,
NOTE: Some hinges have 4 holes, Which holes you use
for installing depends on which side you install the hinge,
The outer edge of the hinge should be parallel to the
edge of the case for correct installation,
4.2 Remove the three screws holding the center hinge to
the cabinet,
4.3 Transfer the three screws from the opposite side of the
cabinet to the screw holes vacated by the center hinge
removal,
4.4 Reattach the center hinge with all three screws on the left
side of the cabinet, NOTE:The center hinge must be turned
over as shown when mounted on the left side,
4.5 Remove the screws holding the bottom hinge to the
cabinet, Move the bottom hinge from the right to left side
of the cabinet, Switch the hinge pin to the opposite side of
the hinge and reinser[ the screws,
Pla_L !?_hc_ _ Hiirng _
mi'nnge _ ¢_'__mlng_e t
12
