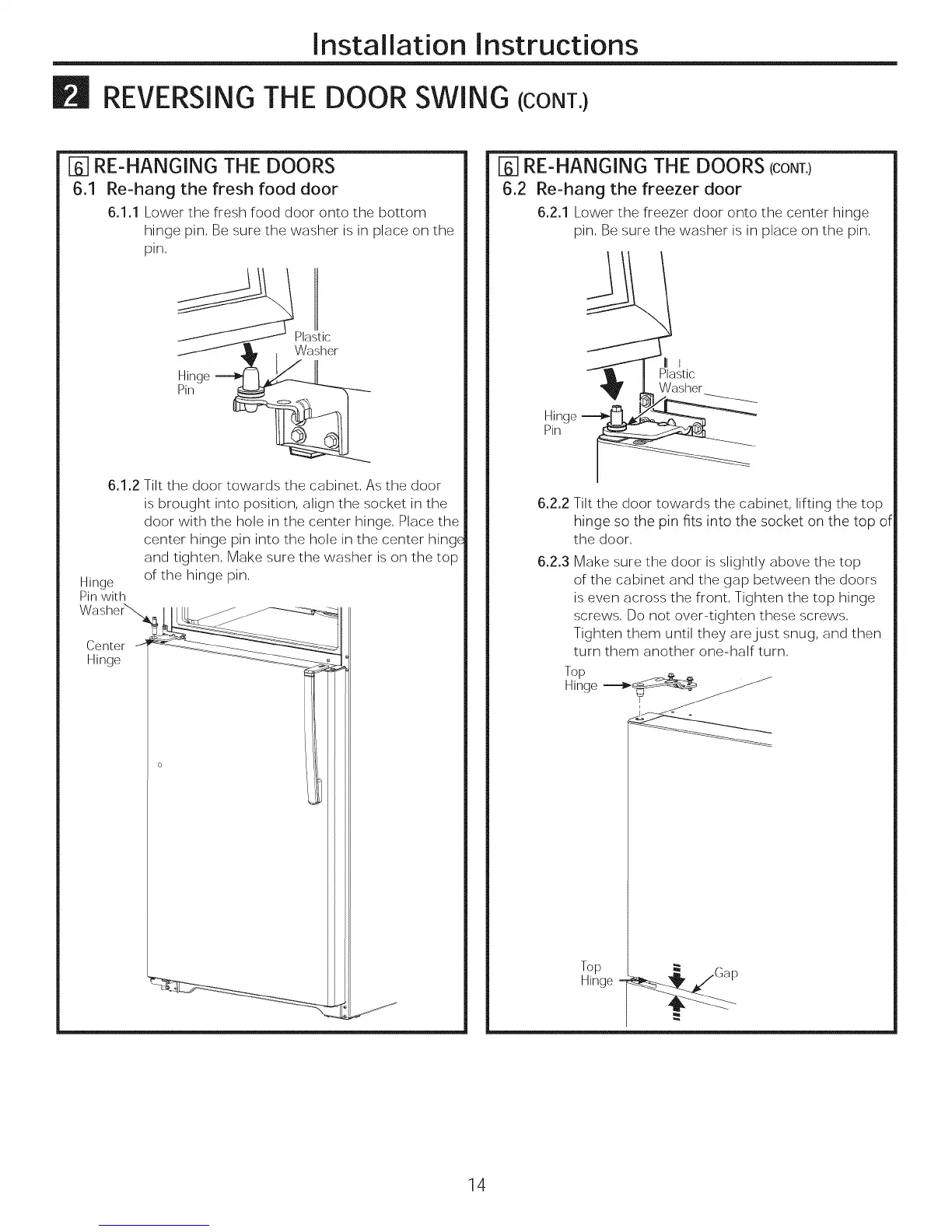

Installation Instructions
REVERSINGTHE DOOR SWING (CONT.)
[] RE-HANGING THE DOORS
6.1 Re-hang the fresh food door
6.1.1 Lower the fresh food door onto the bottom
hinge pin. Be sure the washer is in place on the
pin.
Plastic
Washer
Hinge
Pin
Hinge
Pin with
6.1.2 Tilt the door towards the cabinet. As the door
is brought into position, align the socket in the
door with the hole in the center hinge. Place the
center hinge pin into the hole in the center hinge
and tighten. Make sure the washer is on the top
of the hinge pin.
/
[_] RE-HANGING THE DOORS (CONT.)
6.2 Re-hang the freezer door
6.2.1 Lower the freezer door onto the center hinge
pin. Be sure the washer is in place on the pin.
H I
Plastic
"_ JL Washer
Hinge _
Pin
6.2.2
6.2.3
Tilt the door towards the cabinet, lifting the top
hinge so the pin fits into the socket on the top of
the door.
Make sure the door is slightly above the top
of the cabinet and the gap between the doors
is even across the front. Tighten the top hinge
screws. Do not over-tighten these screws.
Tighten them until they are just snug, and then
turn them another one-half turn.
Top
Hinge ----_-__
Top _,
Hinge
14
To Next Page
