i

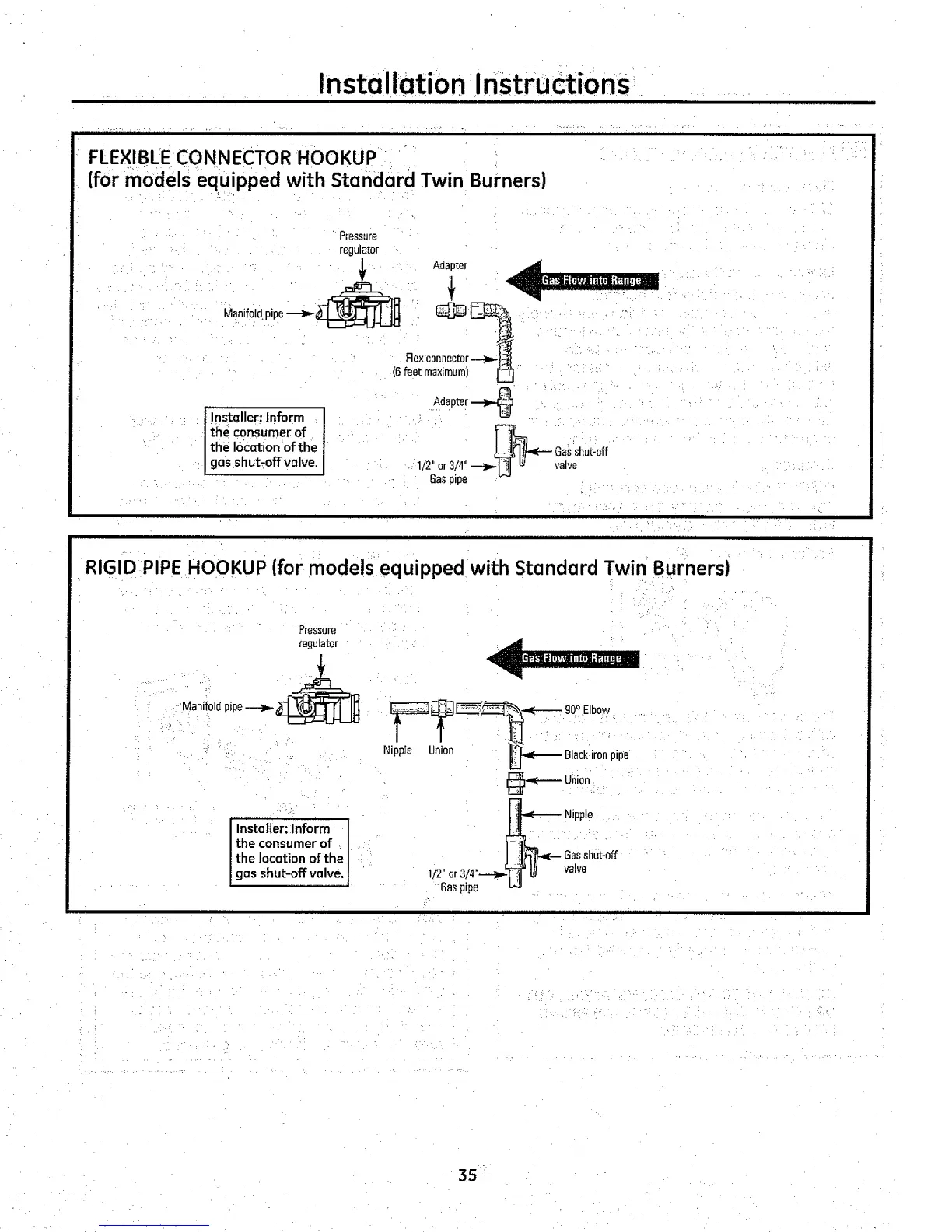

Installation InStructions
FLEXIBLE CONNECTOR HOOKUP
(for models equipped with Standard Twin Burners)
, k
Installer: |nform
the consumer of
the Iocationof the
gas shut_off valve.
Pressure
regulator
_. Adapter
(6feetmaximum) _
Adapter-_
_---- Gasshut-off
1/2"or3/4" _ _ valve
Gaspipe
RIGID PIPE HOOKUP (for models equipped with Stondord Twin Burners)
- k
Pressure
regu[atar
Manifold pipe
Installer: Inform
the consumer of
the location of the
gas shut-off valve.
.,J
__ _ 90_Elbow
Nipple Union _ Blackir°n pipe
_ Union
35
