Installation Instructions
This area allows for flush
range installation with
through-the-wall connection
of pipe stub/shut-off valve
and rear wall 120V outlet.
This area allows for flush
range installation with
through-the-floor connection
of pipe stub/shut-off valve.
Shortest connection from
hard pipe stub location to
range hookup.

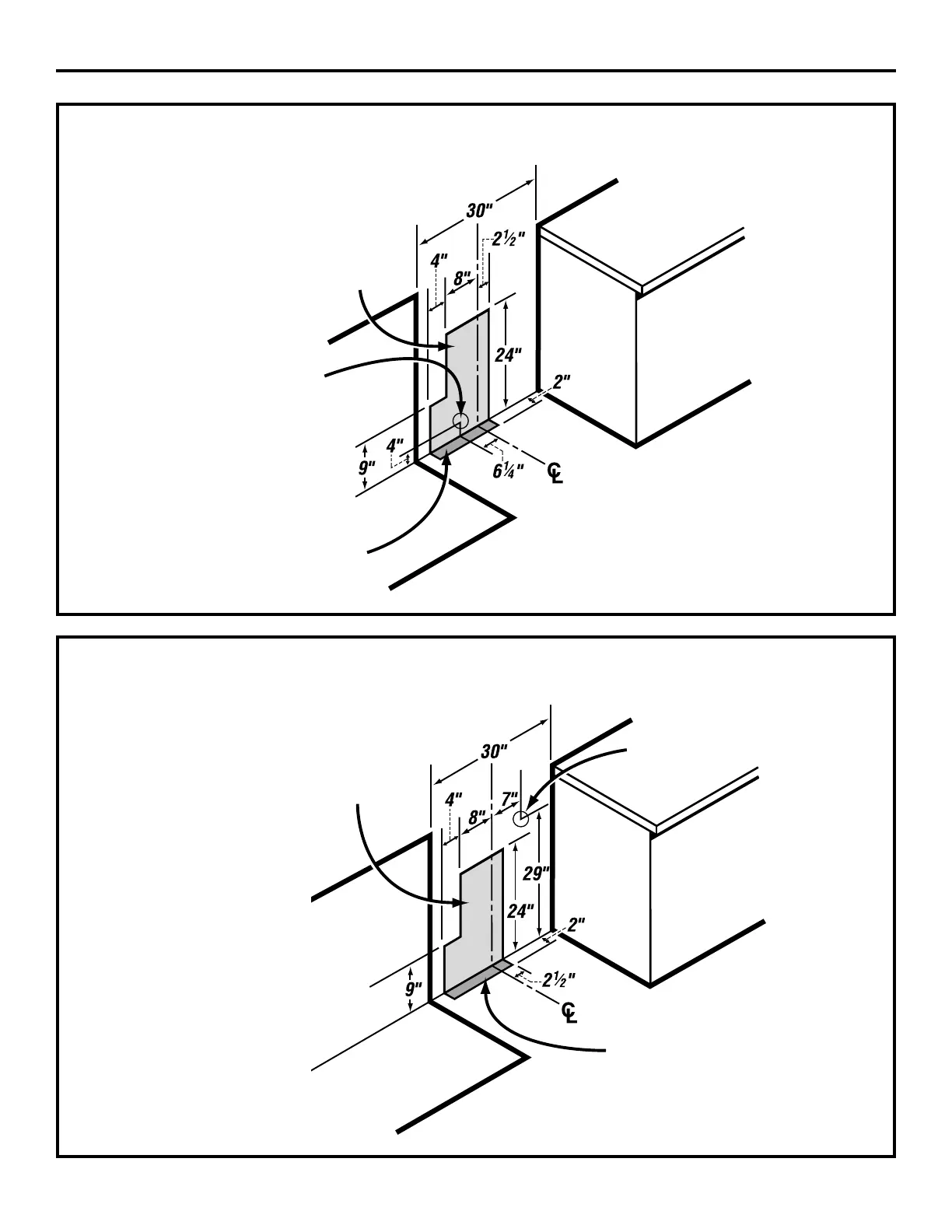

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
(for models with Standard Twin Burners)
This area allows for flush
range installation with
through-the-floor connection
of pipe stub/shut-off valve.
Shortest connection from
hard pipe stub location to
range hookup.
This area allows for flush
range installation with
through-the-wall connection
of pipe stub/shut-off valve
and rear wall 120V outlet.
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
(for models with Sealed Burners)
