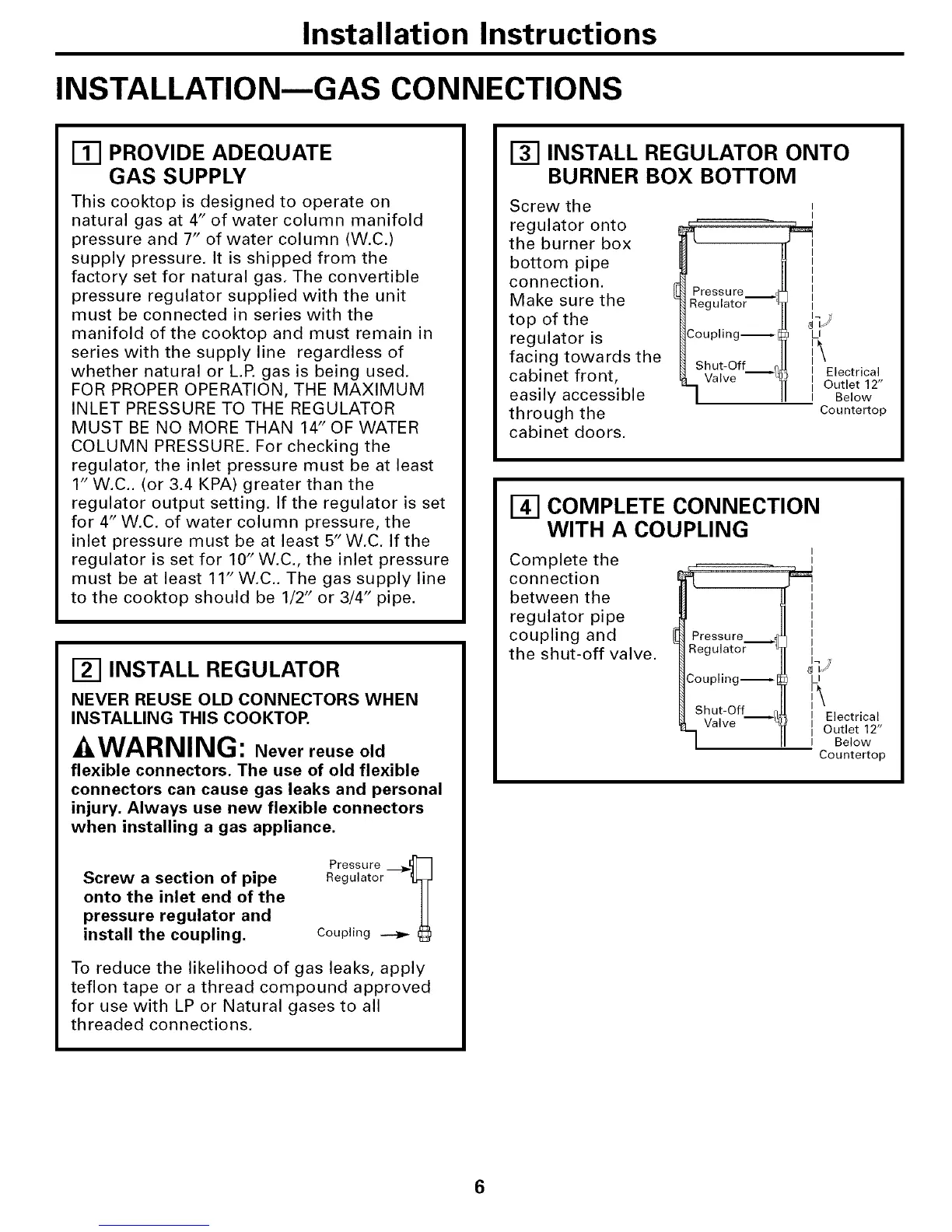

Installation Instructions
INSTALLATION--GAS CONNECTIONS
_-I PROVIDE ADEQUATE
GAS SUPPLY
This cooktop is designed to operate on
natural gas at 4" of water column manifold
pressure and 7" of water column (W.C.)
supply pressure. It is shipped from the
factory set for natural gas. The convertible
pressure regulator supplied with the unit
must be connected in series with the
manifold of the cooktop and must remain in
series with the supply line regardless of
whether natural or L.P. gas is being used.
FOR PROPER OPERATION, THE MAXIMUM
INLET PRESSURE TO THE REGULATOR
MUST BE NO MORE THAN 14" OF WATER
COLUMN PRESSURE. For checking the
regulator, the inlet pressure must be at least
1" W.C.. (or 3.4 KPA) greater than the
regulator output setting. If the regulator is set
for 4" W.C. of water column pressure, the
inlet pressure must be at least 5" W.C. If the
regulator is set for 10" W.C., the inlet pressure
must be at least 11" W.C.. The gas supply line
to the cooktop should be 1/2" or 3/4" pipe.
_-I INSTALL REGULATOR
NEVER REUSE OLD CONNECTORS WHEN
INSTALLING THIS COOKTOP.
-&WARNING: Never reuse old
flexible connectors. The use of old flexible
connectors can cause gas leaks and personal
injury. Always use new flexible connectors
when installing a gas appliance.
Screw a section of pipe
onto the inlet end of the
pressure regulator and
install the coupling.
Pressure I_
Regulator _J
Coupling _ _'_
To reduce the likelihood of gas leaks, apply
teflon tape or a thread compound approved
for use with LP or Natural gases to all
threaded connections.
[] INSTALL REGULATOR ONTO
BURNER BOX BOTTOM
Screw the
regulator onto
the burner box
bottom pipe
connection.
Make sure the
top of the
regulator is
facing towards the
cabinet front,
easily accessible
through the
cabinet doors.
Pressure _
Regulator
Coupling_I
Shut-Off q,
Valve _q
I
I
J I
_qJ
LI
i\
II Electrical
I Outlet 12"
I Below
Countertop
_-I COMPLETE CONNECTION
WITH A COUPLING
Complete the
connection
between the
regulator pipe
coupling and
the shut-off valve.
Pressure _
Regulator
Couplings[ _
Shut-Off f],
Valve _5
I
I
JqJ
LI
II Electrical
I Outlet 12"
I Below
Countertop
6
