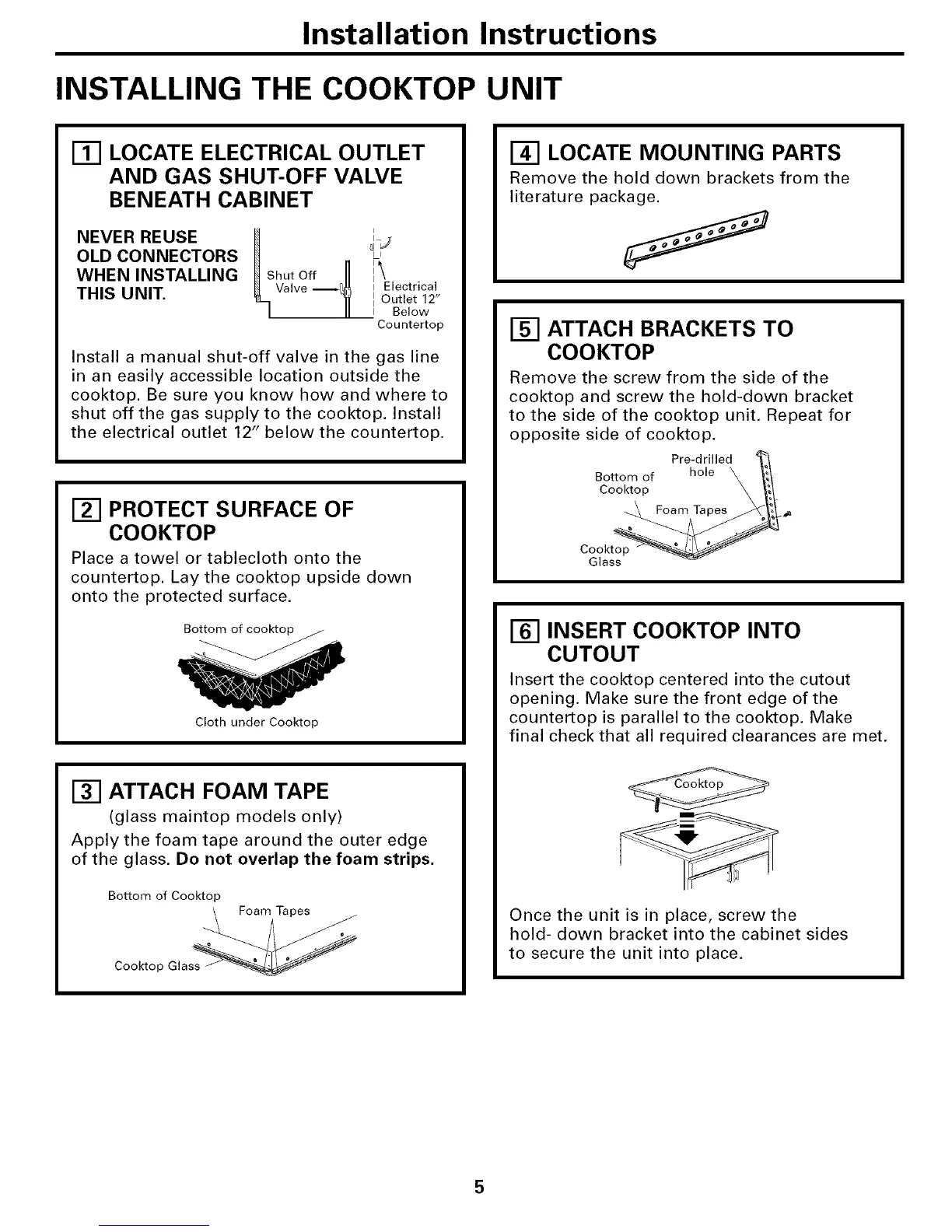

Installation Instructions
INSTALLING THE COOKTOP UNIT
Ill LOCATE ELECTRICAL OUTLET
AND GAS SHUT-OFF VALVE
BENEATH CABINET
NEVER REUSE
OLD CONNECTORS
WHEN INSTALLING
THIS UNIT.
II
Shutoff I] J\
_ Valve--_ i Electrical
Outlet 12"
I Below
Countertop
Install a manual shut-off valve in the gas line
in an easily accessible location outside the
cooktop. Be sure you know how and where to
shut off the gas supply to the cooktop. Install
the electrical outlet 12" below the countertop,
[] PROTECT SURFACE OF
COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
Botto f cook_
Cloth under Cooktop
[] ATTACH FOAM TAPE
(glass maintop models only)
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam strips.
Bottom of Cooktop
Foam Tapes
Cooktop Glass
[_] LOCATE MOUNTING PARTS
Remove the hold down brackets from the
literature package.
[] ATTACH BRACKETS TO
COOKTOP
Remove the screw from the side of the
cooktop and screw the hold-down bracket
to the side of the cooktop unit. Repeat for
opposite side of cooktop,
Pre-drilled I_
Bottom of hole _ f_/
Cooktop X 1_/"
Foam Ta pe___l_ _
Cooktop _
Gla_°p _
[] INSERT COOKTOP INTO
CUTOUT
Insert the cooktop centered into the cutout
opening. Make sure the front edge of the
countertop is parallel to the cooktop. Make
final check that all required clearances are met.
Once the unit is in place, screw the
hold- down bracket into the cabinet sides
to secure the unit into place,
5
