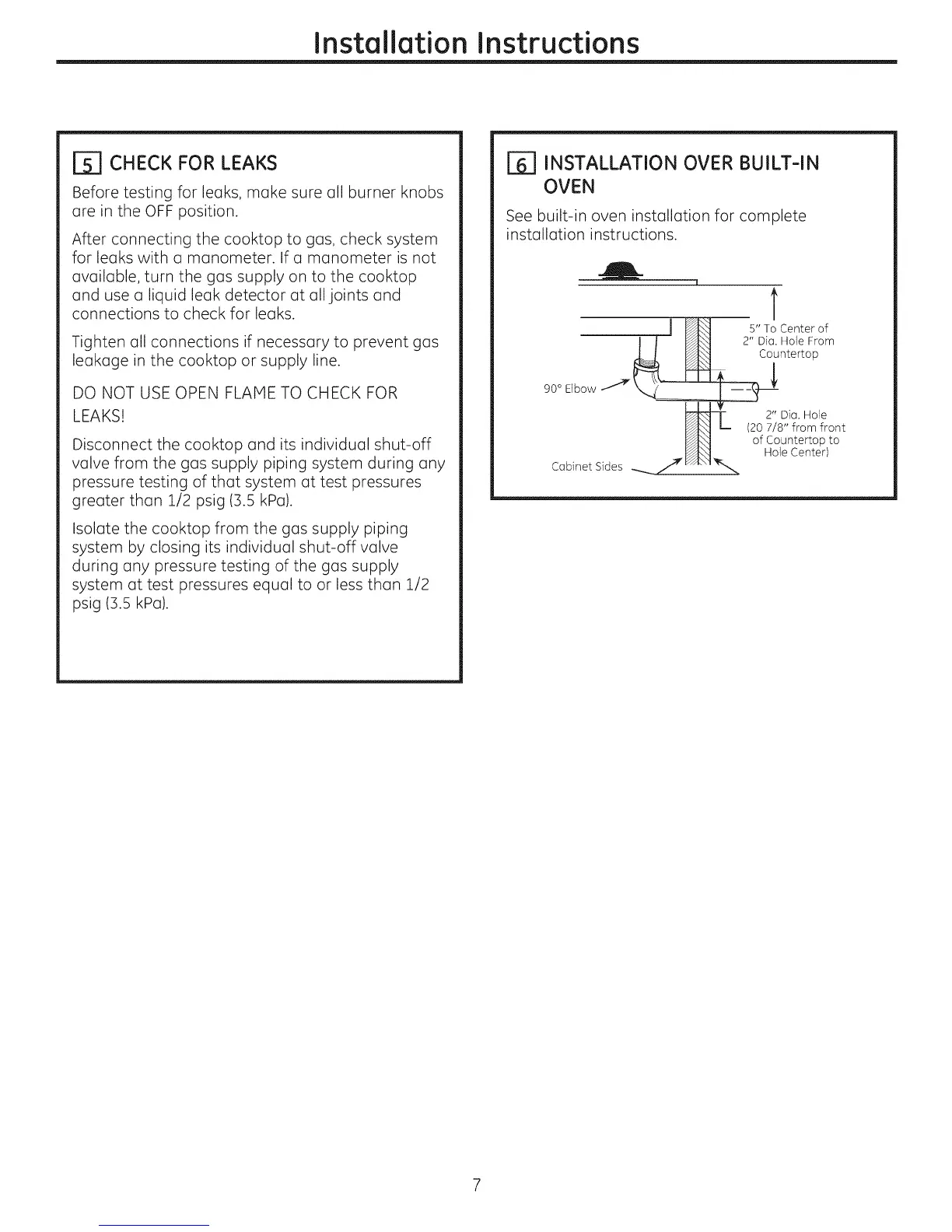

Installation Instructions
[_ CHECK FOR LEAKS
Before testing for leaks, make sure all burner knobs
are in the OFF position.
After connecting the cooktop to gas, check system
for leaks with a manometer. If a manometer is not
available, turn the gas supply on to the cooktop
and use a liquid leak detector at all joints and
connections to check for leaks.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
DO NOT USE OPEN FLAHE TO CHECK FOR
LEAKS!
Disconnect the cooktop and its individual shut-off
valve from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Isolate the cooktop from the gas supply piping
system by closing its individual shut-off valve
during any pressure testing of the gas supply
system at test pressures equal to or less than 1/2
psig (3.5 kPa).
[_] INSTALLATION OVER BUILT-IN
OVEN
See built-in oven installation for complete
installation instructions.
t
J_ s"ToCenterof
I / _ 2" Dim.Hole From
, , , ,,I_ Countertop
90 ° Elbow ._ _...__
2" Dia. Hole
I_ (20 7/8" from front
of Countertop to
_.. Hole Center)
Cabinet Sides .... 7"
To Next Page
