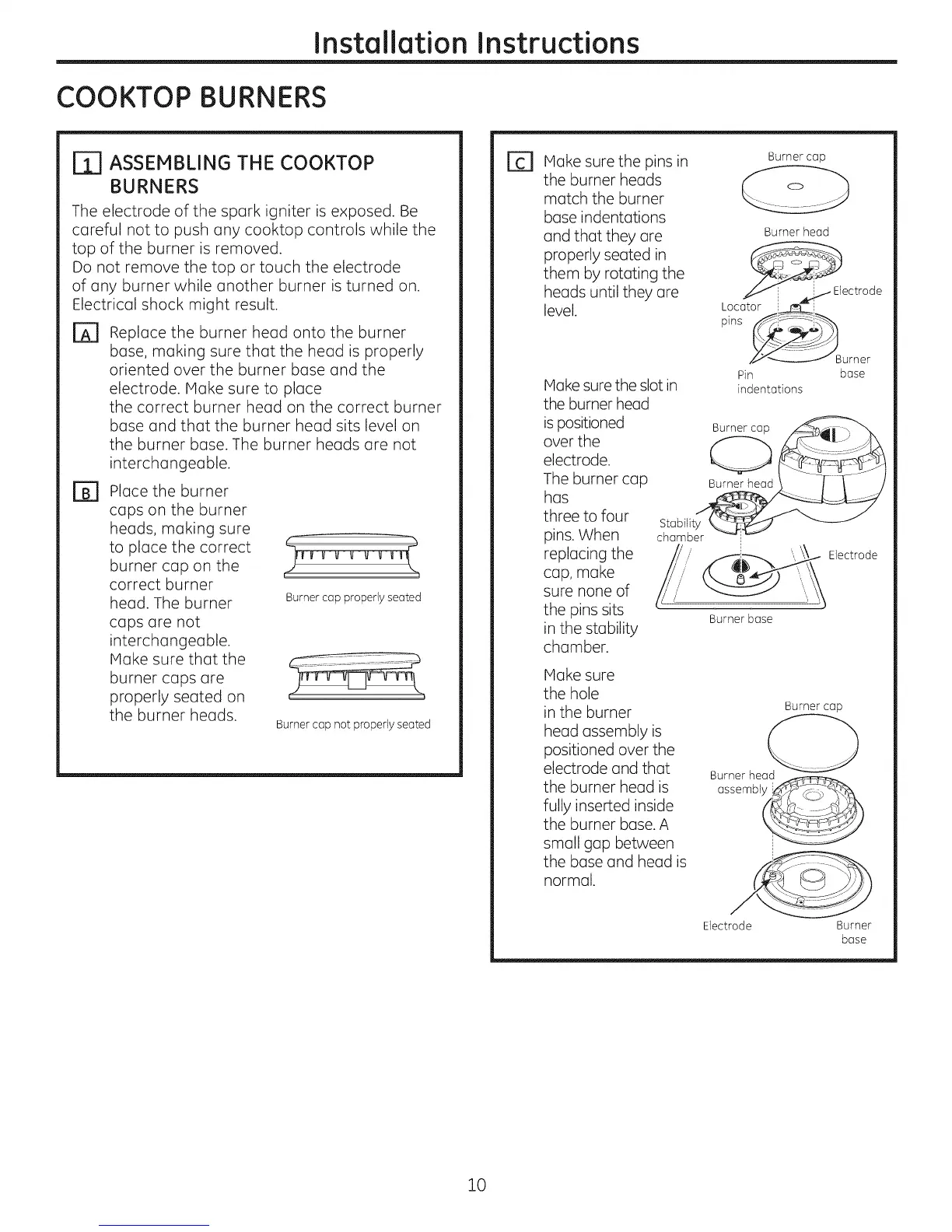

COOKTOP BURNERS
ASSEMBLING THE COOKTOP
BURNERS
The electrode of the spark igniter is exposed. Be
careful not to push any cooktop controls while the
top of the burner is removed.
Do not remove the top or touch the electrode
of any burner while another burner is turned on.
Electrical shock might result.
D Replace the burner head onto the burner
base, making sure that the head is properly
oriented over the burner base and the
electrode. Hake sure to place
the correct burner head on the correct burner
base and that the burner head sits level on
the burner base. The burner heads are not
interchangeable.
B]
Place the burner
caps on the burner
heads, making sure
to place the correct
burner cap on the
correct burner
head. The burner
caps are not
interchangeable.
Hake sure that the
burner caps are
properly seated on
the burner heads.
Burner cap properly seated
Burner cap not properly seated
E]
Make sure the pins in
the burner heads
match the burner
base indentations
and that they are
properly seated in
them by rotating the
heads until they are
level.
Make sure the slot in
the burner head
is positioned
over the
electrode.
The burner cap
has
three to four
pins. When
replacing the
cap, make
sure none of
the pins sits
in the stability
chamber.
Burner cap
Burner head
_._ Electrode
Locatori_i
__Burner
Pin base
indentations
Hake sure
the hole
in the burner
head assembly is
positioned over the
electrode and that
the burner head is
fully inserted inside
the burner base. A
small gap between
the base and head is
normal.
Burner cap
Burner head
assembl j__
Electrode Burner
base
10
