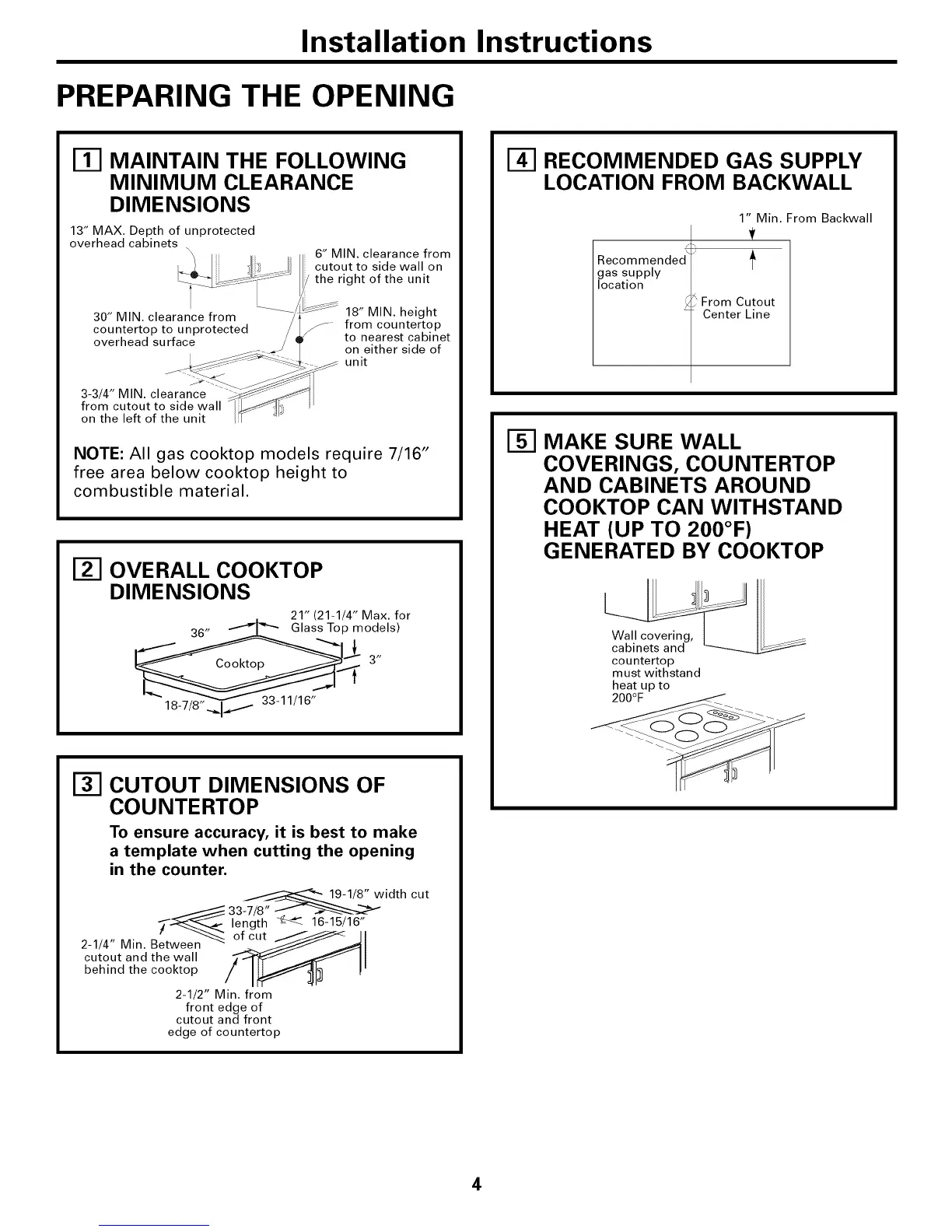

Installation Instructions
PREPARING THE OPENING
17-1MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE
DIMENSIONS
13" MAX. Depth of unprotected
overhead cabinets
\
6" MIN. clearance from
cutout to side wall on
the right of the unit
30" MIN. clearance from 18" MIN. height
_-- from countertop
countertop to unprotected /
overhead surface to nearest cabinet
on either side of
unit
3-3/4" MIN. clearance
from cutout to side wall
on the left of the unit
NOTE: All gas cooktop models require 7/16"
free area below cooktop height to
combustible material.
OVERALL COOKTOP
DIMENSIONS
21" (21-1/4" Max. for
_,.,_ odels)
3"
CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter.
_9-1/8" width
33-7/8" J _'---_
"_--_.._:_ length _ 16-15/16"
2-1/4" Min. Between'n''_ °f_.cut__ I
cutout and the wall _"-_ _ II
behind the cooktop // i 1 lm "
2_1/2- Min. from
front edge of
cutout and front
edge of countertop
cut
RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
1" Min. From Backwall
t
From Cutout
Center Line
MAKE SURE WALL
COVERINGS, COU NTERTOP
AND CABINETS AROUND
COOKTOP CAN WITHSTAND
HEAT (UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop
must withstand
heat up to
200°F
4
