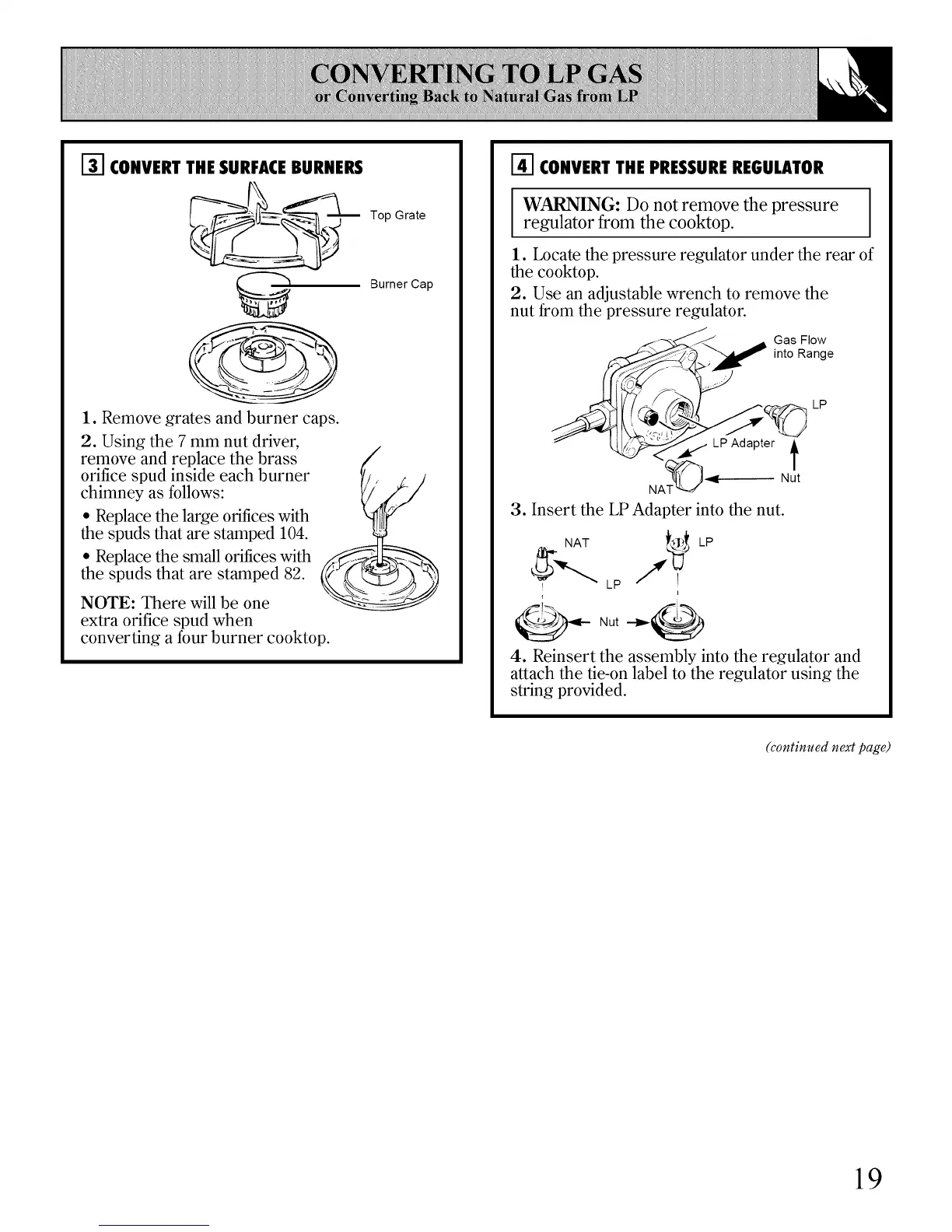

[] CONVERTTHE SURFACEBURNERS
@
1. Remove grates and burner caps.
2. Using the 7 mm nut driver,
remove and replace the brass
orifice spud inside each burner
chimney as follows:
• Replace the large orifices with
the spuds that are stamped 104.
• Replace the small orifices with
the spuds that are stamped 82.
NOTE: There will be one
extra orifice spud when
converting a four burner cooktop.
Top Grate
Burner Cap
CONVERTTHE PRESSUREREGULATOR
WARNING: Do not remove the pressure
regulator from the cooktop.
I
1. Locate the pressure regulator under the rear of
the cooktop.
2. Use an adjustable wrench to remove the
nut from the pressure regulator.
\ -_ _ Gas Flow
,___ into Range
LP
t
NAT_ -_ Nut
3. Insert the LP Adapter into the nut.
NAT LP
i
Nut --__
4. Reinsert the assembly into the regulator and
attach the tie-on label to the regulator using the
string provided.
(continued next page)
