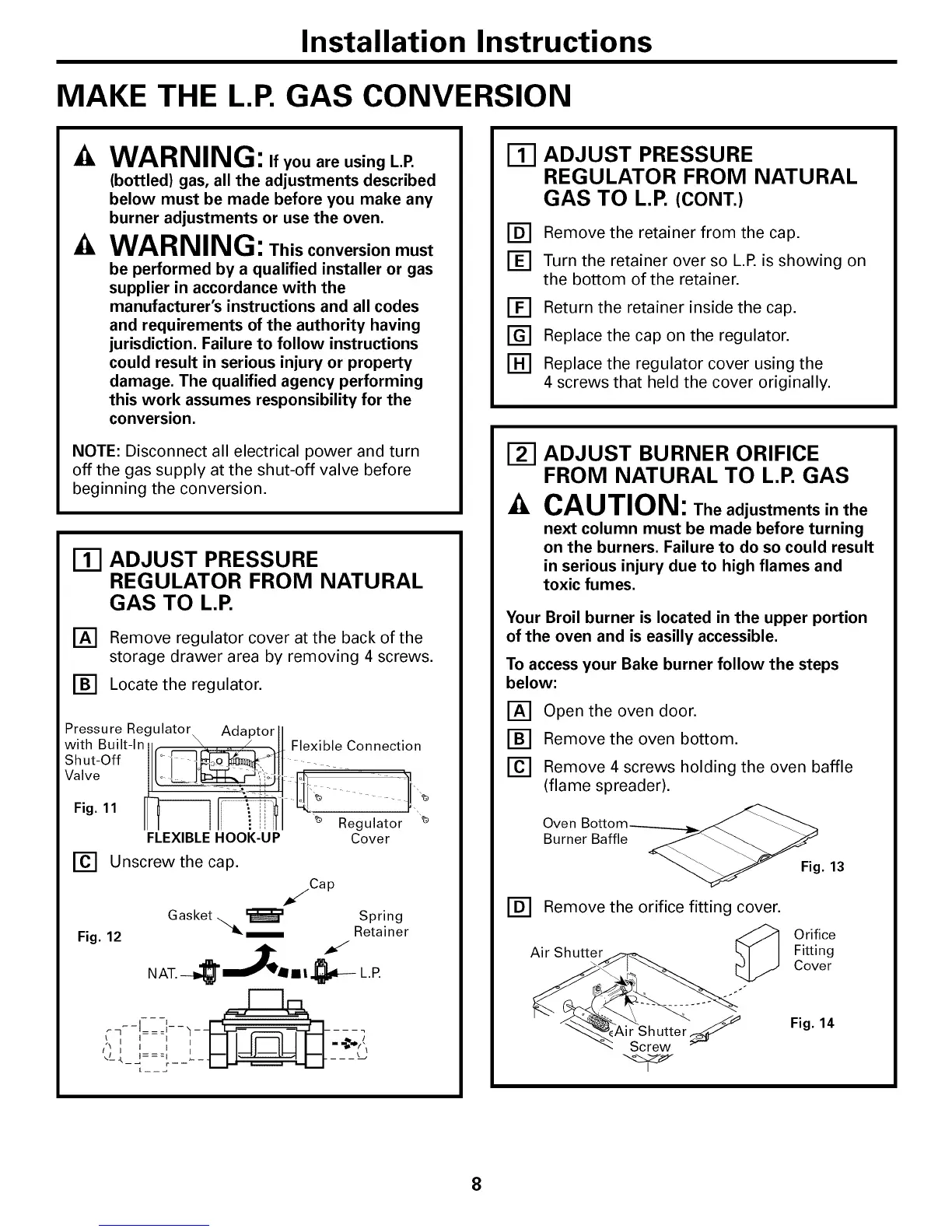

Installation Instructions
MAKE THE L.P. GAS CONVERSION
WARNING: ,fyouare using L.P.
(bottled) gas, all the adjustments described
below must be made before you make any
burner adjustments or use the oven.
WARNING: This conversion must
be performed by a qualified installer or gas
supplier in accordance with the
manufacturer's instructions and all codes
and requirements of the authority having
jurisdiction. Failure to follow instructions
could result in serious injury or property
damage. The qualified agency performing
this work assumes responsibility for the
conversion.
NOTE: Disconnect all electrical power and turn
off the gas supply at the shut-off valve before
beginning the conversion.
Ill ADJUST PRESSURE
REGULATOR FROM NATURAL
GAS TO L.P.
Remove regulator cover at the back of the
storage drawer area by removing 4 screws.
Locate the regulator.
Pressure Regulator Adaptor tl
with Built-In , \ ..... i .ll Flexible Connection
Shut-OffIlk__ .....
Valve °- J° --LJll I _ -- "11
i %' -. ",,
Fig. 11 [[!_------__ _1__ - -- 1,,t_
II II _i 11 "_ Regulator "t_
FLEXIBLE HOOK-UP Cover
[] Unscrewthe cap.
_ .Cap
Gasket
Fig. 12
Spring
Retainer
4r-,Z.
NAT. II I._-_ L.R
V--I_
_]- - -_ #=-'--
:q- ,===',--_--F_r r-_ q_-- =:
'_ I I I I I I II II I I I =.._.B/,\
I I _ I _
,'-, ,==-, _-1--I I_--_-=_ I---L....
Ill ADJUST PRESSURE
REGULATOR FROM NATURAL
GAS TO L.P. (CONT.)
[-_ Remove the retainer from the cap.
[-_ Turn the retainer over so L.R is showing on
the bottom of the retainer.
[-_ Return the retainer inside the cap.
r-G-] Replace the cap on the regulator.
_] Replace the regulator cover using the
4 screws that held the cover originally.
_-I ADJUST BURNER ORIFICE
FROM NATURAL TO L.P. GAS
CAUTION: The adjustments in the
next column must be made before turning
on the burners. Failure to do so could result
in serious injury due to high flames and
toxic fumes.
Your Broil burner is located in the upper portion
of the oven and is easilly accessible.
To access your Bake burner follow the steps
below:
r_ Open the oven door.
[] Remove the oven bottom.
Remove 4 screws holding the oven baffle
(flame spreader).
Oven
Burner Baffle
Fig. 13
[-_ Remove the orifice fitting cover.
Air Shutter
_f
Air Sh utter
Screw _'-
Orifice
Fitting
Cover
Fig. 14
8
To Next Page
