NOTE: Additional clearances between cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth and
height.
• When installing a Warming Drawer below
a single or double oven, a separate 120V,
60 Hz, properly grounded receptacle must
be installed. Refer to installation instructions
packed with the Warming Drawer for
specific installation requirements.
NOTE: Install the
oven only with
specific models
listed on the label
located on top of
the oven.

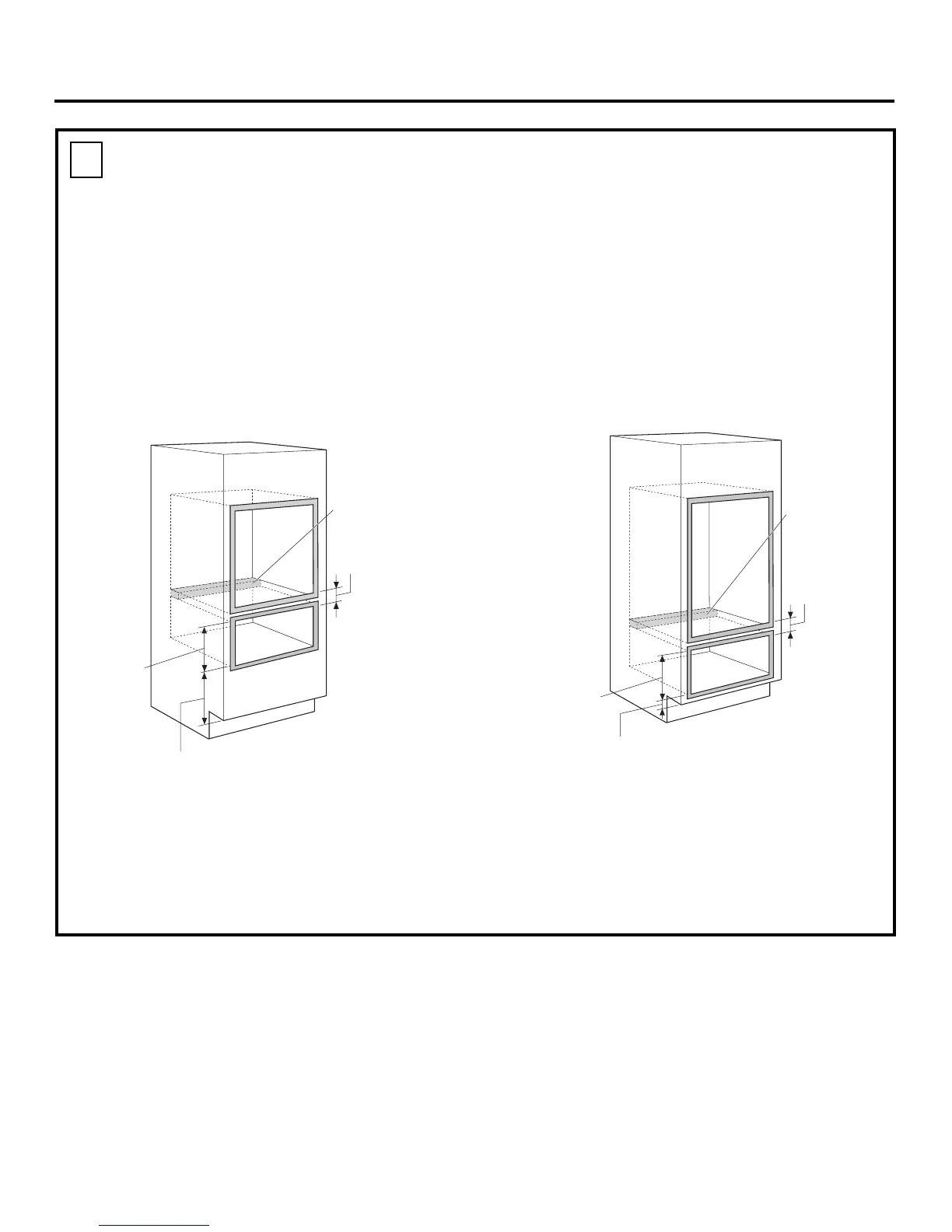

Cutout for 27″ (68.6 cm) Single or
Double Built-In Ovens only – Over a
Warming Drawer
For JKS10, JKP30, JKP35, JKP55, JKP70, JKP75, PK916, PK956, ZEK938,
ZEK958 models only.
A
Single 27″ (68.6 cm)
Oven Over
a Warming Drawer
Double 27″ (68.6 cm)
Oven Over
a Warming Drawer
Anti-Tip Block
Against Rear
Wall Per
Warming
Drawer
Requirement
3” (7.6 cm)
Min.
1” (2.5 cm) Min. Above Toekick
Per Warming
Drawer
Requirement
Anti-Tip Block Against
Rear Wall Per Warming
Drawer Requirement
3” (7.6 cm)
Min.
1” (2.5 cm) Min. Above Toekick or
Adjust to Oven Installation Height
Per
Warming
Drawer
Requirement
