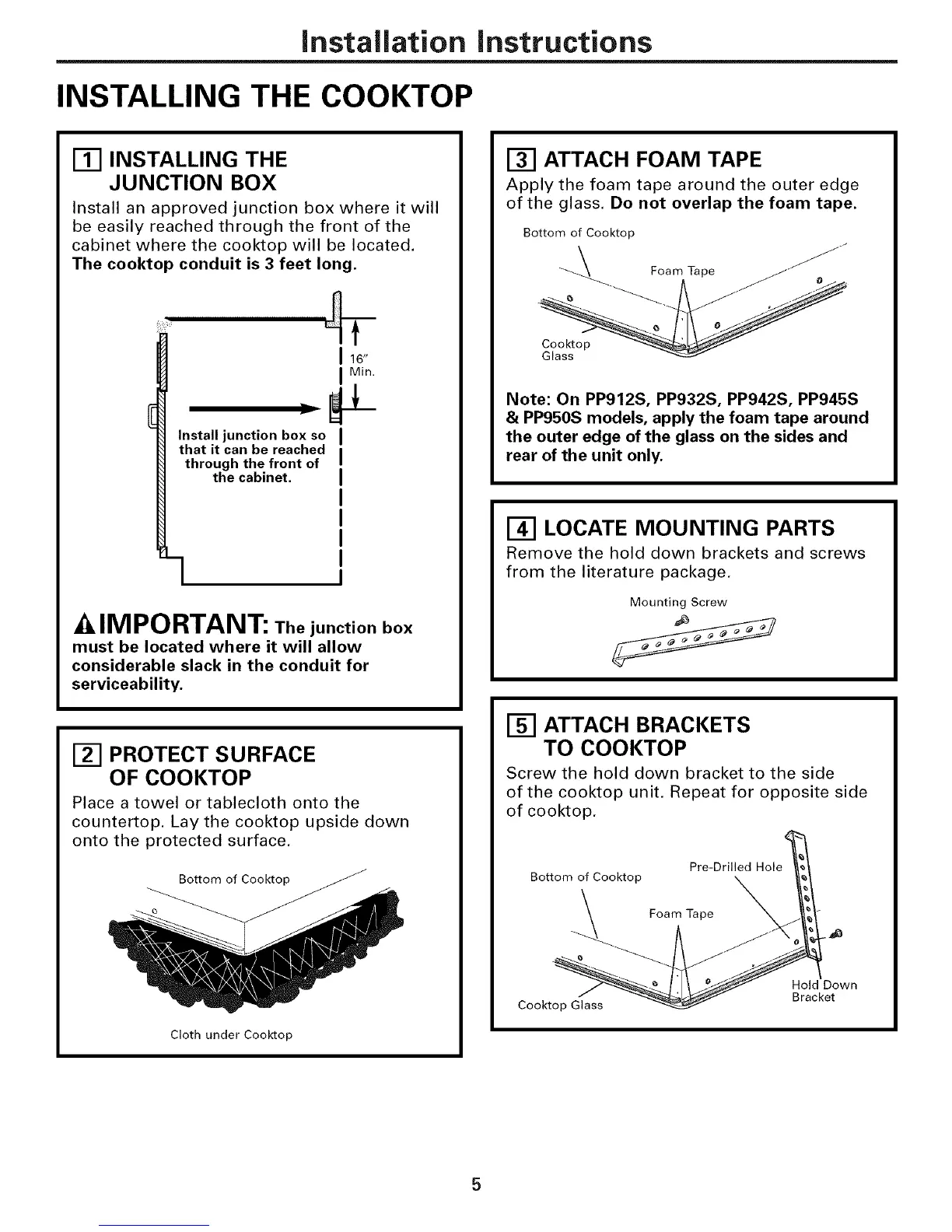

Installation Instructions
INSTALLING THE COOKTOP
Ill INSTALLING THE
JUNCTION BOX
Install an approved junction box where it will
be easily reached through the front of the
cabinet where the cooktop will be located.
The cooktop conduit is 3 feet long.
I 16_
I Min.
Install junction box so
that it can be reached
through the front of
the cabinet,
q
IMPORTANT: The junction box
must be located where it will allow
considerable slack in the conduit for
serviceability.
[] PROTECT SURFACE
OF COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
Bottom of Cooktop
Cloth under Cooktop
[] ATTACH FOAM TAPE
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam tape.
Bottom of Cooktop
J
_._oar'n Tape _'___-
cto op
Note: On PP912S, PP932S, PP942S, PP945S
& PP950S models, apply the foam tape around
the outer edge of the glass on the sides and
rear of the unit only.
_-I LOCATE MOUNTING PARTS
Remove the hold down brackets and screws
from the literature package.
Mounting Screw
[] ATTACH BRACKETS
TO COOKTOP
Screw the hold down bracket to the side
of the cooktop unit. Repeat for opposite side
of cooktop.
Bottom of Cooktop
Pre-Drilled Hole
Foam Tape
Cooktop Glass
Hold Down
Bracket
To Next Page
