Installation Instructions
Electrical Connections cont.
C
New Construction and
Four-Conductor Branch
Circuit
C6

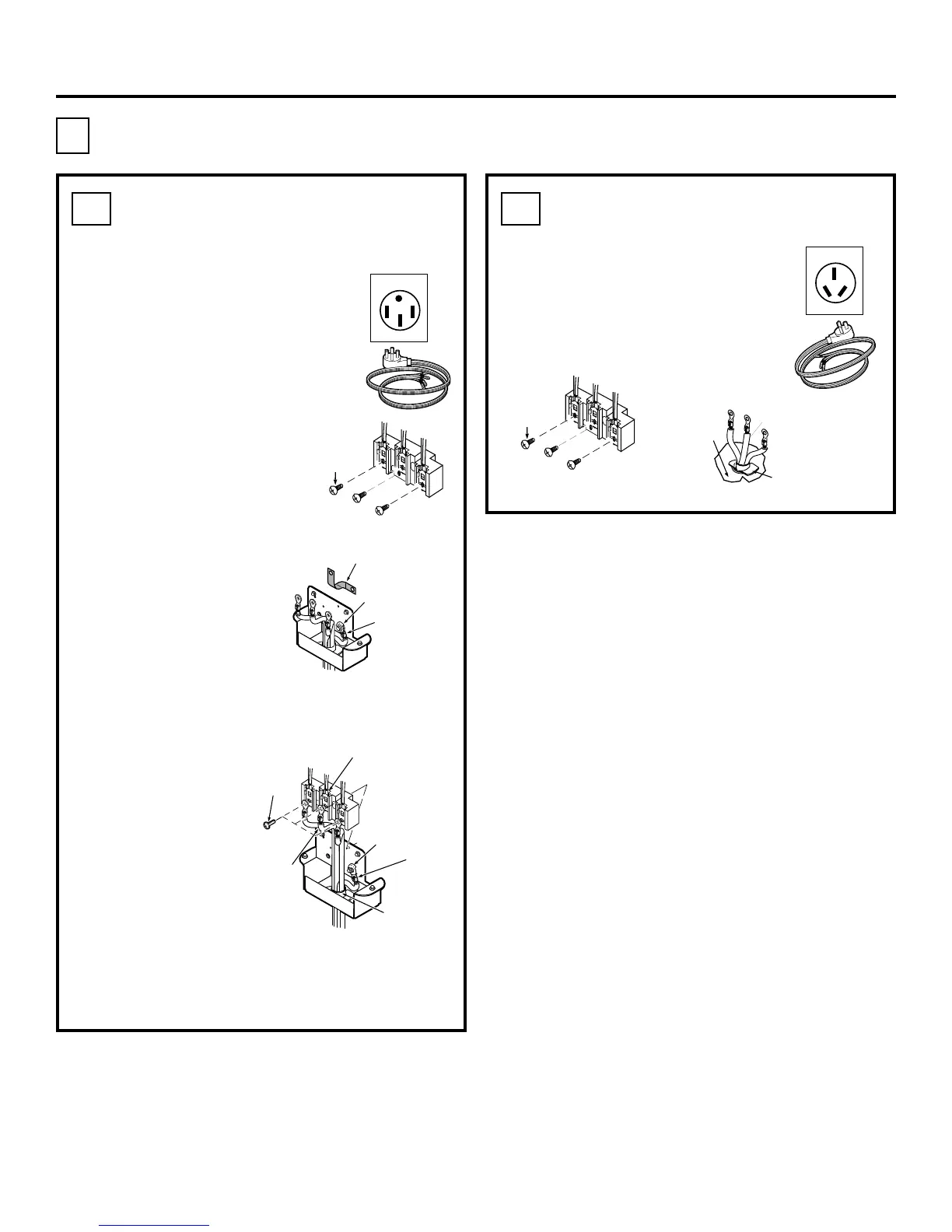

NOTE: For installations where
grounding through the neutral
conductor is prohibited.
Follow instructions below
if your cord is 4-wire:
a. Remove the screws
on the terminal block.
Do not remove
terminal block.
b. Remove the green
ground screw.
Then remove the
ground strap and
discard it.
c. Attach the green
or bare wire below
the terminal block
with the green
ground screw
and washer that
were removed
earlier.
d. Connect the red
and black wires
to the outisde
terminals. The
white wire must be
connected to the
center terminal.
Remove
3 screws
Remove
3 screws
50 Amp 4 Wire
50 Amp 4-Wire
Follow instructions below if your
cord is 3-wire:
C7
The power cord center wire
must be connected to middle
terminal on block. Attach
remaining wires securely.
Do not remove ground strap.
50 Amp 3 Wire
50 Amp 3-Wire
Remove
3 screws
Black
White
Red
Remove
3 screws
Black
White
Red
Connection
Plate
Strain
Relief
Clamp
3 wire
cord kit
Connection
Plate
Strain
Relief
Clamp
3-Wire
Cord Kit
Remove and Discard
Ground Strap
Terminal Block
Ground Wire
Reuse Ground
Washer and
Ground Screw
Strain
Relief
Clamp
Ground
Wire
3 Screws
Black
White
Red
Grounded
Neutral
Terminal
Center
Wire
(white)
Ground Screw
and Washer
