9
Adjacent
Cabinet
FLOOR–WOOD
FLOOR–CONCRETE
Bracket
Side
Rear
Leveling Leg
Wall

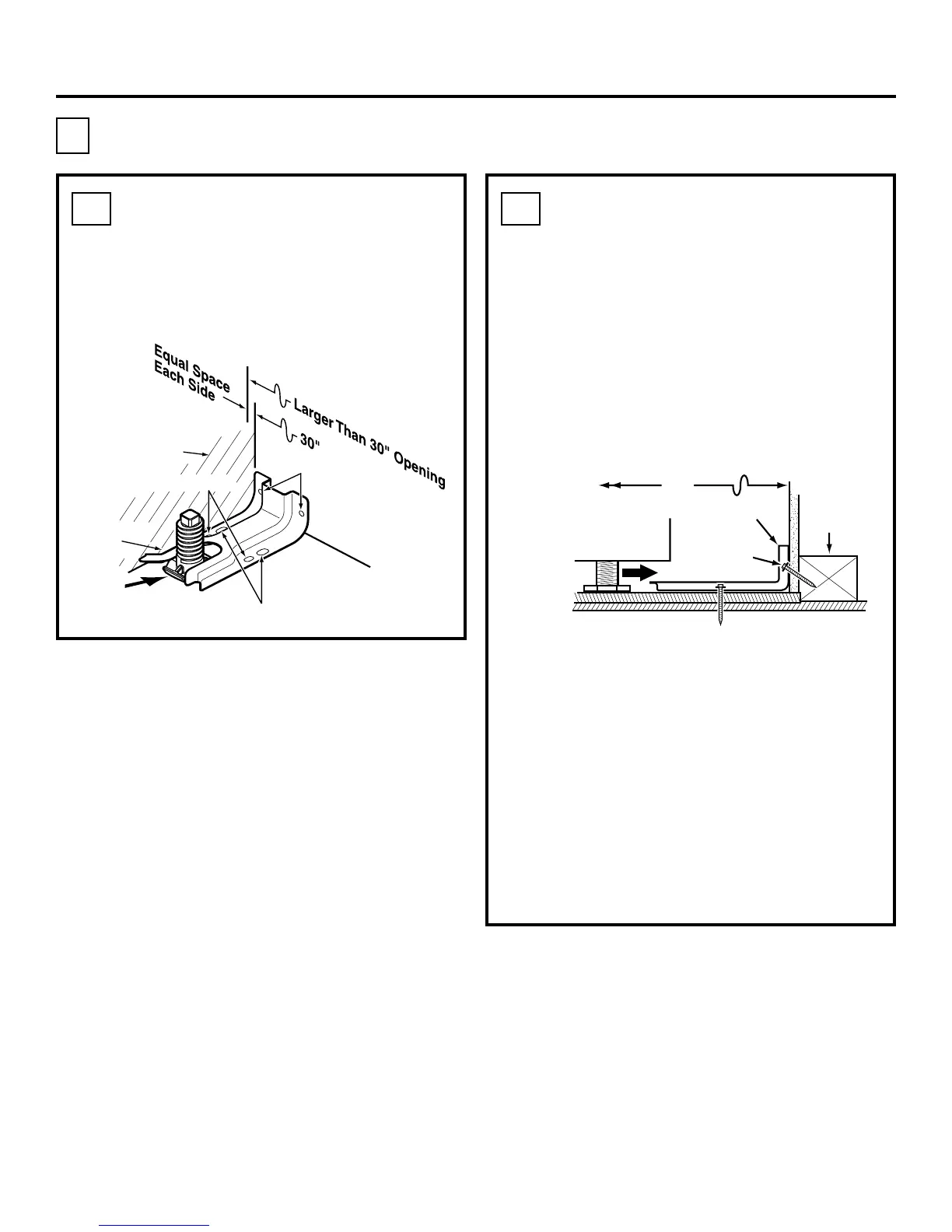

Installation Instructions
Installing the Anti-Tip Bracket
D
FIG. 1
Locating the Bracket
D1
a. Decide whether the bracket will be
installed on the right or left side of the
range opening.
b. Place the bracket as shown in Fig. 1.
FIG. 2
Installing the Bracket in
Wood or Concrete
D2
INSTALLATION—WOOD CONSTRUCTIONS
a. Locate the centers of the 4 holes identified
in Fig. 1 as Floor–Wood and Wall.
b. Drill a 1/8” pilot hole through the
pre-marked areas. Note the angle of
the wall screw in Fig. 2.
c. Mount the Anti-Tip bracket with the
4 screws provided.
INSTALLATION—CONCRETE
CONSTRUCTIONS
a. For concrete installation, you will need two
1/4” x 1-1/2” lag screws and two sleeve
anchors.
b. Locate the center of the 4 holes identified
in Fig. 1 as Floor–Concrete and Wall. Drill
the recommended size holes in each.
c.
Install the sleeve anchors into the predrilled
concrete holes and install the lag and wall
screws through the Anti-Tip bracket. Make
sure the screws are securely tightened.
To Front Edge
of Countertop
Bracket
Wall Plate
Screw Must
Enter Wood
or Metal
25”
To Next Page
