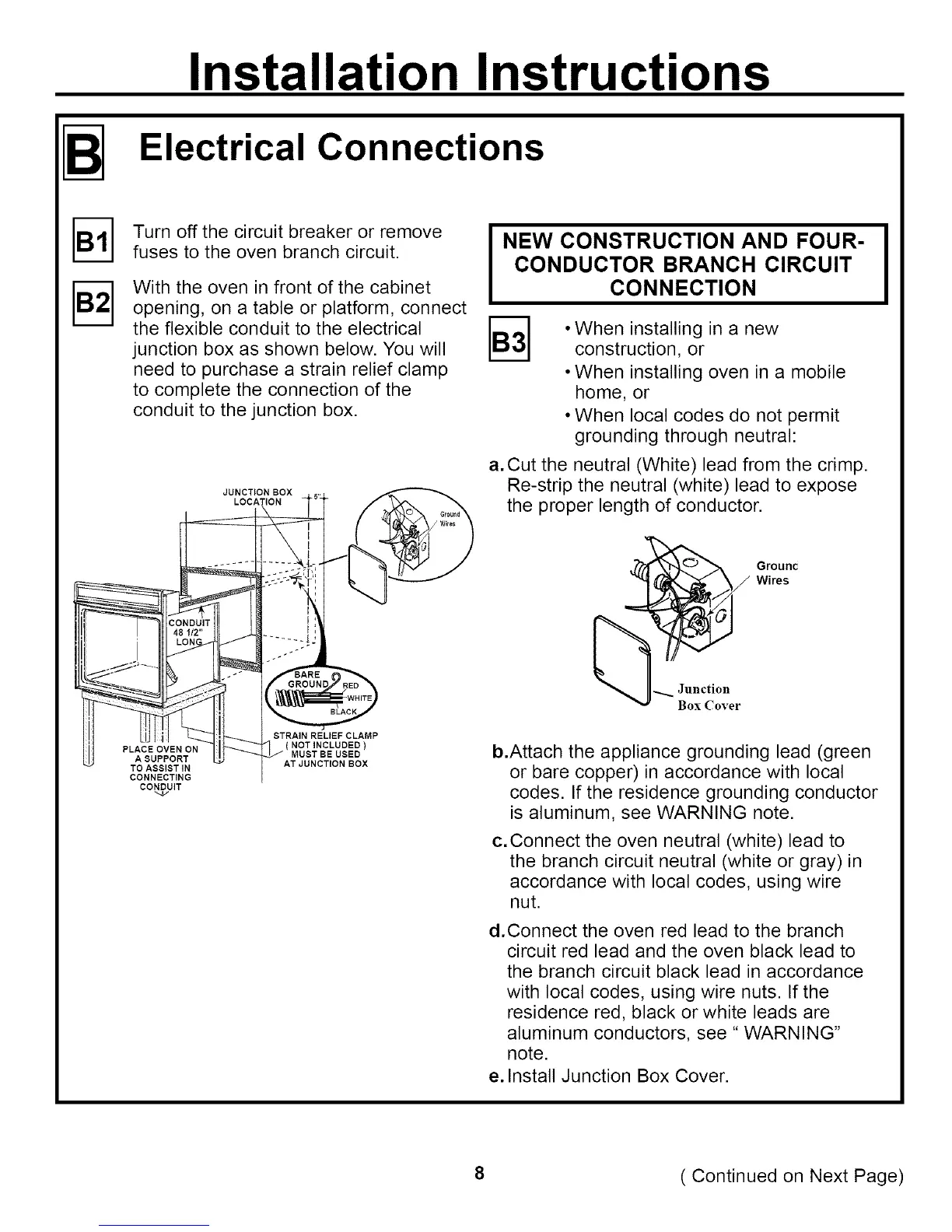

Installation Instructions
Turn off the circuit breaker or remove
fuses to the oven branch circuit.
With the oven in front of the cabinet
opening, on a table or platform, connect
the flexible conduit to the electrical
junction box as shown below. You will
need to purchase a strain relief clamp
to complete the connection of the
conduit to the junction box.
JUNCTION BOX
NC
PLACE OVEN ON
A SUPPORT
TO ASSISTIN
CONNECTING
CONDUIT
STRAIN RELIEF CLAMP
( NOT INCLUDED )
MUST BE USED
AT JUNCTION BOX
NEW CONSTRUCTION AND FOUR-
CONDUCTOR BRANCH CIRCUIT
CONNECTION
I'_ • When installing in a new
construction, or
• When installing oven in a mobile
home, or
• When local codes do not permit
grounding through neutral:
a.Cut the neutral (White) lead from the crimp.
Re-strip the neutral (white) lead to expose
the proper length of conductor.
Grounc
/ Wires
Junction
Box Cover
b.Attach the appliance grounding lead (green
or bare copper) in accordance with local
codes. If the residence grounding conductor
is aluminum, see WARNING note.
c.Connect the oven neutral (white)lead to
the branch circuit neutral (white or gray) in
accordance with local codes, using wire
nut.
d.Connect the oven red lead to the branch
circuit red lead and the oven black lead to
the branch circuit black lead in accordance
with local codes, using wire nuts. If the
residence red, black or white leads are
aluminum conductors, see "WARNING"
note.
e. Install Junction Box Cover.
8 ( Continued on Next Page)
