Installation Instructions

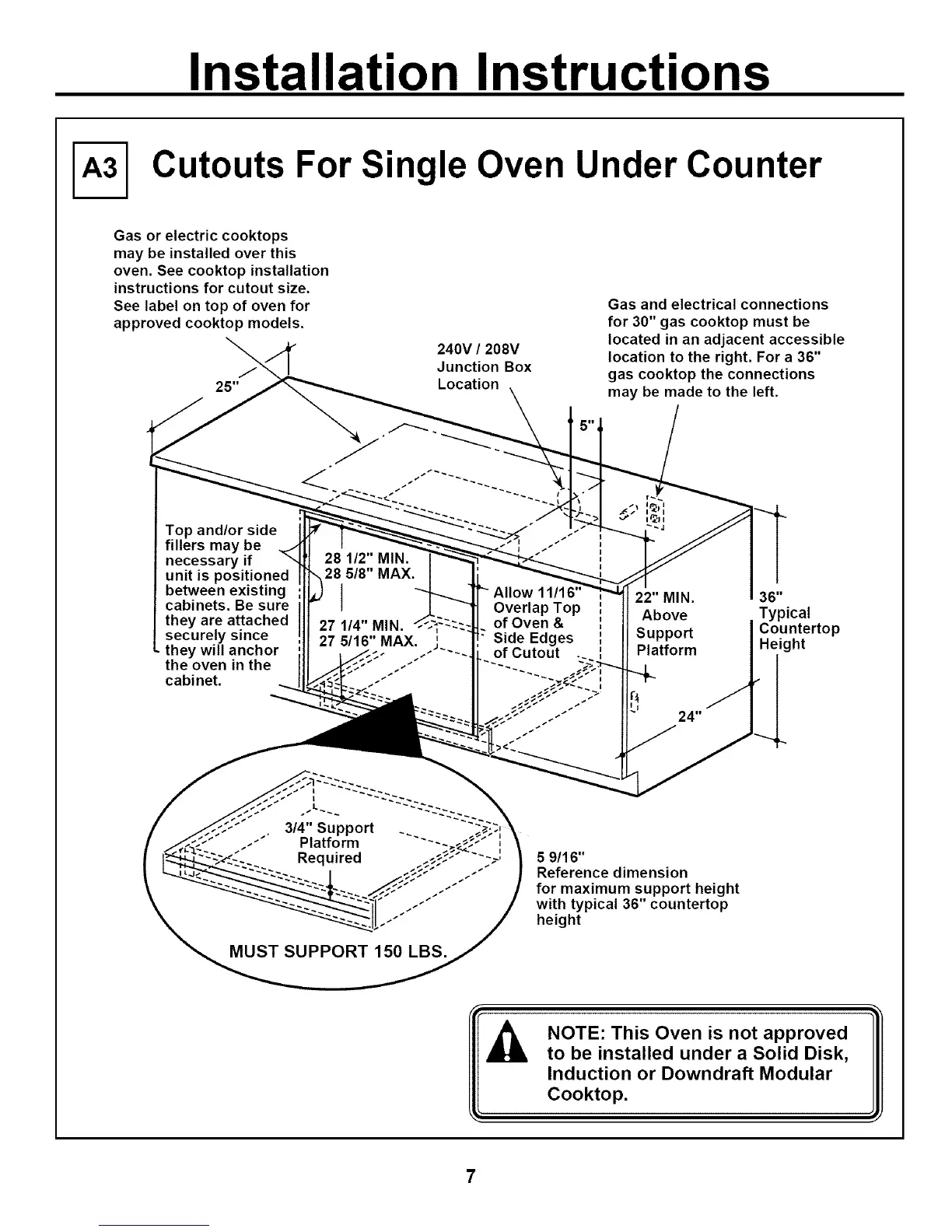

Cutouts For Single Oven Under Counter
Gas or electric cooktops
may be installed over this
oven. See cooktop installation
instructions for cutout size.
See label on top of oven for
approved cooktop models.
\
25 '°
Top and/or side
fillers may be
necessary if
unit is positioned
between existing
cabinets. Be sure
they are attached
securely since
they will anchor
the oven in the
cabinet.
28 1/2" MIN.
28 5/8" MAX.
I
27 1/4" MIN.
27 5/16" MAX.._
4
S #
240V / 208V
Junction Box
Location
Overlap Top
of Oven &
Side Edges
of Cutout
Gas and electrical connections
for 30" gas cooktop must be
located in an adjacent accessible
location to the right. For a 36"
gas cooktop the connections
may be made to the left.
22" MIN.
Above
Support
Platform
fj
24"
36"
Typical
Countertop
Height
t
3/4" Support
Platform
Required
MUST SUPPORT 150 LBS.
5 9/16"
Reference dimension
for maximum support height
with typical 36" countertop
height
NOTE: This Oven is not approved
to be installed under a Solid Disk,
Induction or Downdraft Modular
Cooktop.
