lation I
for 27"(68.6cm)

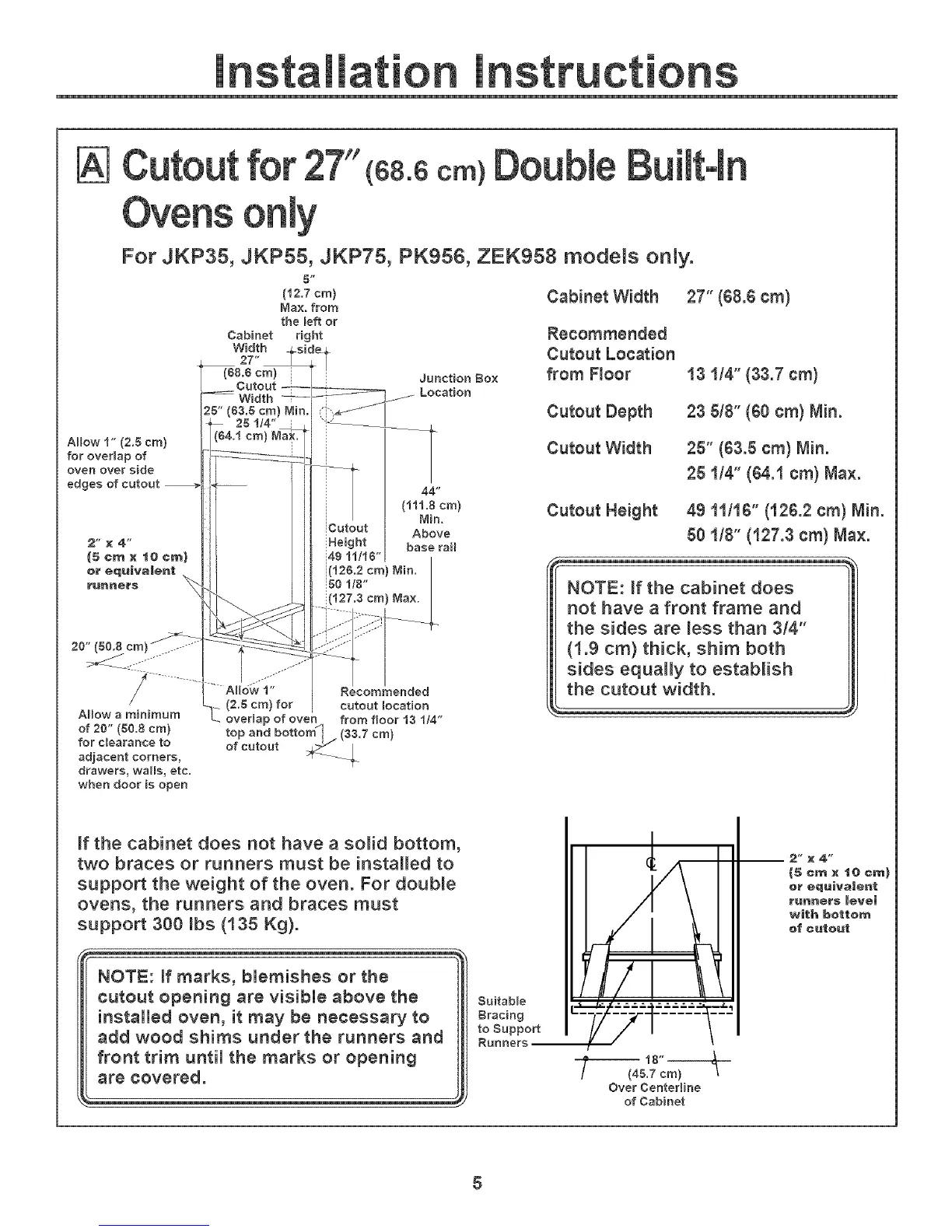

For JKP35, JKP55, JKP75, PK956, ZEK958 models only.
AHow I" (2.5 era)
for oveHap of
oven over side
edges of
20-(s0.8
f-
i-
s o
Al[d_v 1"
/ (2.5 era) for
AHow a minimum overlap of oven
of 20" (80.8 era) to_
for clearance to of cutout
adjacent corners,
drawers, walls, etc.
when door is open
i Junction Box
__._ Location
(111.8 cm)
Min.
icut°ut Above
iHeight base rai_
i4911/16"
[(126.2 cm) Mira
]50 1/8"
i(127.3 cm) Max.
Recommended
cutout location
from floor 13 114"
(33.7 era)
Cabinet Width 27" (68.6 erR)
Recommended
Cutout Location
from Floor 13 114" (33.7 erR)
Cutout Depth 23 5/8" (60 erR) Min.
Cutout Width
25" (63.5 erR) Min.
25 1/4" (64.t erR) Max.
Cutout Height 49 11/t6" (126.2 erR) Min.
50 t/8" (127.3 erR) Max.
NOTE: If the cabinet does
not have a front frame and
the sides are less than 3/4"
(1.9 cm) thick, shim both
sides equally to establish
the cutout width.
If the cabinet does not have a solid bottom,
two braces or runners must be installed to
support the weight of the oven. For double
ovens, the runners and braces must
support 300 tbs (135 Kg).
NOTE: If marks, blemishes or the
cutout opening are visible above the
installed oven, it may be necessary to
add wood shims under the runners and
front trim until the marks or opening
are covered.
Suitable
Bracing
to Support
18" _*
(45.7 era)
Over CenteHine
of Cabinet
2"X4"
{ScmxlOcm)
oft oquiva|ent
runnorrs level
with bottom
of cutout
5
