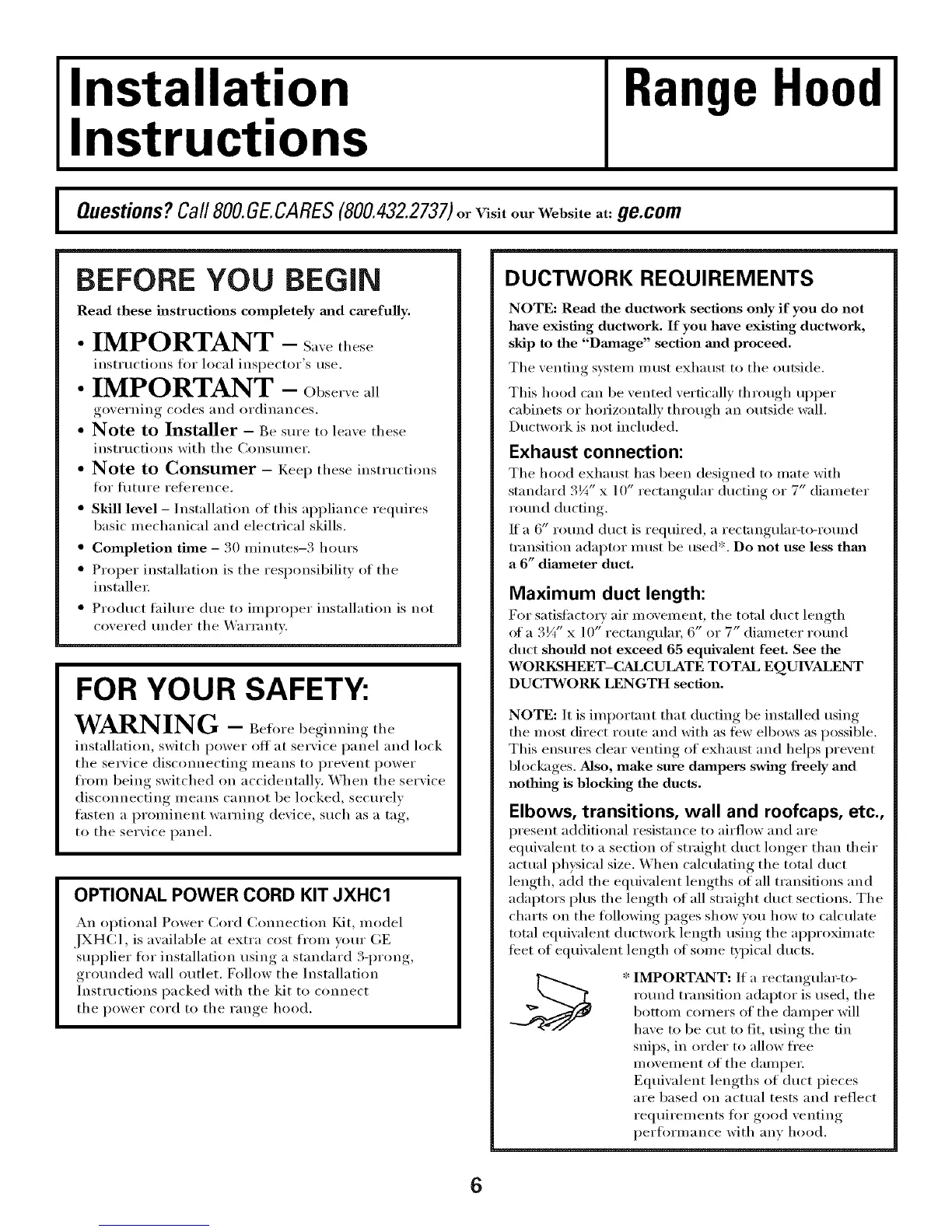

Installation
Instructions
RangeHood
Questions? Ca//800.GE.CARES(800.432.2737)orVisitour Website at: ge.com I
BEFORE YOU BEGIN
Read these instructions completely mid carefully,
• IMPORTANT - S.,ethese
instructions for local inspector's use.
• IMPORTANT - Obse,,'e.U
governing codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with tile Consumer.
° Note to Consumer - KeeI)these instructions
tot flmu'e reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time - 30 minutes-3 horn's
° Proper installation is tile responsibility of tile
installe_:
° Product tailure due to improper installation is not
covered trader tile Warranm
FOR YOUR SAFETY:
WARNING - Before be ,inning tile
g
installation, switch power off at service panel and lock
tile service disconnecting means to prevent power
fl'om being switched on accidentally. When tile service
disconnecting means cannot be locked, secm'elv
tasten a prominent warning device, such as a tag,
to the service panel.
OPTIONAL POWER CORD KIT JXHC1
An optional Power Cord Connection Kit, model
JXHC1, is available at extra cost from your GE
supplier fin" installation using a standard 3-prong,
grounded wall outlet. Follow the h_stallation
Instructions packed with tile kit to connect
the power cord to the range hood.
DUCTWORK REQUIREMENTS
NOTE: Read the ductwork sections only if you do not
have existing ductwork. If you have existing ductwork,
skip to the "Damage" section mid proceed.
Tile venting system m ust exhaust to tile outside.
This hood can be xented xerticall)through upper
cabinets or horizoi_tallv throu,d/an outside wall.
Ductwork is not included.
Exhaust connection:
Tile hood exhaust has been designed to mate with
standard 3¼" x 10" rectangular ducting or 7" diameter
round ducting.
If a 6" ro/md duct is required, a rectangula>to-round
transition adaptor must be used*. Do not use less thm_
a 6" dimneter duct.
Maximum duct length:
For satisfhctory air m ovement, tile total duct length
of a 3V(' x 10" rectangular, 6" or 7" diameter ro/md
duct should not exceed 65 equivaJent feet. See the
WORKSHEET-CALCULATE TOTAL EQUIVALENT
DUCTWORK LENGTH section.
NOTE: It is important that ducting be installed using
tile most direct route and with as few elbo_vs as possible.
This ensm'es clear venting of exhaust and helps prevent
blockages. Also, make sure dmnpers swing freely and
nothing is blocking the ducts.
Elbows, transitions, wall and roofcaps, etc.,
present additional resist;race to airflow and are
equivalent to a section of straight duct longer than their
actual physical size. When calculating the total duct
length, add the equiwdent lengths of all transitions and
adaptors plus the length of all straight duct sections. The
charts on tile following pages show you how to calculate
total equivalent ductwork length using tile approximate
feet of equivalent length of some typical ducts.
* IMPORTANT: If a rectangula>to-
to/rod transition adaptor is used, tile
bottom corners of tile damper will
haxe to be cut to fit, using tile fin
snips, in order to allow fl'ee
movement of tile dampeL
Equiwdent lengths of duct pieces
are based on actual tests and reflect
requirements fl)r good venting
peril)finance with anv hood.
6
