Cooktops/Downdraft Unit JVB67

NOTE: Before you begin: Measure and mark Dimension 3 to ensure that adequate flat countertop

surface is available.

■ Identify the cutout illustration for the cooktop

model you are installing with this downdraft vent.

■–Draw lines on the countertop to follow as a cutting

guide.

■–Make sure sides of the opening are parallel and

rear and front cuts are exactly perpendicular to sides.

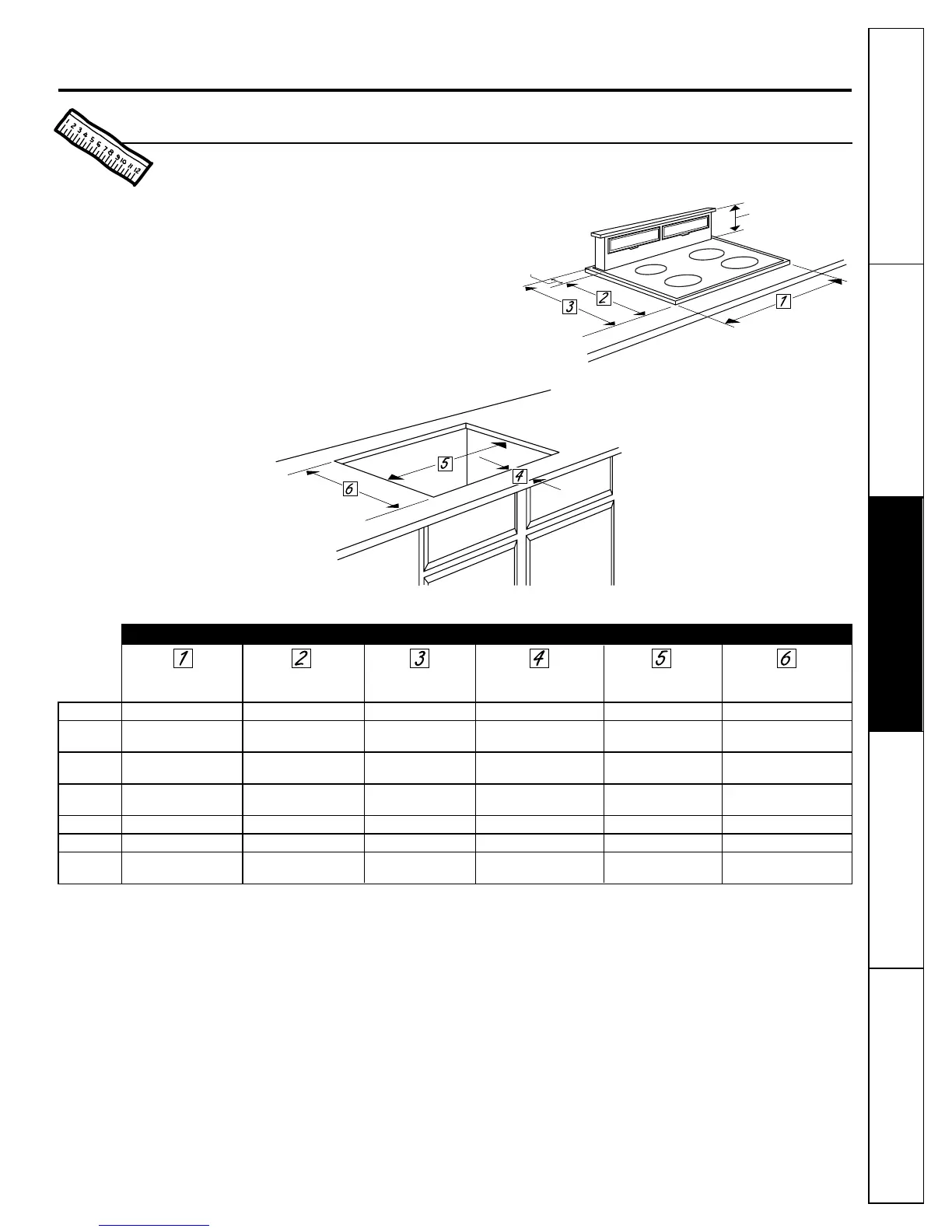

Planning Installation 36” Electric & Gas Cooktops with Downdraft Vents Preparing Cutout

Cooktop Surface Surface Depth Minimum Setback Combined Cutout Combined Cutout

Model No.

Overall Width Overall Depth with Downdraft Cutout to Front Edge Width Depth

JP626 35-1/2″ 21″ 23-1/8″ 2-1/2″ 33-7/8″ 21-15/16″

JP960 36″ 20-3/8″ 22-1/2″ 2-1/2″ 33-7/8″ 22-1/8″

JP968

JP960S 36-1/8″ 21″ 23-1/8″ 2-1/2″ 33-7/8″ 22-1/16″

JP968S

JGP628 36″ 21″ 23-1/8″ 2-1/2″ 33-7/8″ 22-1/16″

JGP963

JGP636 36″ 21″ 23-1/8″ 3-1/4″ 34″ 21-15/16″

JGP962 36″ 20-7/16″ 22-9/16″ 2-1/2″ 33-7/8″ 21-13/16″

JGP962S 36-1/8″ 21-1/16″ 23-3/16″ 2-1/2″ 33-7/8″ 22-1/8″

JGP963S

⁄8″

⁄2″
