Operating Instructions

Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support

Installation of the downdraft system.

Read these instructions completely and carefully.

″

Induction Cooktops with Downdraft Unit JVB37

″

Induction Cooktops with Downdraft Unit JVB67

NOTE: Before you begin: Measure and mark 22

⁄

″

(Dimension 3) to ensure that adequate flat

countertop surface is available.

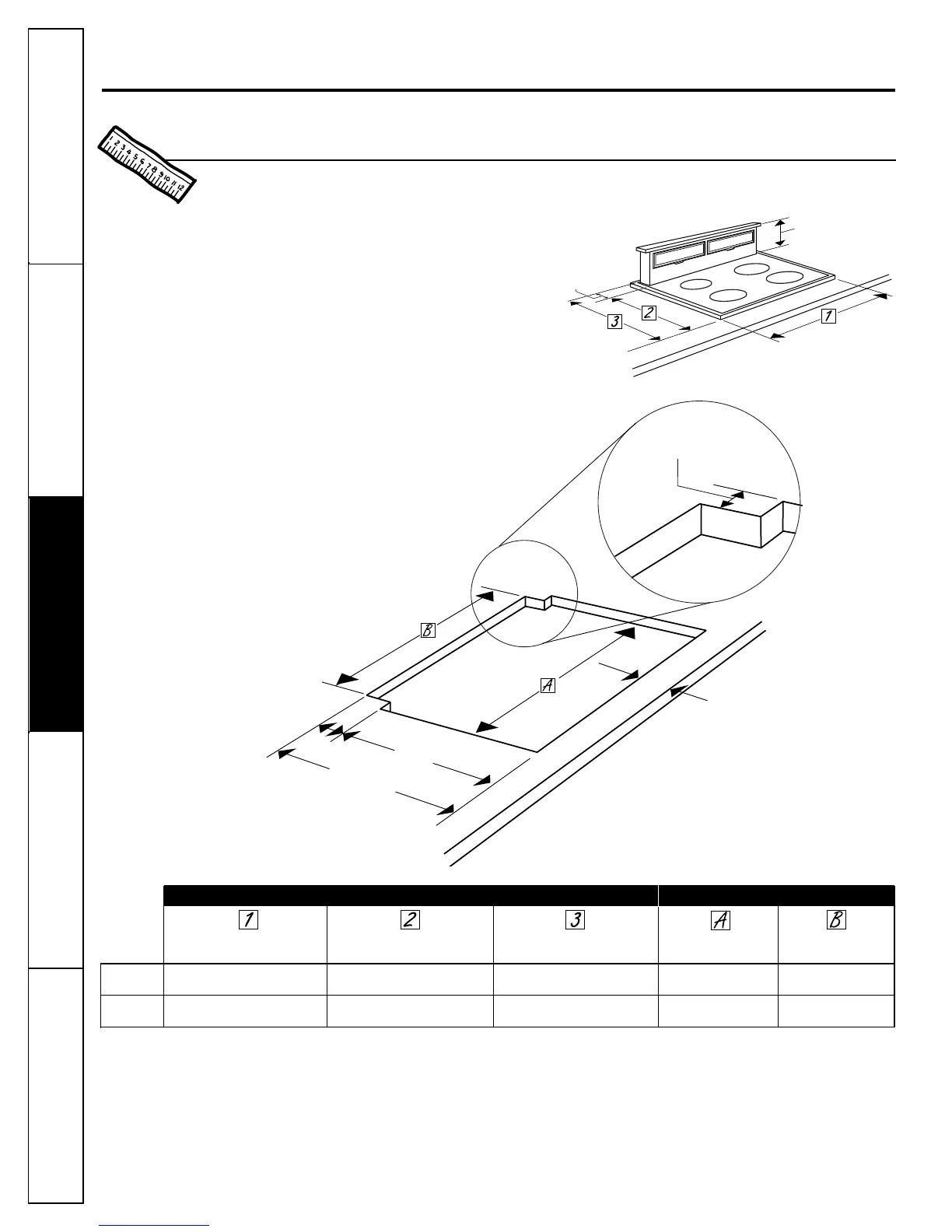

■ Identify the cutout illustration for the cooktop

model you are installing with this downdraft vent.

■–Draw lines on the countertop to follow as a

cutting guide.

■–Make sure sides of the opening are parallel and

rear and front cuts are exactly perpendicular to sides.

Planning Installation 30” Electric & Gas Cooktops with Downdraft Vents Preparing Cutout

Cooktop Surface Cooktop Surface Surface Depth Cooktop Cutout Vent Cutout

Model No.

Overall Width Overall Depth with Downdraft Width Width

JP392 30″ 20-3/4″ 22-7/8″ 29-1/8″ 28-1/2″

JP393

JP692 35-1/2″ 20-3/4″ 22-7/8″ 34-5/8″ 34″

JP693

5/16″

2″ Minimum

setback to front

edge of countertop

⁄4″

⁄16″

⁄8″

⁄2″
