Installation Instructions
MOUNTING SPACE
NOTES:
• The space between the cabinets must be 30″ wide
and free of obstructions.
• If the space between the cabinets is greater than
30″, a Filler Panel Kit may be used to fill in the gap
between the microwave oven and the cabinets.
Your Owner’s Manual contains the kit number for
your model.
• This microwave oven is for installation over ranges
up to 36″ wide.
• If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for power
cord clearance.
•Maximumcabinetdepthaboveandbesidetheunit
is 12¾″.
• For models setup in Recirc Exhaust: Do not allow
cabinetry or other objects to block the airflow of the
vent.
• The product should not be installed over any cooktop
or range with a combined BTU greater than 66,000
BTU.

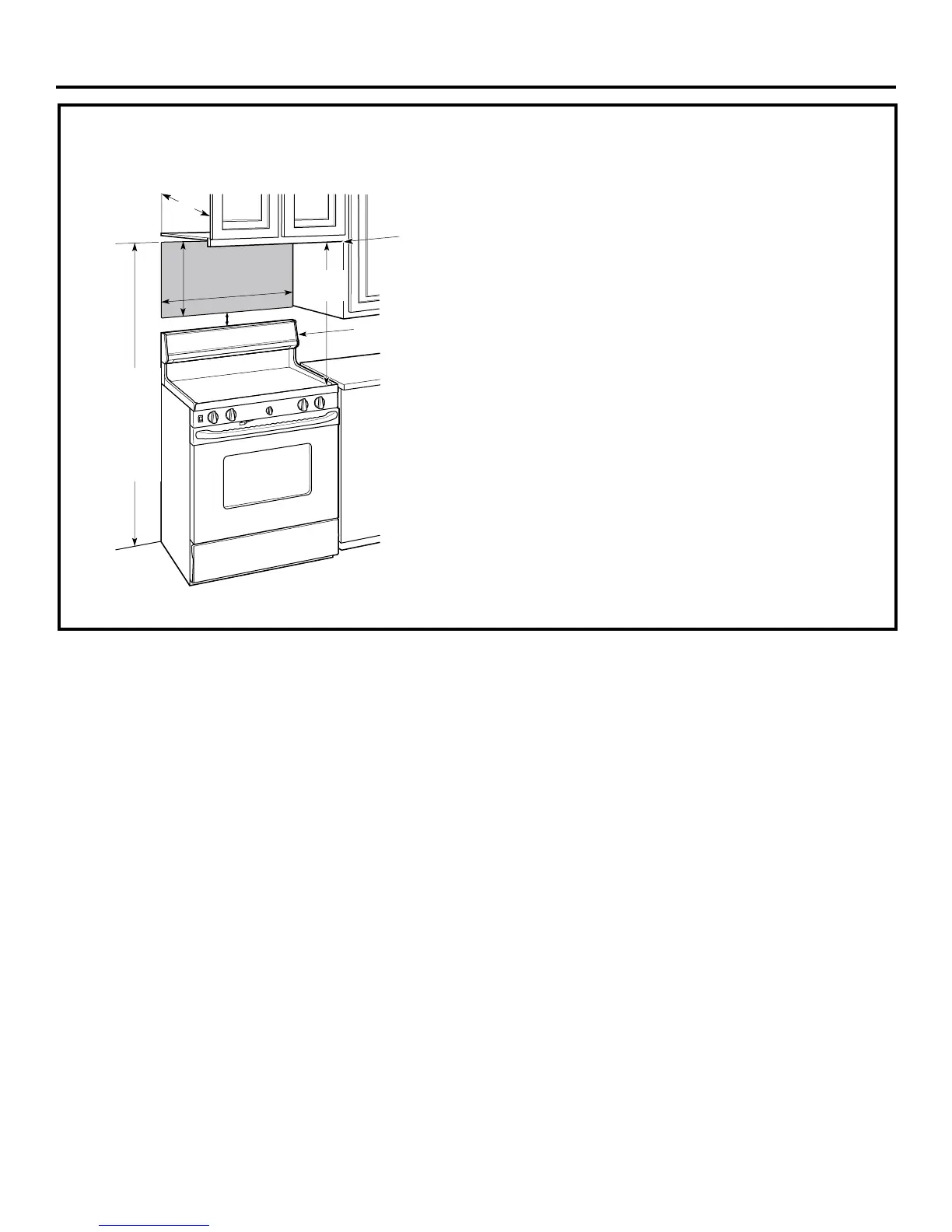

Backsplash
66″ or
more from
the floor
to the
top of the
microwave
oven
30″
2″
30″
min.
16-½″
Bottom edge of
cabinet needs to
be 30″ or more
from the cooking
surface
12¾″
max.
1” = 2.5 cm; 1’ = 0.3 m
