AFTER: Fan Blade
Openings Facing
Forward
3
2
4

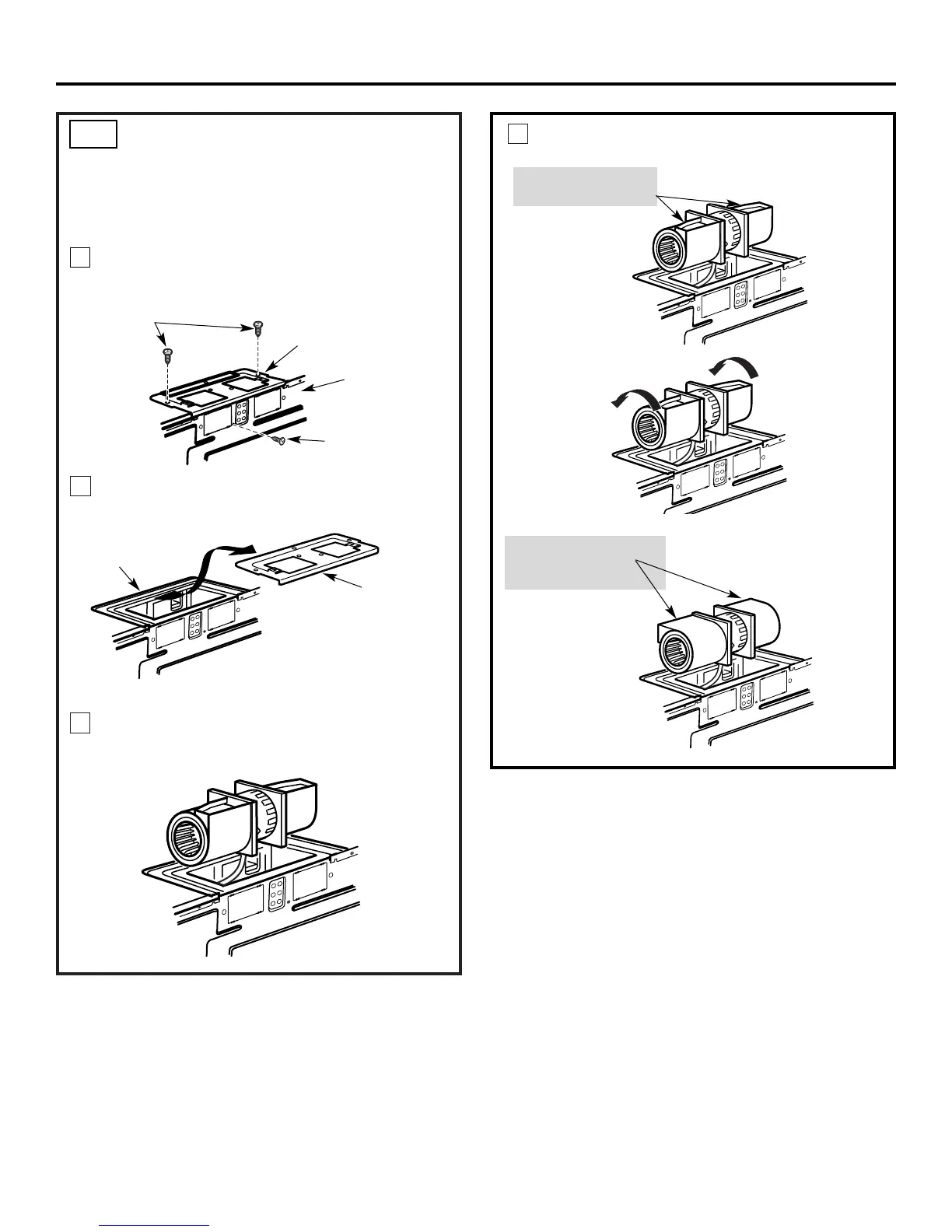

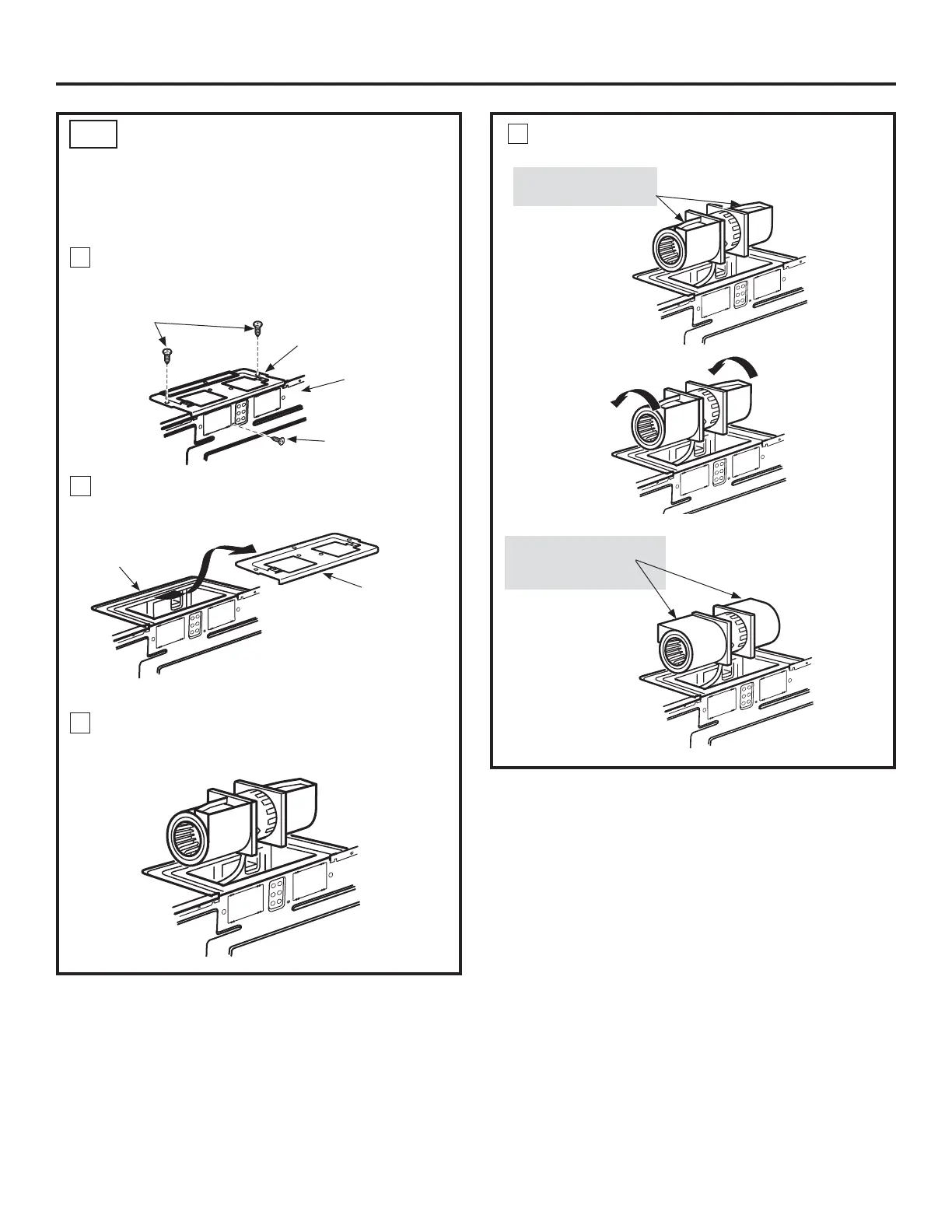

ADAPTING BLOWER
FOR RECIRCULATION
C3.
20
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll
Slide the blower plate from under its retaining
flange and lift it off.
Remove and save screws that hold blower plate and
blower unit to the oven.
Installation Instructions
BEFORE: Fan Blade
Openings Facing Up
1
Blower Plate
Retaining
Flange
Blower Plate
Back of Oven
Blower Plate Screws
Blower Motor Screw
To Next Page
