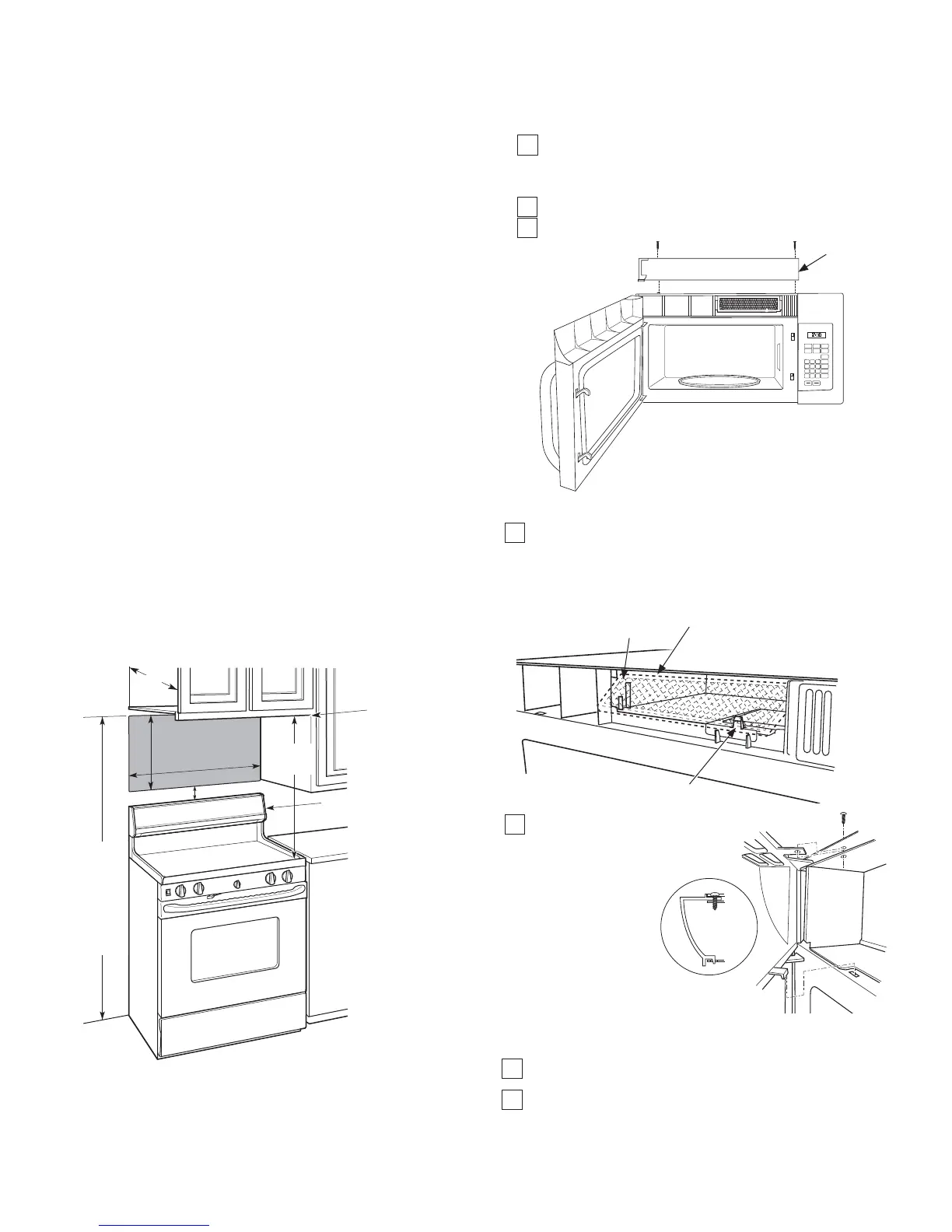

THE CHARCOAL FILTER
Remove 2 screws on top of microwave oven, just
above the grille panel, using a Phillips screwdriver.
If two screws are not accessible, see section A6.
Open the door.
Remove the grille.
2
1
3
Popcorn
Convenience Cooking
Express Cook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30 Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Grille
Filter (dashed to show
details of groves)
Bottom Tab
Grooves in
Microwave for
Filter on Each Side
Insert the top of the filter up and into the grooves on
both sides of the inside of the top opening. Once you
have cleared the bottom tab, push the bottom of the
filter in until it rests in place behind the tab.
4
Replace the grille
by inserting the top
grill flange into the
slots in the case as
shown.
5
Grille
Grille
Replace the 2 top screws.
Close the door.
6
7
MOUNTING SPACE
Backsplash
66s or
more from
the floor
to the
top of the
microwave
oven
30s
2s
30s
min.
16-½s
Bottom edge of
cabinet needs to
be 30s or more
from the cooking
surface
12¾s
max.
Filler Panel Kits
-;:+³:KLWH
-;%/³%ODFk
When replacing a 36” range hood, filler
panel kits fill in the additional width to
provide a custom built-in appearance.
For installation between cabinets only; not
for end-of-cabinet installation. Each kit
contains two 3” wide filler panels.
Charcoal Filter Kits
JX81L
³5HFLUFXODWLQJ
C
KDUFRDO)LOWHU Kit
Filter kits are used when the oven cannot
be vented to the outside.
Maximum cabinet depth above and beside
the unit is 12 3/4”.
Note: This product should not be
installed over any cooktop range with
a combined BTU greater than 66,000
BTUs.
