Bottom Tab

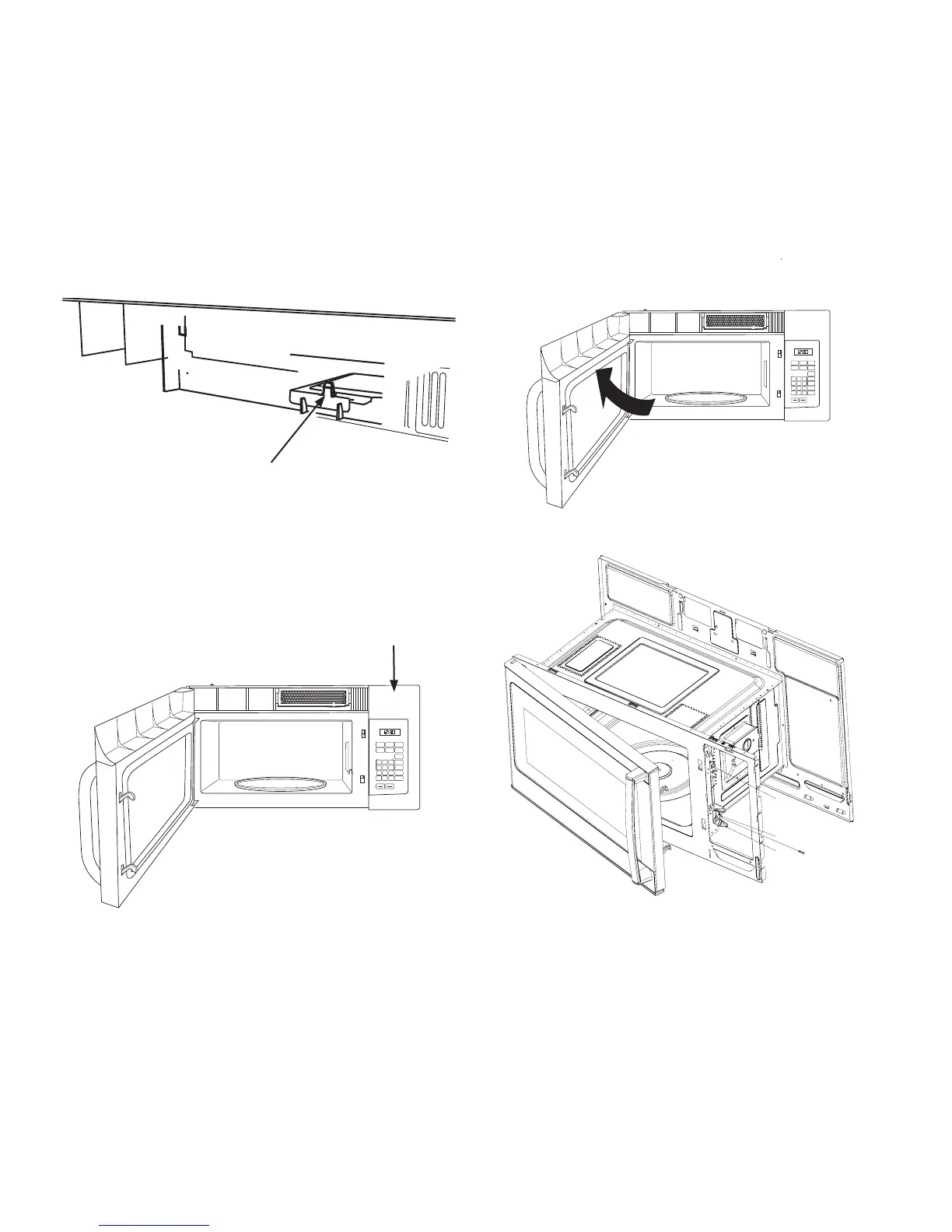

Cavity Lamp - Replacement
$IWHUUHPRYLQJWKHFKDUFRDO¿OWHULILQVWDOOHG
depress the bottom plastic tab and remove
the light cover to access the light bulb.
Replace the bulb with part number
WB25X10029.
Popcorn
Convenience Cooking
Express Cook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30 Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Control Panel Access
To remove the control panel, remove a single
Phillips screw located behind the top of the
panel; visible through a small vent slot in
the top panel trim.
Removal of the control panel allows access to:
Control Panel
Door Switch Holder
Interlock Switches
Hood Thermostat
Bottom TCO
Access to the Magnetron, Magnetron Fan, Vent
Blower, Capacitor, Diode, and HV Capacitor
all require de-installation of the oven and the
removal of the case wrapper.
Oven Door Service
The door can be removed from the oven
after removing the top vent trim. Open the
door to a 90 degree angle to the case and
lift to release it from the hinge pins. The door
components can be replaced independently
or as an complete assembly.
Popcorn
Convenience Cooking
Express Cook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30 Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Door Switches
7KH3ULPDU\VZLWFK7RSEUHDNVOLQHSRZHUWR
the high voltage transformer when the door is
open.
7KH0RQLWRUVZLWFK0LG%RWWRPVKRUWVWKH
line to neutral in case the power relay on
the control board is closed when the door is
opened, which could result in blowing the line
fuse.
7KH6HQVLQJVZLWFK%RWWRPLQIRUPVWKHFRQ-
trol that the door is closed and the unit is ready
to microwave.
PRIMARY S/W
MONITOR S/W
DOOR SENSE S/W
