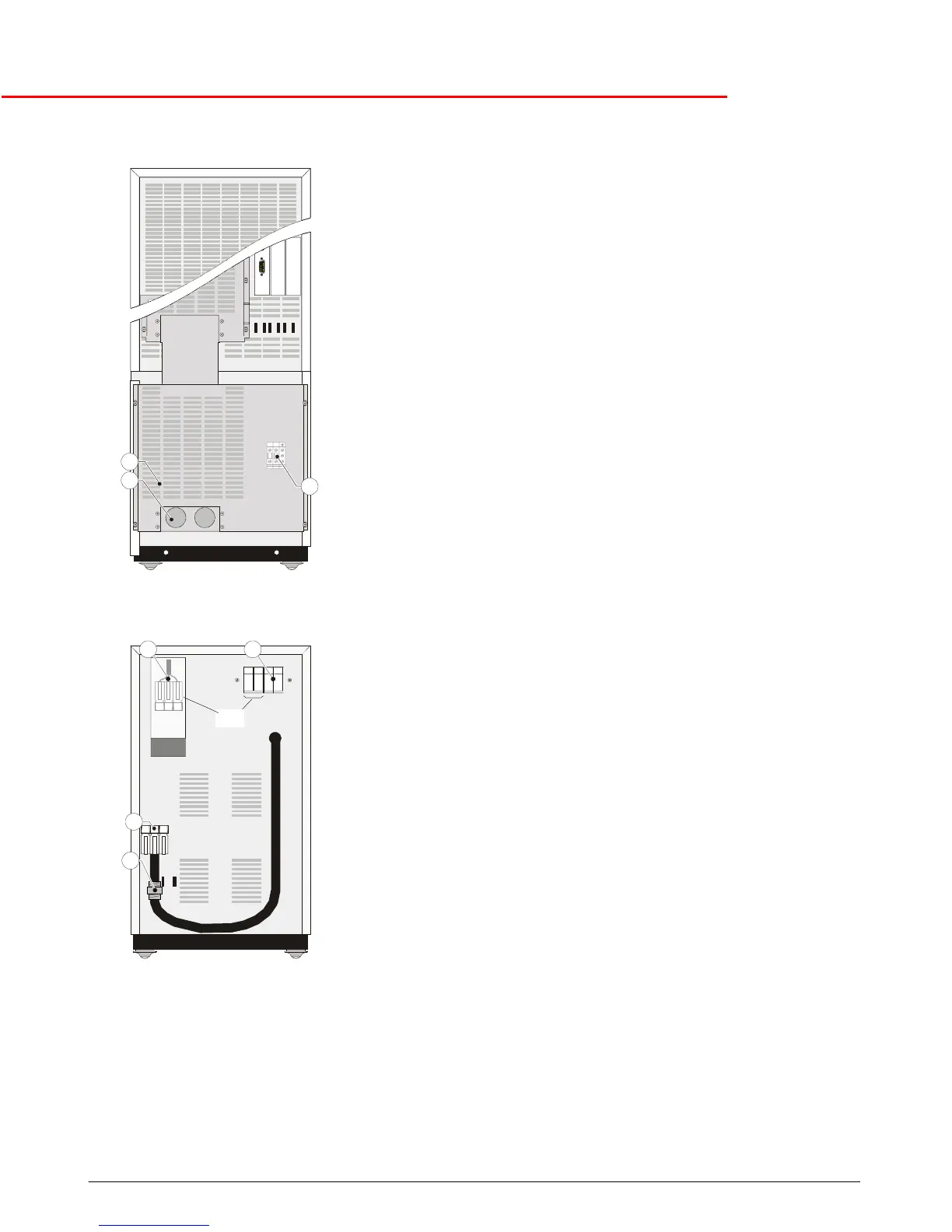

Rear panel of the step-up transformer:
11b Input terminals L, N and GND
17 Conduit box
18 Cable inlet
Rear panel of (optional) battery extension pack:
15 DC socket (14Ah only)
15a DC connector
16 Battery fuse holder(s)
7Ah: 2 fuses
14Ah: 4 fuses
19 Gland to fasten cable in conduit box of UPS
17
18
11b
15a
1615
14Ah
19
Figure 21. Rear panel battery
extension pack (optional)
Figure 20. Rear panel of the
step-up transformer
