Water components for the icemaker are located in the left side of the machine compartment. The system is
PDGHXSRIDPDQLIROG¿OWHURUE\SDVVLVRODWLRQYDOYHDQGicemaker valve.
When the icemaker calls for water, water will travel through the supply line (built into the cabinet), to the
isolation valve, to the ¿OWHUDVVHPEO\WKURXJKD0:)3¿OWHURUE\SDVVSOXJWRWKHicemaker valve, through
the icemaker supply line (also built into the cabinet), then to the icemaker.

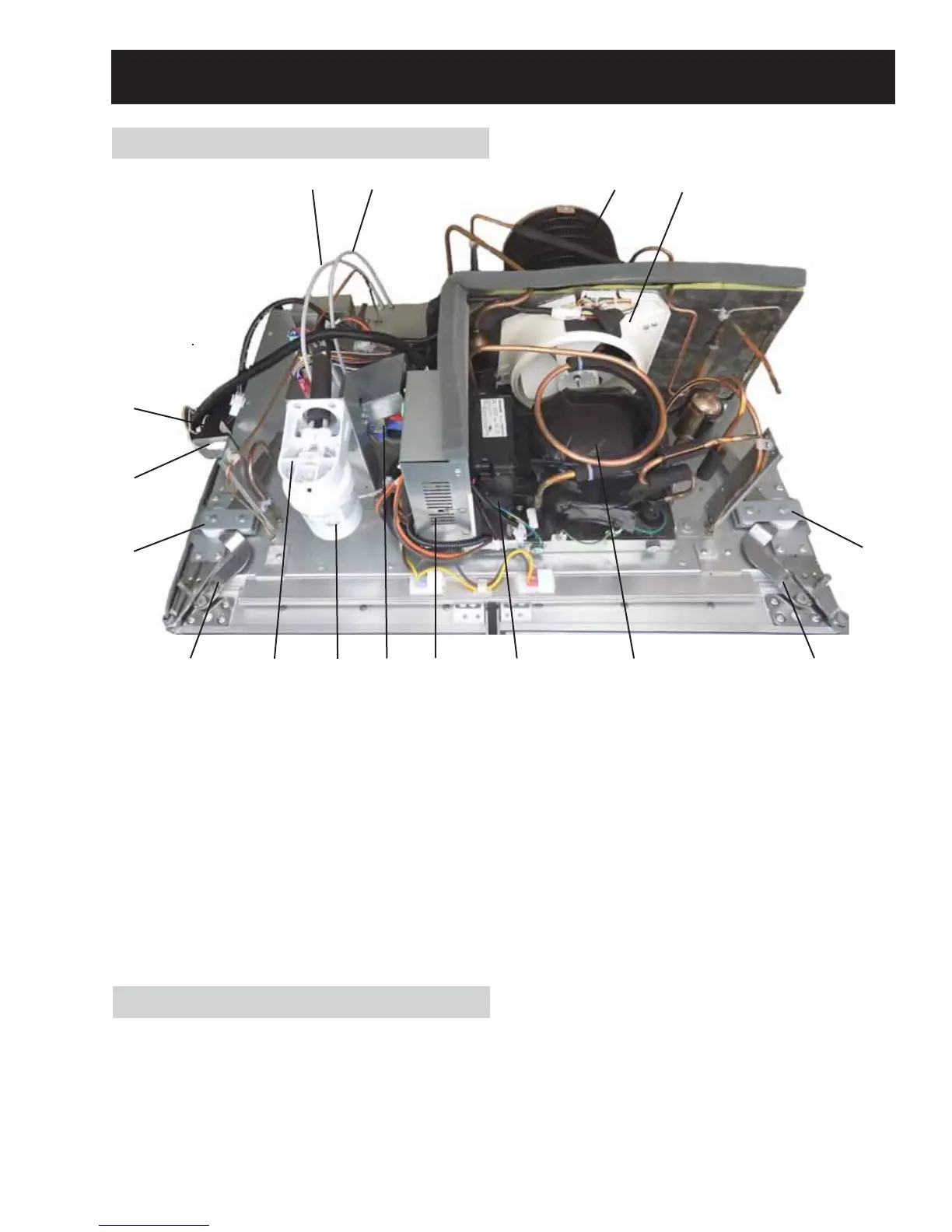

1. Fresh Food Door Closures
2. Actuator Arms
3. Ambient Sensor
4. Humidity Sensor
5. Filter Head Assembly
6. Water Filter
7. Water Valve Assembly
8. Water Supply Tube
9. Icemaker supply line
10. Main Board Enclosure
11. Inverter
12. Compressor
13. Condenser Coil
14. Condenser Fan
2 2
4
3
1
6 10 11 12
141389
7
1
5
Cabinet Top Component Locator
Water System
Machine Compartment
See the $LUÀRZDQG)DQV section for more information on the condenser fan.
