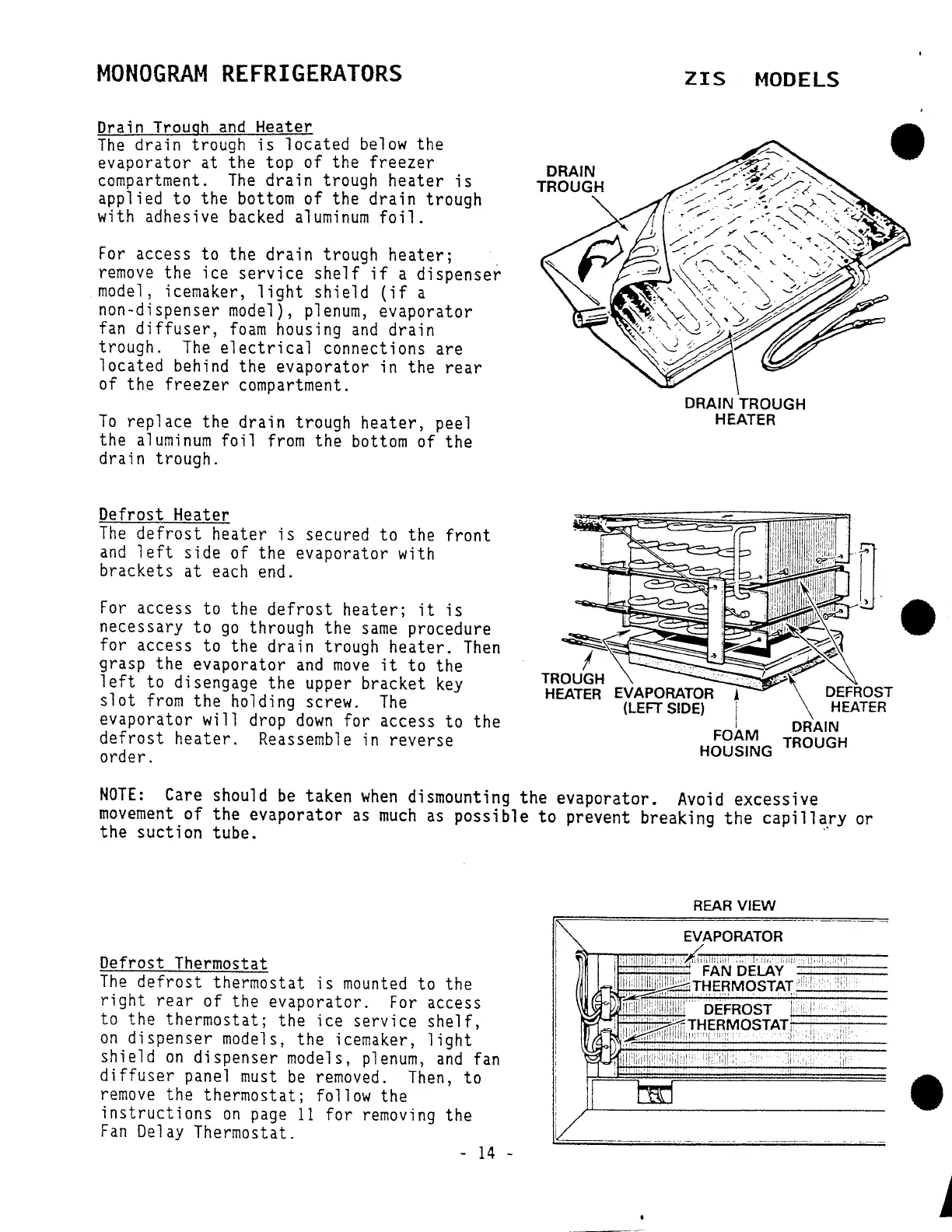

MONOGRAM
REFRIGERATORS
Drain Trough
and
Heater
The
drain trough
is
located
below
the
evaporator
at
the top
of
the
freezer
compartment.
The
drain
trough
heater
is
applied
to
the bottom
of
the
drain
trough
with adhesive backed
aluminum
foil.
For
access to the
drain
trough
heater;
.
remove
the ice
service
shelf
if
a
dispenser
model, icemaker,
light
shield
(if
a
non-dispenser model), plenum, evaporator
fan
diffuser,
foam
housing
and
drain
trough.
The
electrical
connections are
located behind the evaporator in the
rear
of the
freezer
compartment.
To
replace the
drain
trough
heater,
peel
the
aluminum
foil
from
the bottom of the
drain trough.
Defrost Heater
DRAIN
TROUGH
ZIS
MODELS
DRAIN TROUGH
HEATER
The
defrost
heater
is
secured to the
front
and
left
side of the evaporator with
brackets
at
each end.
For
access to the
defrost
heater;
it
is
necessary
to
go
through the
same
procedure
for
access to the drain trough
heater.
Then
grasp the evaporator
and
move
it
to
the
left
to disengage the upper bracket
key
slot
from
the
holding screw.
The
evaporator will drop
down
for access to the
defrost
heater.
Reassemble
in
reverse
order.
i~-,!.llllllc\~~D
TR~
,
./
HEATER
EVAPORATOR
J.
......
-\
(LEFT SIDE) I
HEATER
FOAM
DRAIN
HOUSING TROUGH
NOTE:
Care should
be
taken
when
dismounting the evaporator.
Avoid
excessive
movement
of
the evaporator
as
much
as
poss;
bl
e
to
prevent break;
ng
the
capi
11
a.ry
or
the
suction
tube.
Defrost Thermostat
The
defrost
thermostat
is
mounted
to the
right
rear
of
the evaporator.
For
access
to the thermostat; the ice service
shelf,
on
dispenser models, the icemaker,
light
shield
on
dispenser models,
plenum,
and
fan
diffuser
panel
must
be
removed.
Then,
to
remove
the thermostat; follow the
instructions
on
page
11
for
removing
the
Fan
Delay Thermostat.
-
