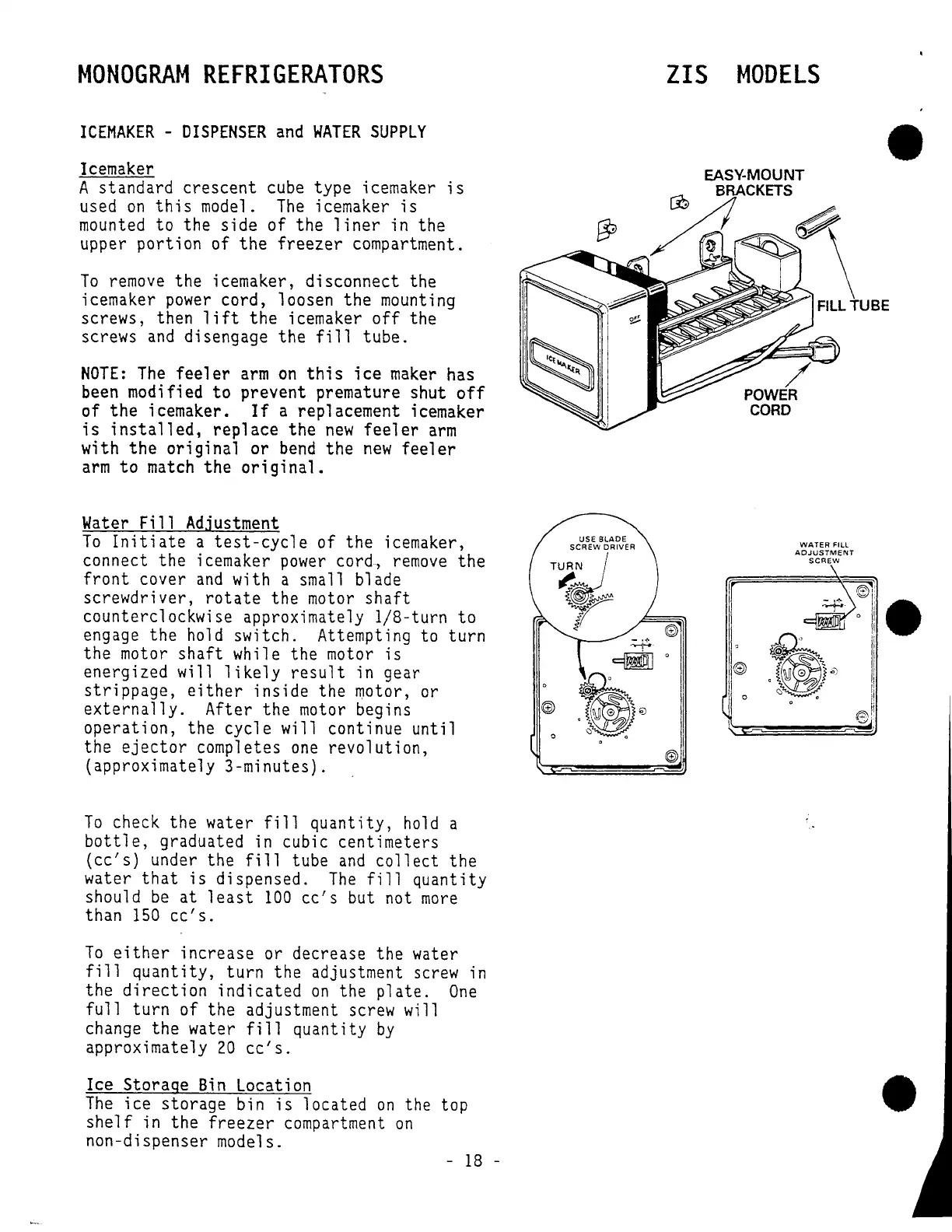

MONOGRAM
REFRIGERATORS
ICEMAKER
-
DISPENSER
and
WATER
SUPPLY
Icemaker
A standard
crescent
cube type icemaker
is
used
on
this
model.
The
icemaker
is
mounted
to
the
side
of
the
liner
in the
upper portion of
the
freezer
compartment.
To
remove
the icemaker, disconnect the
icemaker
power
cord, loosen the mounting
screws, then
lift
the
icemaker
off
the
screws
and
disengage the
fill
tube.
NOTE:
The
feeler
arm
on
this
ice
maker
has
been modified
to
prevent premature shut
off
of
the
icemaker.
If
a replacement ;cemaker
is
installed,
replace
the
new
feeler
arm
with
the
original
or
bend
the
new
feeler
arm
to
match
the
original.
Water
Fill
Adjustment
To
Initiate
a
test-cycle
of the icemaker,
connect the icemaker
power
cord,
remove
the
front
cover
and
with a small blade
screwdriver,
rotate
the motor
shaft
counterclockwise approximately 1/8-turn
to
engage the hold switch. Attempting to
turn
the motor
shaft
while the motor
is
energized will
likely
result
in gear
strippage,
either
inside
the motor, or
externally.
After the motor begins
operation,
the cycle will continue
until
the
ejector
completes
one
revolution,
(approximately 3-minutes).
To
check the water
fill
quantity,
hold a
bottle,
graduated in cubic centimeters
(cc's)
under the
fill
tube
and
collect
the
water
that
is
dispensed.
The
fill
quantity
should
be
at
least
100
cc's
but not
more
than
150
cc's.
To
either
increase or decrease the water
fill
quantity,
turn
the adjustment screw in
the
direction
indicated
on
the
plate.
One
full
turn
of the adjustment screw will
change the water
fill
quantity
by
approximately
20
cc's.
Ice Storage
Bin
Location
The
ice storage bin
is
located
on
the top
shelf
in the
freezer
compartment
on
non-dispenser models.
- 18 -
USE
BLADE
SCREW
DRIVER
T¥
o
ZIS
MODELS
•
\
FILL TUBE
o
WATER
FILL
ADJUSTMENT
SCREW
•
