1. GENERAL DRAWING

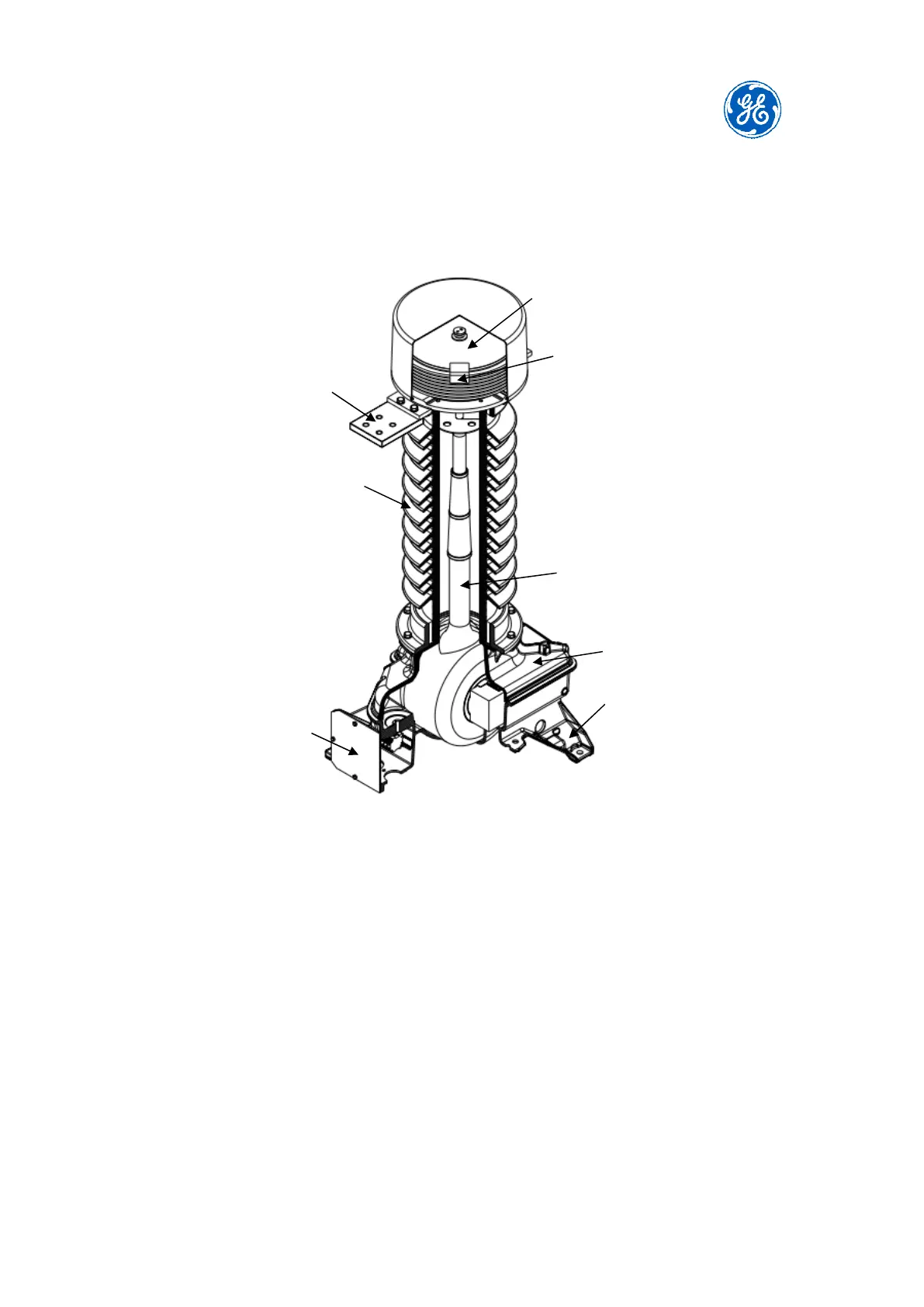

Description and characteristics of the OTEF voltage Transformers
1- High voltage terminal
2- Insulation system (paper impregnated with oil)
3- Secondary terminal box
4- Oil level indicator
5- Metallic bellow
6- Insulator: porcelain or composite
7 – Aluminum tank
8- Feet with hole for anchoring
1
2
3
4
5
6
8
7
